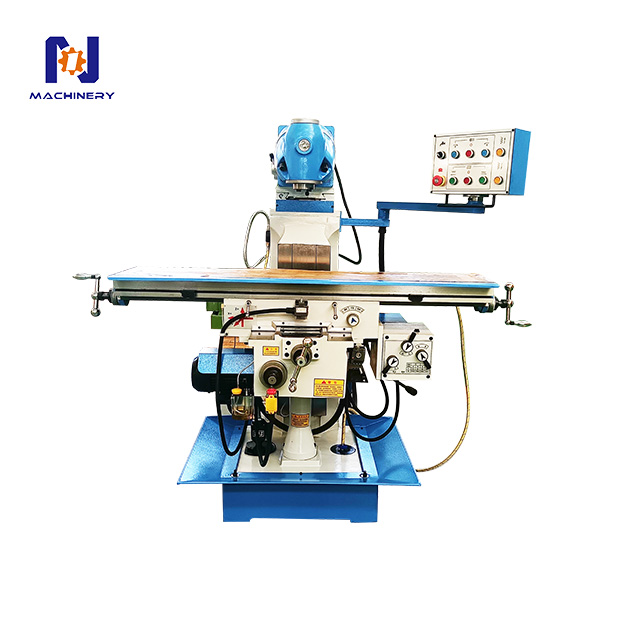

Universal rotary head milling machine X6232

Optional configuration

• 3 axis DRO

• clamping kit

• antomatic feed

• dividing hesd

• electronic oil pump

• tool

• rotary table

• PARAMETER ITEM	UNIT	X6232
  Size of worktable	mm	1500*320
  Table travel	mm	1000*320*400
  T-shaped groove for table	-	3
  Spindle Taper	-	7:24  ISO40
  Spindle speed range	rpm	35-1600
  Distance from spindle face to table	mm	120-520
  Distance from center of horizontal axis to table	mm	1000*360*360
  Table feed range	mm/min	18-308(8 steps)
  Rotation angle of milling head	。	360.
  Main motor power	kw	2.2
  Feed motor power	kw	0.75
  Weight of machine tool	kg	1700
  External dimensions	mm	1700*1560*1750
