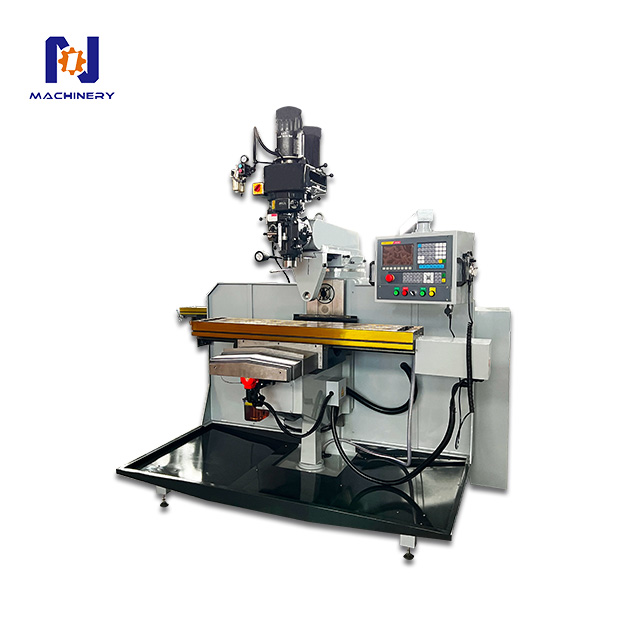

CNC turret milling machine 5HW
NO.1 MACHINERY
8459590000
Optional configuration
CNC Four-axis turntable
GSK KND System
Standing and Lying
PARAMETER ITEM | UNIT | 5HW(CNC) |
Size of worktable | mm | 1370*350 |
Table travel | mm | 810*370*400 |
T-groove
| - | 3-16*65 |
Spindle Taper | - | R8/NT40 |
Horizontal axis taper | lv | ISO40 |
Three-axis torque | - | 7/7/10 |
Spindle speed range (series)) | rpm | 50Hz:65-4500 60Hz:80-5440(16) |
Horizontal axis speed range (series) | rpm | 45-1350(12) |
Spindle stroke | mm | 127 |
Spindle feed range (series) | mm | 0.045,0.086,0.142(3) |
Distance from spindle face to table | mm | 90-510 |
Distance from center of horizontal axis to table | mm | 0-400 |
Main motor power | kw | 5 HP (V) /3 Kw (H) |
Milling head turn left and right | 。 | ±90. |
The milling head turns back and forth | 。 | ±45. |
Weight of machine tool | kg | 1850 |
External dimensions | mm | 2000*1800*2400 |
CNC operating system | - | GUANGTAI/GSK |
