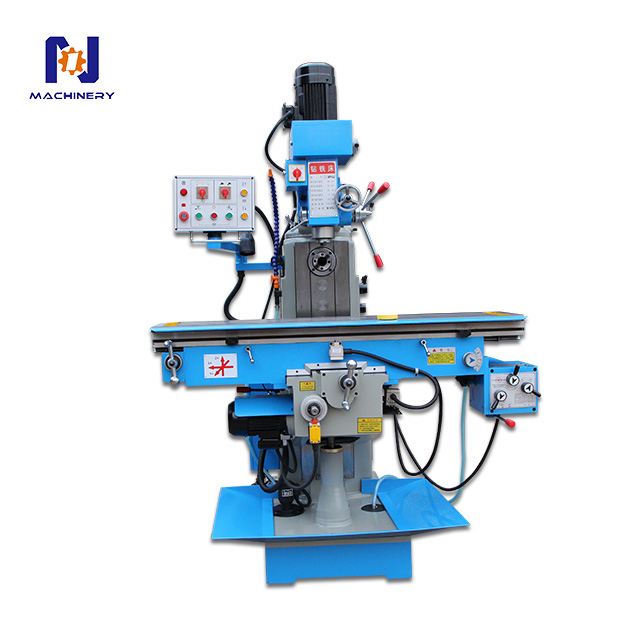

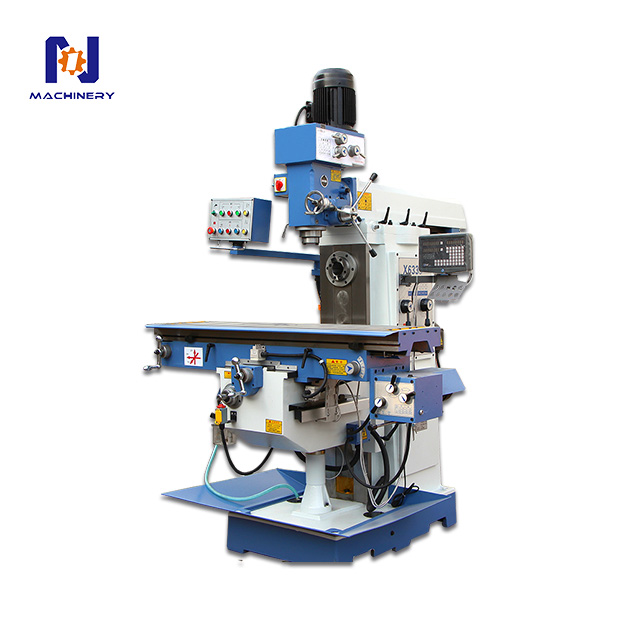

Turret Milling Machine X6336P

optional configuration:

• 3 axis DRO

• automatic feed

• electronic pump

• rotary table

• clamping kit

• pneumatic draw bar

• diving head

• tool

• PARAMETER ITEM	UNIT	X6336A
  Size of worktable	mm	1500*360
  Table travel	mm	1000/360/450
  T-groove	-	3-18*80
  Vertical spindle taper	-	MT40
  Horizontal axis taper	-	ISO40
  Spindle speed range	rpm	50Hz:65-4500/60Hz:80-5440
  Horizongtal axis speed range	-	60-1800
  Spindle stroke	mm	127(V)
  Spindle feed range	mm	0.045,0.086,0.142
  Distance from spindle face to table	mm	140-590
  Distance from end face of horizontal shaft to table	mm	0-450
  Main motor power	mm	5HP/4KW
  Weight of machine tool	kw	2400
  External dimensions	kg	2600*2200*2550
