Machine configuration: VMC1160, SYNTEC22 MA control system, Okada spindle BT40-150-10000 rpm, belt drive.Tool cylinder brand: Tie Ning.Customer complaint: The tool handle cannot be released manually, and the tool handle can be removed by tapping the tool handle with external force. In automatic mode
The reason: (1)Insufficient air pressure;(2)Loose knife button poor contact or line break;(3)Loose knife button PLC input address point burned out or no signal source; (4)Loose knife relay does not operate; (5)Loose knife solenoid valve is damaged; (6)The amount of cutting is insufficient;(7)The kni

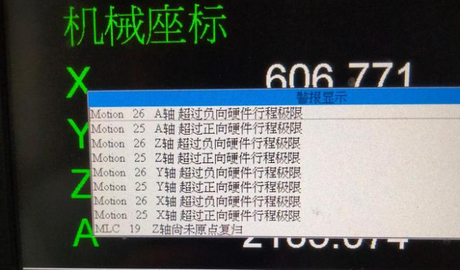

Under normal circumstances, this alarm will not appear, the operation of the machine tool before zero may appear, because the system does not fix the mechanical coordinate system before zero, but it is positioned at will, and the soft limit is invalid, so the operation of the machine tool must first
