VMC1890 3-Axis CNC Milling Machine Optional 4-axis/5-axis Chinese Manufacturer Machine Tool

Optional  configuration

• Siemens，FANUC，Mitsubishi,GSK，KND

• spindle RPM 10000 Timingbelt /12000 Direct drive

• Coolant through spindle(CTS)

• Workpiece measuring probe

• Screw type chip conveyor

• chain tvpe chip conveyor

• 4- axis /5- axis

• Optional Z-axis Hard


• Tool setting probe




• Item Model	Unit	VMC1890

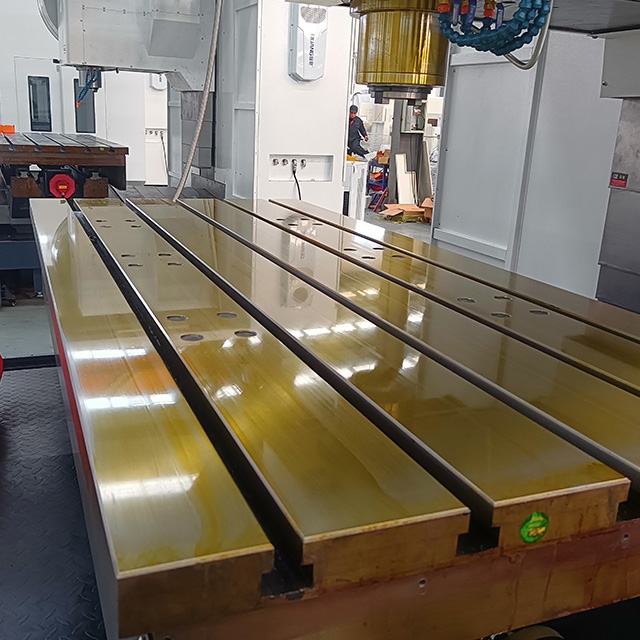

  Size of worktable	mm	2000*900
  T-shaped groove for table	mm	5-22*165
  Maximum load on table	kg	1600
  X/Y/Z rail width	mm	55/45/HARD
  X/Y/Z ball screw specification	mm	5010/5010/5512
  X/Y/Z Axis stroke	mm	1800*900*600
  X/Y/Z motor torque	NM	26/30/30
  Spindle face to table position	mm	115-715
  Distance from Spindle Center to column	mm	950
  Cutting feed rate	mm/min	1-8000
  X/Y/Z axis fast feed	m/min	20/20/15
  Spindle end taper/diameter	mm	BT50-190
  Spindle motor power	kw	18.5

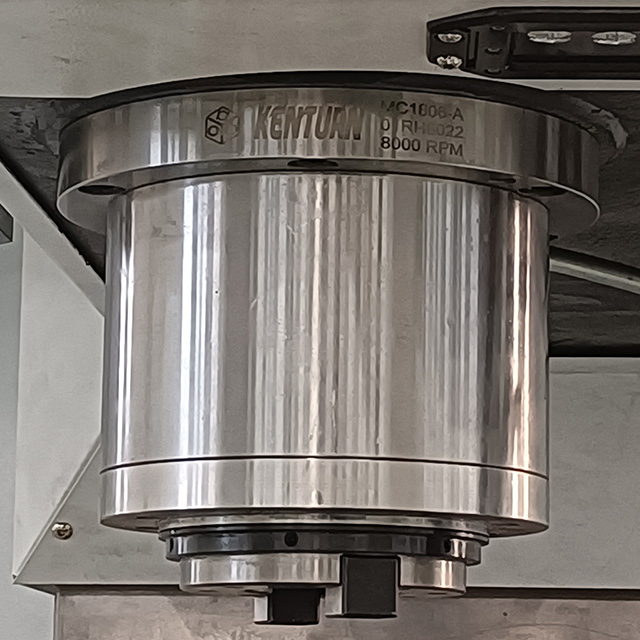

  Maximum spindle speed	rpm	6000/8000

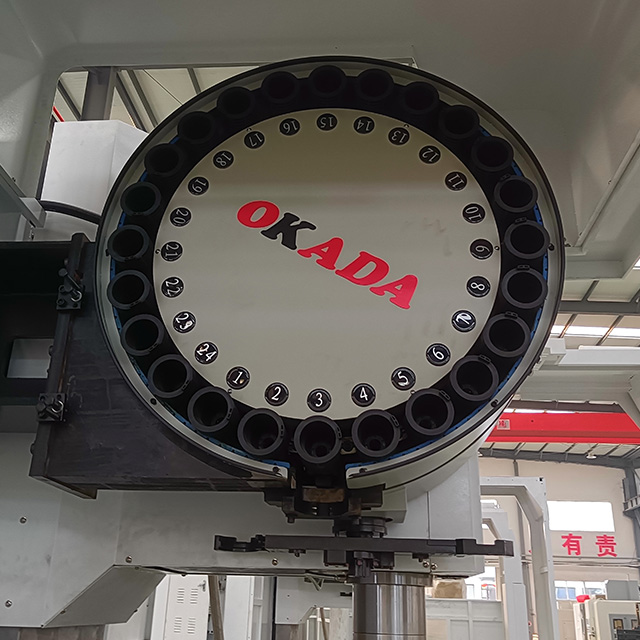

  Form of Tool Bank	-	Disc
  The capacity of knife storage	tools	24
  Maximum tool diameter/weight	mm/kg	112/200/18
  Tool change time	sec	2.5
  Positioning accuracy	mm	0.008
  Repeat positioning accuracy	mm	0.005
  The smallest unit of positioning	mm	0.005
  Weight of machine tool	kg	16000
  External dimensions	mm	5100*3800*3200
