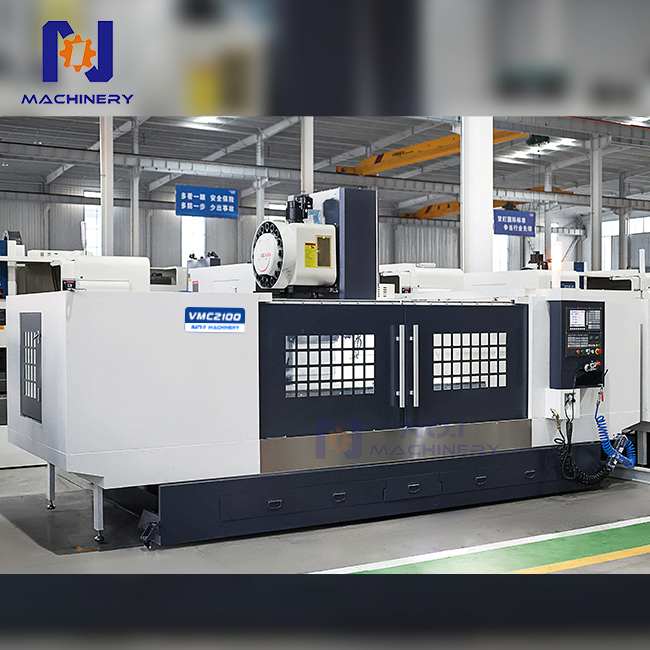

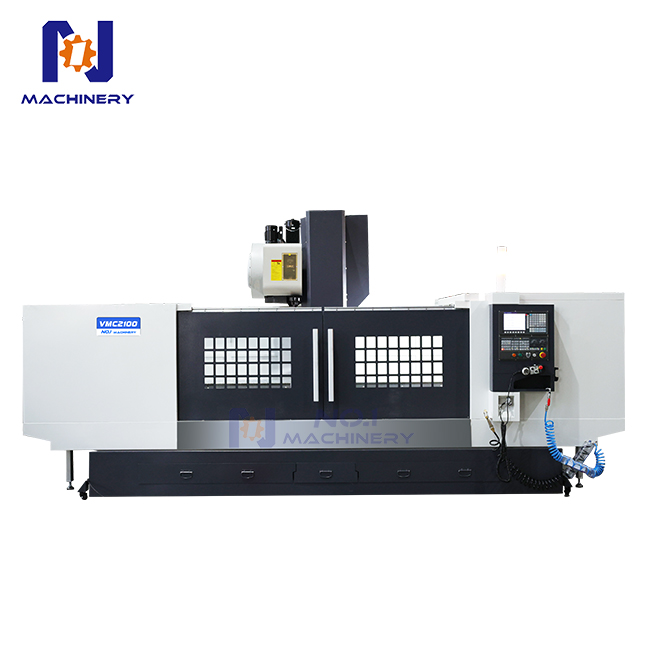

Vertical Machining Center VMC2100

TRAVEL

x-axis

mm

2100

y-axis

mm

400

z-axis

mm

500

Spindle nose to table

mm

280-780

Spindle center to column

mm

405

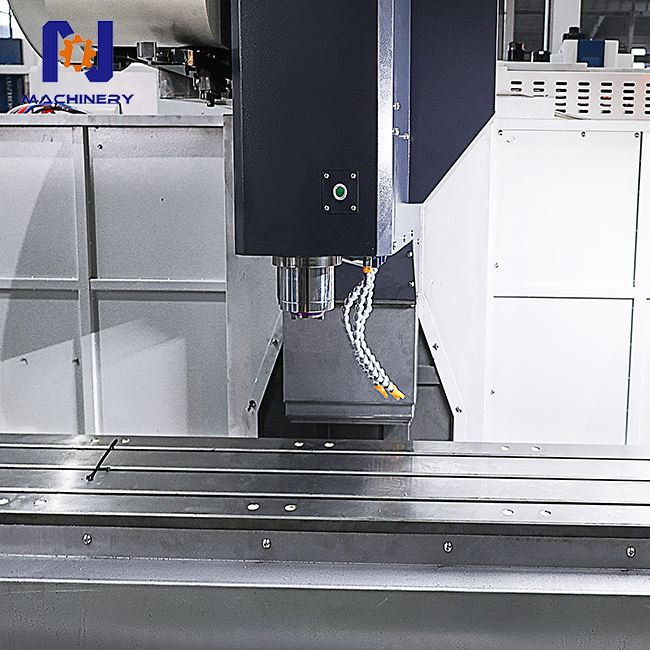

TABLE

Table size

mm

2150*400

Max. loading capacity

kg

800

Number of y-axis slide rails

pcs

2

Size of T-slot

mm

18*3*100

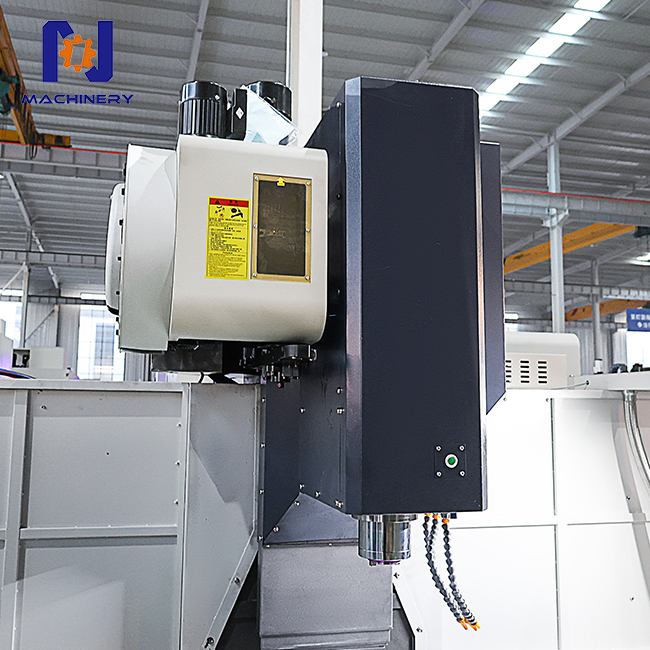

SPINDLE

Spindle speed

rpm

8000

Belt type

-

HTD880-5GT-40

Spindle taper

-

BT40

Pull stud bolt

-

BT40

Spindle out dia

mm

120

Spindle nose taper

#

40

X- axis linear motion rolling guide

Mm/pcs

35/6

Y-axis inear motion rolling guide

Mm/pcs

35/8

y-axis inear motion rolling guide

Mm/pcs

35/4

X/Y/Z-axis motor Connection method

-

direct

AXES

Ball screw accuracy

-

C3

Ball screw diameter x.y.z

mm

40/40/40

Lead

mm

16/12/12

Standard Accessories

-

GSK980MDI

X-axis motor

NM/RPM

15/2000

Y-axis motor

NM/RPM

15/2000

Z-axis motor

NM/RPM

18/2000

Spindle motor

KW/RPM

11/8000

software package

-

GSK980MDI

monitor screen

-

8.4 inch color

CF card interface

-

Yes

Hand wheel

-

Yes

FEED RATE

x y z axis rapid feed rate

Mm/min

18000/18000/18000

Cutting feed rate

Mm/min

0-12000

TOOL

Max. tool length

mm

300

Max. tool dia

mm

80

Max. tool weight

kg

8

Tool specification

-

BT40

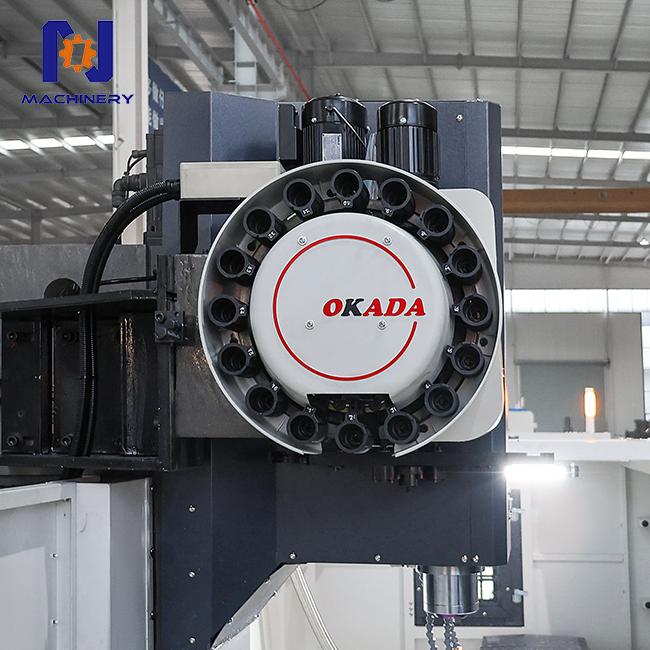

ATC

pcs

16

Coolant motor

-

AC 1.2KW-4P

Pump flow

L/MIN

30

Tank volume

L

300
