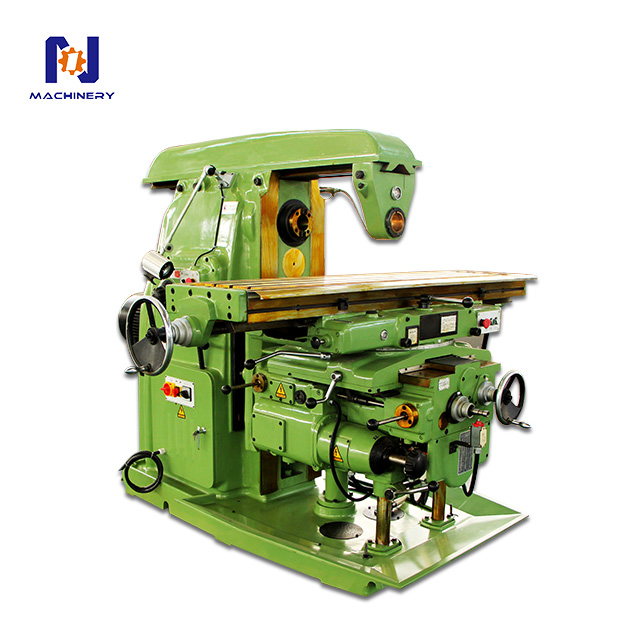

Horizontal milling machine (heavy duty)XA6140

FEATURES
  • This series of universal lifting table milling machine is easy to operate and reliable.lt is widely used in various mechanical processing departments to process variousplanes,grooves and gears.The milling machine accessories such as universal milling head, round table and in-dexing head can be equipped to further expand the scope of use of the machine.
SKU:
Availability:
Inquire

twitter sharing button
facebook sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

  • Horizontal milling machine (heavy duty)XA6140

  • NO.1 MACHINERY

  • 8459310000

XA6140 Horizontal milling machine (heavy duty)

  • PARAMETER ITEM

    UNIT

    XA6140

    Working desk size

    mm

    1700*400(2000*400)

    Work table T-slot number / width / spacing

    mm

    3-18-90

    Workbench maximum overload

    kg

    800

    X direction (table longitudinal) manual / maneuver

    mm

    900/880(1100 optional)

    Y direction (slide lateral) manual/ maneuver

    mm

    315/300

    Z direction (lifting table vertical) manual / maneuver

    mm

    380/360

    Cutting  feed rate

    mm/min

    X/Y:23.5-1180

    Z:8-394

    Fast moving speed

    mm/min

    X:2300

    Y:2300

    Z:770

    Spindle speed range

    rpm

    30-1500

    Spindle speed series

    steps

    18

    Worktable maximum turning angle

    。

    ±45。

    Spindle center to table distance

    mm

    30-410

    Spindle motor power

    kw

    11

    Dimensions

    mm

    2560*2130*1800

    Machine weight (about)

    kg

    3850
Milling Chuck
1 Set
7:24middle set
1 Set
Double-head socket wrench
1 Set
Hexagon socket wrench
1 Set
Anchor bolts
1 Set
Horizontal milling arbor
1 Set
Single-head spanner
1 Set
download Horizontal milling machine (heavy duty)XA6140.pdf
