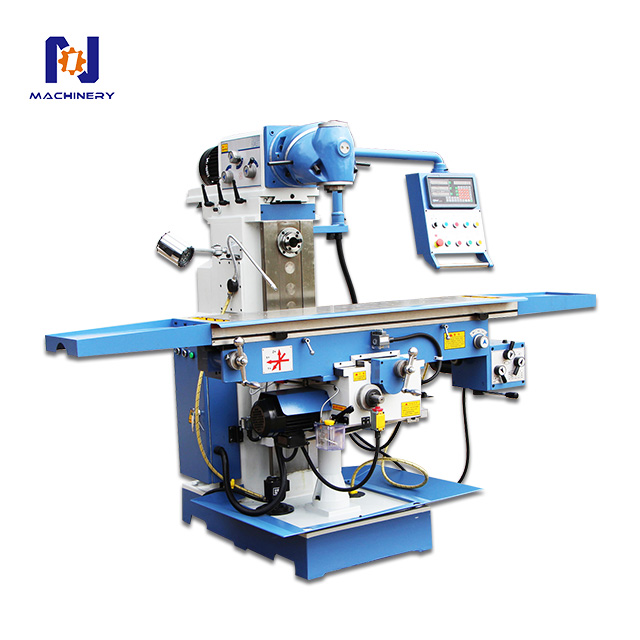

Universal rotary head milling machine X6432
NO.1 MACHINERY
8459590000
Optional configuration
electronic oil pump
clamping kit
rotary table
dividing head
tool
PARAMETER ITEM | UNIT | X6432 |
Size of worktable | mm | 1500*320 |
Table trave | mm | 1000*320*400 |
T-groove | - | 3-16*60 |
Spindle Taper | - | ISO40 |
Horizontal axis taper | - | ISO40 |
Spindle speed range | rpm | 48-1660 |
Horizontal axis speed range | rpm | 40-1300 |
Distance from spindle face to table | mm | 120-520 |
Distance from end face of horizontal shaft to table | mm | 0-400 |
Table feed range | mm | X/Y: 22-555 Z:electric |
Rotation angle of milling head | 。 | 360 |
Main motor power | kw | 3/3 |
Feed motor power | kw | 1.1 |
Weight of machine tool | kg | 2100 |
External dimensions | mm | 2450*1750*2000 |
