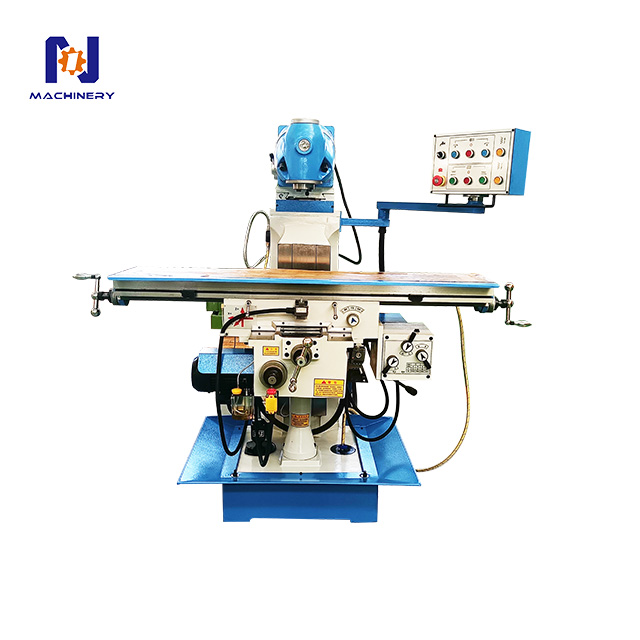

Universal rotary head milling machine X6228
NO.1 MACHINERY
8459590000
Optional configuration
3 axis DRO
clamping kit
antomatic feed
dividing hesd
electronic oil pump
tool
rotary table
PARAMETER ITEM | UNIT | X6228 |
Size of worktable | mm | 1200*280 |
Table travel | mm | 650*280*350 |
T-shaped groove for table | - | 3 |
Spindle Taper | - | 7:24 ISO40 |
Spindle speed range | rpm | 35-1600 |
Distance from spindle face to table | mm | 110-490 |
Distance from center of horizontal axis to table | mm | 0-500 |
Table feed range | mm/min | 18-308(8 steps) |
Rotation angle of milling head | 。 | 360. |
Main motor power | kw | 2.2 |
Feed motor power | kw | 0.75 |
Weight of machine tool | kg | 1300 |
External dimensions | mm | 1500*1400*1730 |
