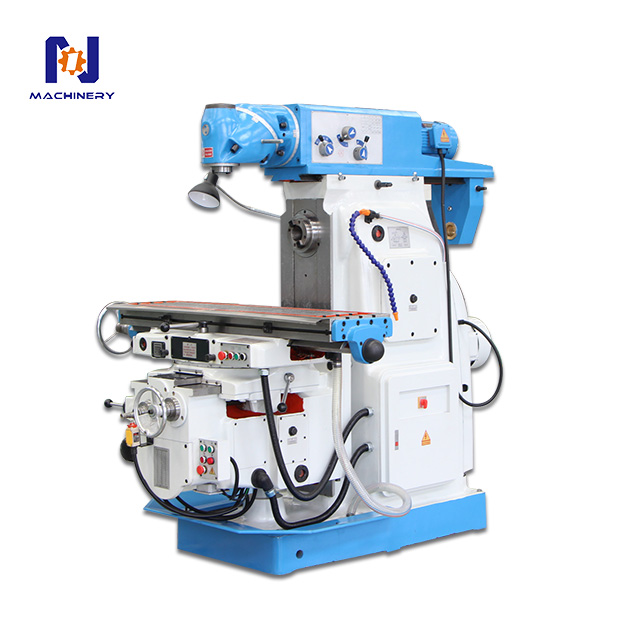

Universal rotary head milling machine (heavy) XA6232

Optional configuration

• Three-axis digital display

• Rotating table

• Dividing head

• Can be changed to CNC

• Pressure Plate

• PARAMETER ITEM	UNIT	XA6232
  Working desk size	mm	1320*320(1600*320)
  Work table T-slot number / width / spacing	mm	3-18-70
  Workbench maximum overload	kg	300
  X direction (table longitudinal) manual / maneuver	mm	700/680 (900 optional)
  Y direction (slide lateral) manual / maneuver	mm	255/240
  Z direction (lifting table vertical) manual / maneuver	mm	380/360
  Cutting feed rate	mm/min	X/Y:23.5-1180 Z:8-394
  Fast moving speed	mm/min	X:2300 Y:2300 Z:770
  Spindle speed range (V/H)	rpm	V:35-1600 H:30-1500
  Spindle speed series (V/H)	steps	V:11 H:18
  Spindle Taper	-	V:ISO40 7:24 H:ISO50 7:24
  Worktable maximum turning angle	。	±45.
  Spindle center to table distance	mm	30-350
  Spindle motor power	kw	7.5
  Dimensions	mm	2294*1770*1665
  Machine weight (about)	kg	2650
