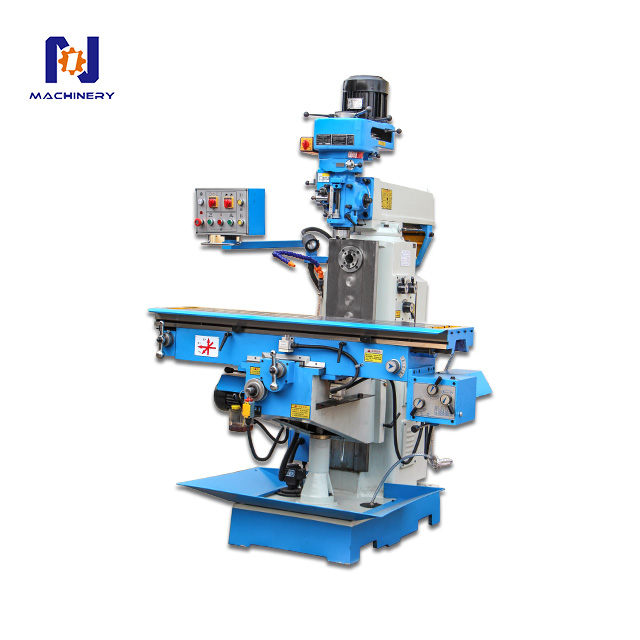

Drilling And Milling Machine ZX6350

optional configuration:

• 2/3 axis digital display

• 1500*250mm worktable

• can be changed to CNC three-axis linkage

• PARAMETER ITEM	UNIT	ZX6350
  Drilling diameter	mm	50
  End mill maximum width	mm	100
  Maximum diameter of vertical milling	mm	25
  Boring maximum diameter	mm	120
  Maximum tapping diameter	mm	M16
  Spindle taper hole		MT4
  Distance from spindle end face to table	mm	90-450
  Spindle speed range	rpm	115-1750(Vertical) 40-1350(Horizontal)
  Spindle stroke(Z)	mm	120(V)
  Working desk size	mm	1200/1500*280*400
  Workbench stroke	mm	650/900*280*350
  Dimensions	mm	1680*1480*2250
  Motor Power	kw	1.5/2.2(Vertical) 2.2(Horizontal)
  Weight	kg	1450/1560
