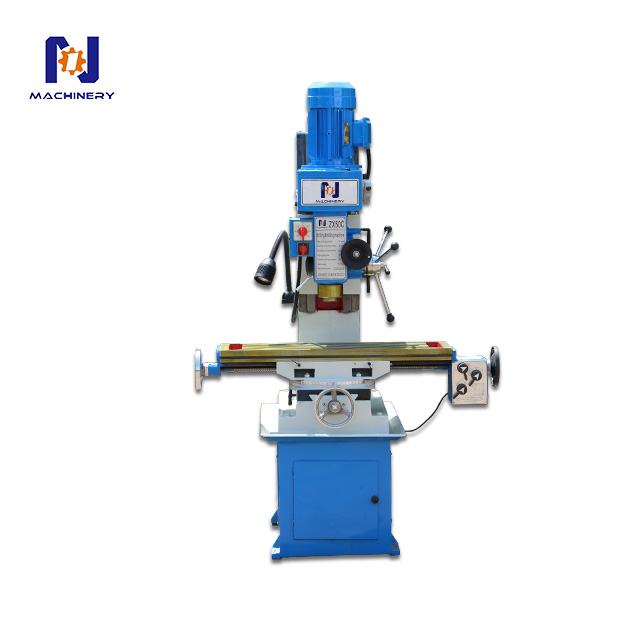

Drilling And Milling Machine ZX50C

optional configuration:

• Electric lift of Z axis

• Y-axis automatic tool feed

• Thress-axis digital display

• Two-axis digital display

• PARAMETER ITEM	UNIT	ZX50C
  Maximum diameter of drilled hole	mm	50
  End mill maximum width	mm	100
  Maximum diameter of vertical milling	mm	25
  Boring maximum diameter	mm	120
  Maximum tapping diameter	mm	M16
  Spindle taper hole		MT4
  Distance from spindle end face to table	mm	38-430
  Spindle speed range	rpm	115-1750
  Spindle stroke(Z)	mm	120
  Working desk size	mm	900*240
  Workbench stroke	mm	400*230
  Dimensions	mm	1100*970*1650
  Motor Power	kw	1.5/2.2
  Weight	kg	500/600
