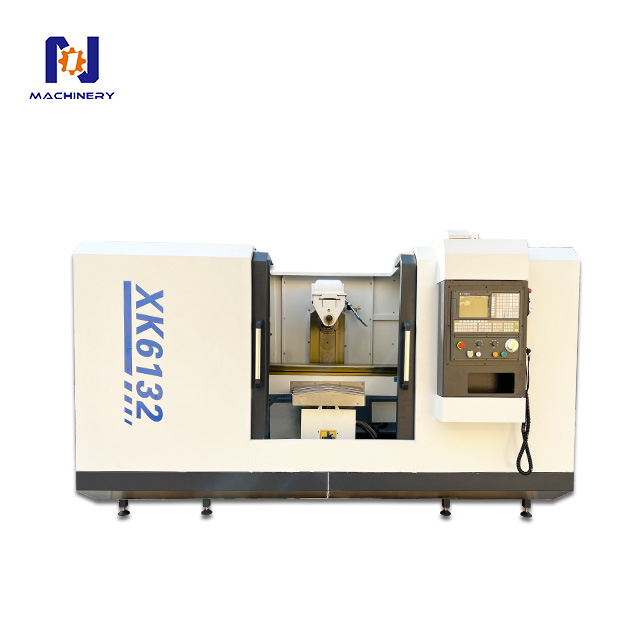

CNC Milling Machine XK6132
NO.1 MACHINERY
8459619000
Optional configuration:
System:GSK,KND
CNC dividing head
Top Tailstock
Pneumatic broach

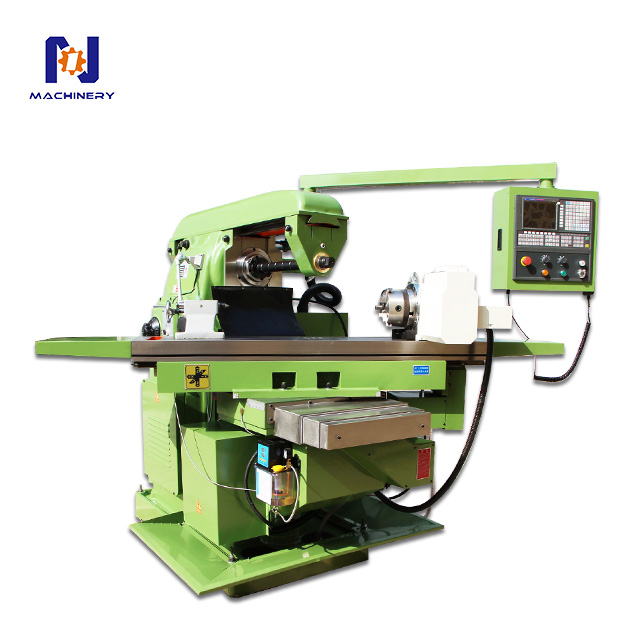

Fully protected sheet metal
The table rotates
PARAMETER ITEM | UNIT | XK6132 |
Size of worktable | mm | 1500*320 |
Table travel | mm | 900*310*410 |
T-groove | mm | 3-14-70 |
SpindleTaper | - | ISO:50/7:24 |
Table rotation angle(optional) | 。 | ±45。 |
Distance between spindle end face and table top | mm | 20-370 |
Bed Vertical Guide to the spindle center line distance | mm | 225-505 |
Spindle speed range (series) | rpm | 30-1500/18 |
Fast moving speed (x/y/z) | mm/min | 6000/6000/3000 |
Positioning accuracy | mm | 0.020/300 |
Repeat positioning accuracy | mm | 0.010/300 |
Main Drive motor power | kw | 7.5 |
Cooling pump motor power | kw | 0.125 |
External dimensions | mm | 2272*1825*2094 |
Weight of machine tool | kg | 2850 |
