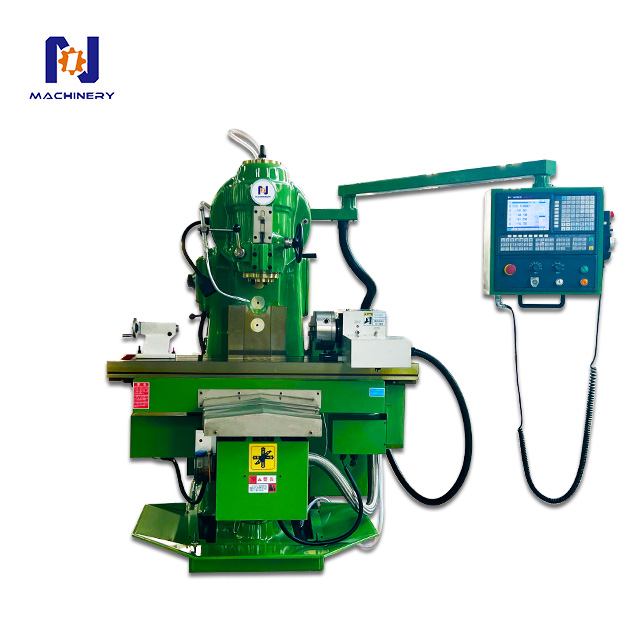

XK5040 CNC Milling Machine

Optional configuration:

• System:GSK,KND

• CNC dividing head

• Top Tailstock

• Pneumatic broach

• Fully protected sheet metal

• PARAMETER ITEM	UNIT	XK5040
  Size of worktable	mm	1700*400
  Table travel	mm	880*300*365
  T-groove	mm	3-18-90
  SpindleTaper	-	ISO:50/7:24
  Maximum rotation angle of end mill head	。	±45。
  Distance between spindle end face and table top	mm	45-410
  Bed Vertical Guide to the spindle center line distance	mm	450
  Spindle speed range (series)	rpm	30-1500/18
  Fast moving speed (x/y/z)	mm/min	3000/3000/1500
  Positioning accuracy	mm	0.05/300
  Repeat positioning accuracy	mm	0.025/300
  Main Drive motor power	kw	11
  Cooling pump motor power	kw	0.125
  External dimensions	mm	2556*2160*2400
  Weight of machine tool	kg	4320
