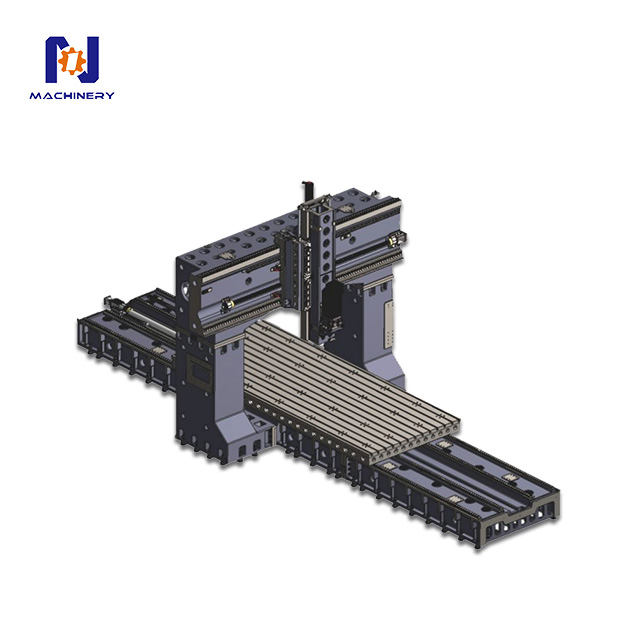

Gantry Machining Center GMC6032

Detailed configuration

• Spindle unite: KENTURN/OKADA/VOLIS

• Tool cylinder:TENIO

• Bearing: SKF/NACHI

• Coupling: R+W

• Tool magazine: OKADA/AIMACH

• Lead screw: HINWIN/PMI

• Linear rail: HIWIN/PMI

• Lubrication pump: HERG

• Guide rail protection: Haidong

• Electricals: Schneider

• Item model		Unit	GMC6032
  Size of worktable		mm	2500*6000
  (X)Table move direction stroke		mm	6000
  (Y)Spindle slide moving direction stroke		mm	3200
  (Z)Spindle up and down move direction stroke		mm	1250
  Width of gantry		mm	3200
  High of Gantry		mm	1780
  Distance between spindle end face and worktable surface		mm	350-1600
  T-shaped groove for table		mm	Middle:11-28X200 Tow sides:1-28X180
  Spindle specifications		-	BT50-200
  Spindle transmission mode	Belt	rpm	6000; (4:1)
  	ZF+Belt		6000; (1.5:1)
  	Gear Head		6000; (4.4:1)
  Fast moving feed speed		m	8
  Cutting feed rate		m	5
  X/Y/Z axis ball guide gauge/pitch		mm	X:10020 Y:8020
  X/Y/Z axis quide gauge/slider quantity		-	X: 55/28 ;4 Roller rail Y: 55/8 ;2 Roller rail Z: Rectangle ram
  X/Y/Z axis servo motor drive mode and drive ratio		-	X: 7:1 Planetary gear Y:4:1 Planetary gear Z:3:1 Planetary gear
  Spindle motor recommended		kw	30
  X/Y/Z three-phase servo motor recommended		NM	60/40/30
  Dimension of optical machine		mm	12440*54009*4980
  Load-bearing table		T	25
  Casting Machine		T	76
