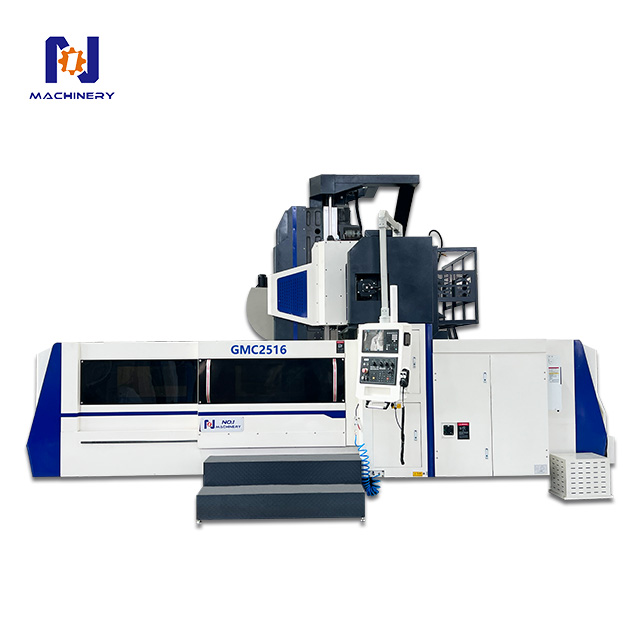

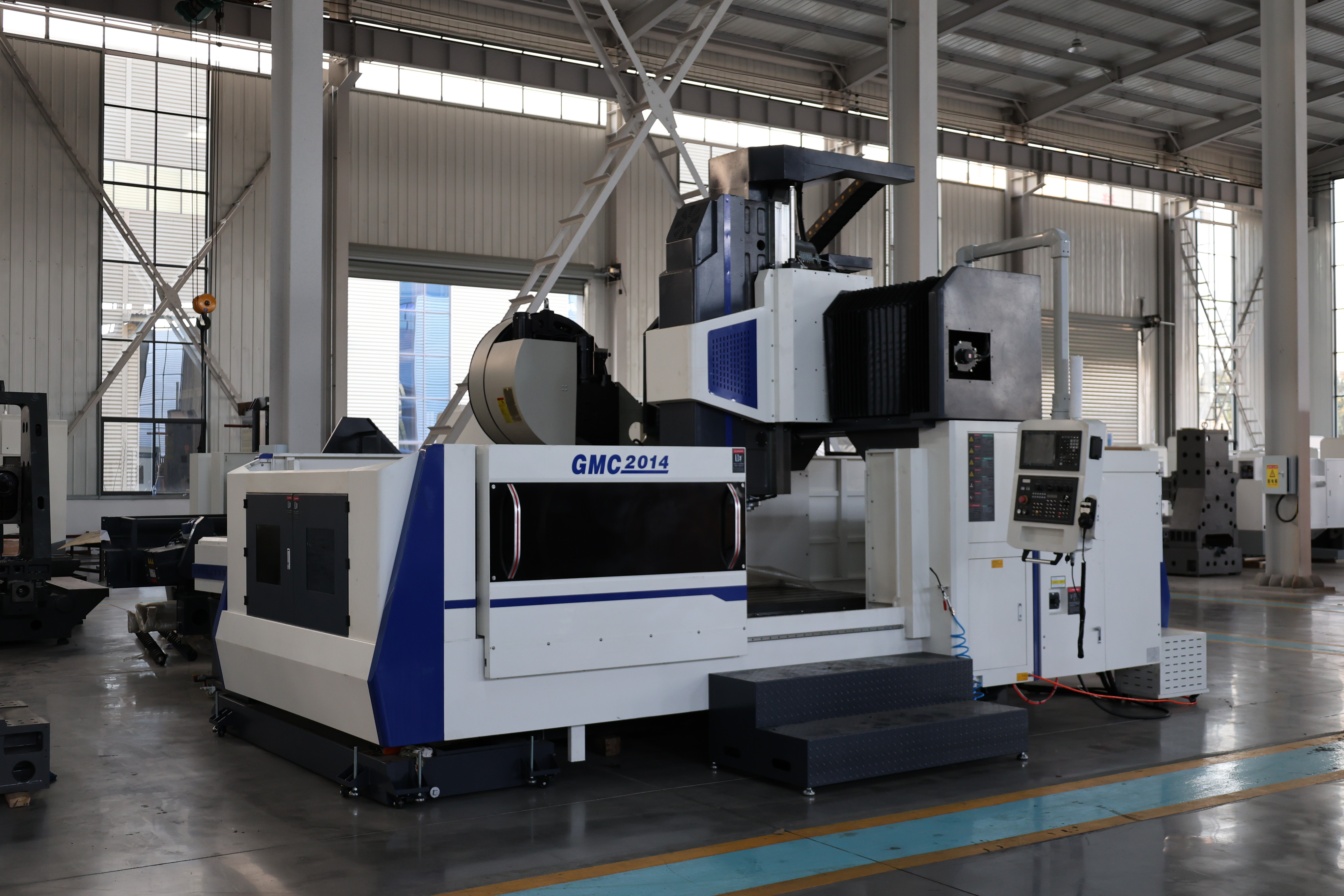

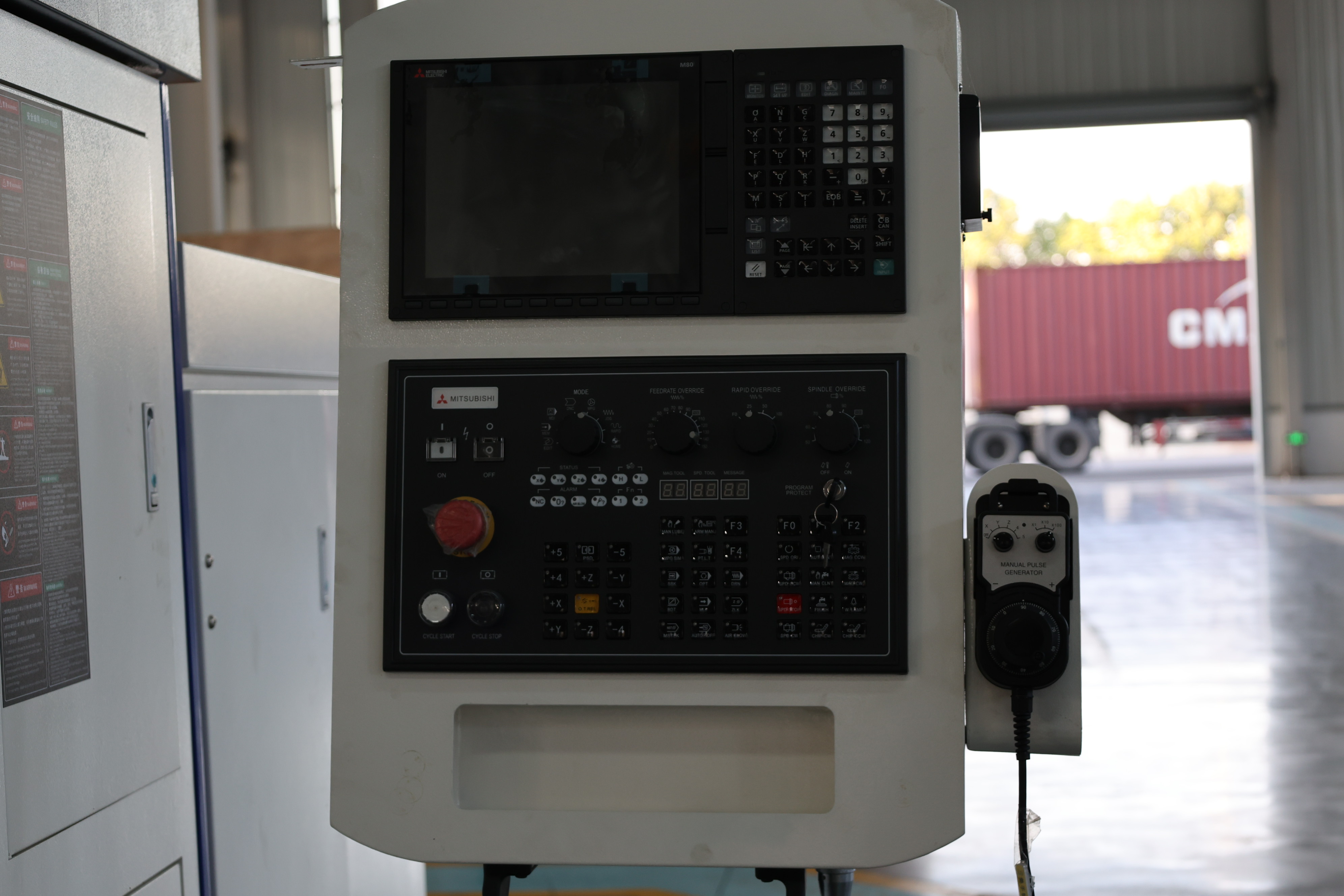

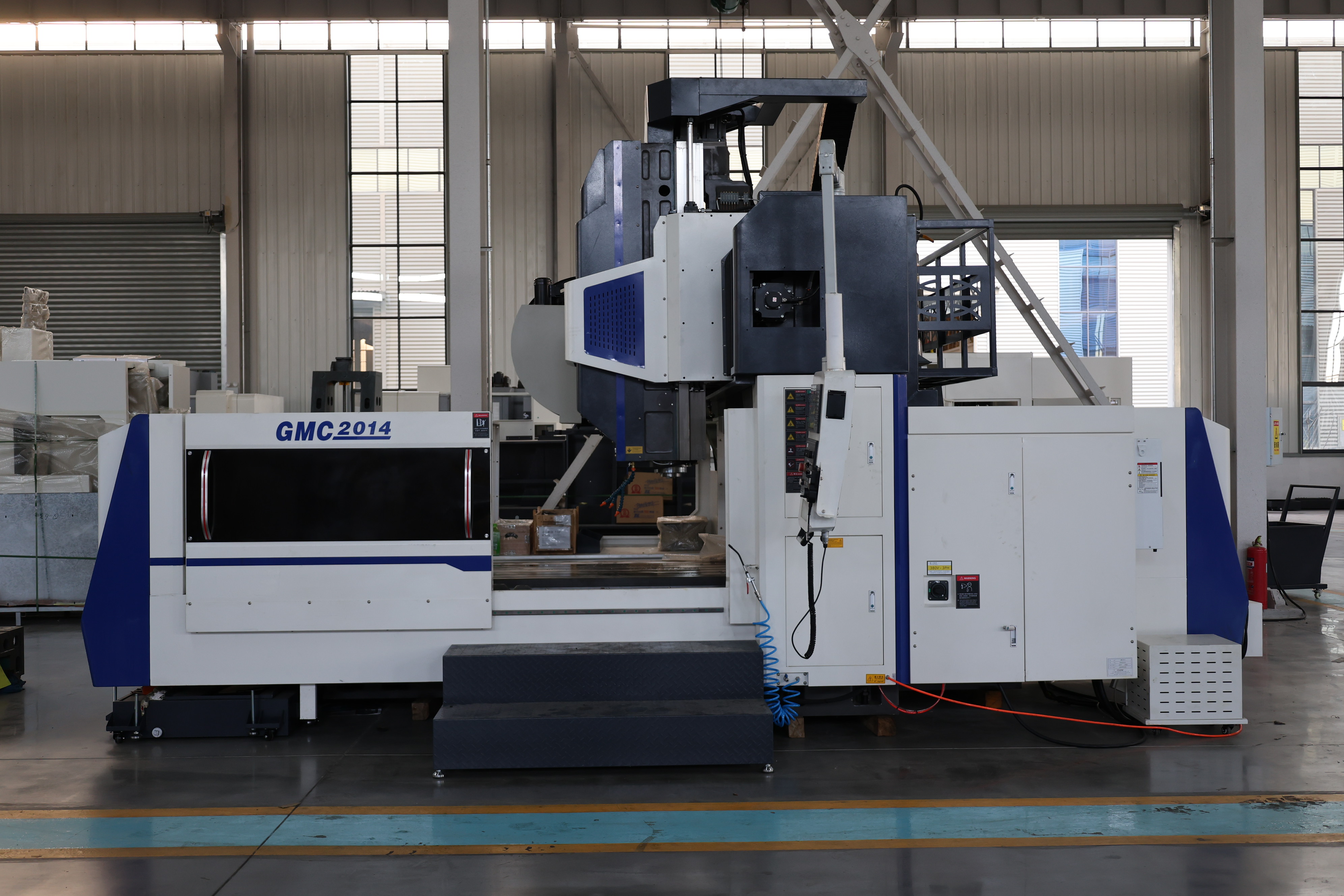

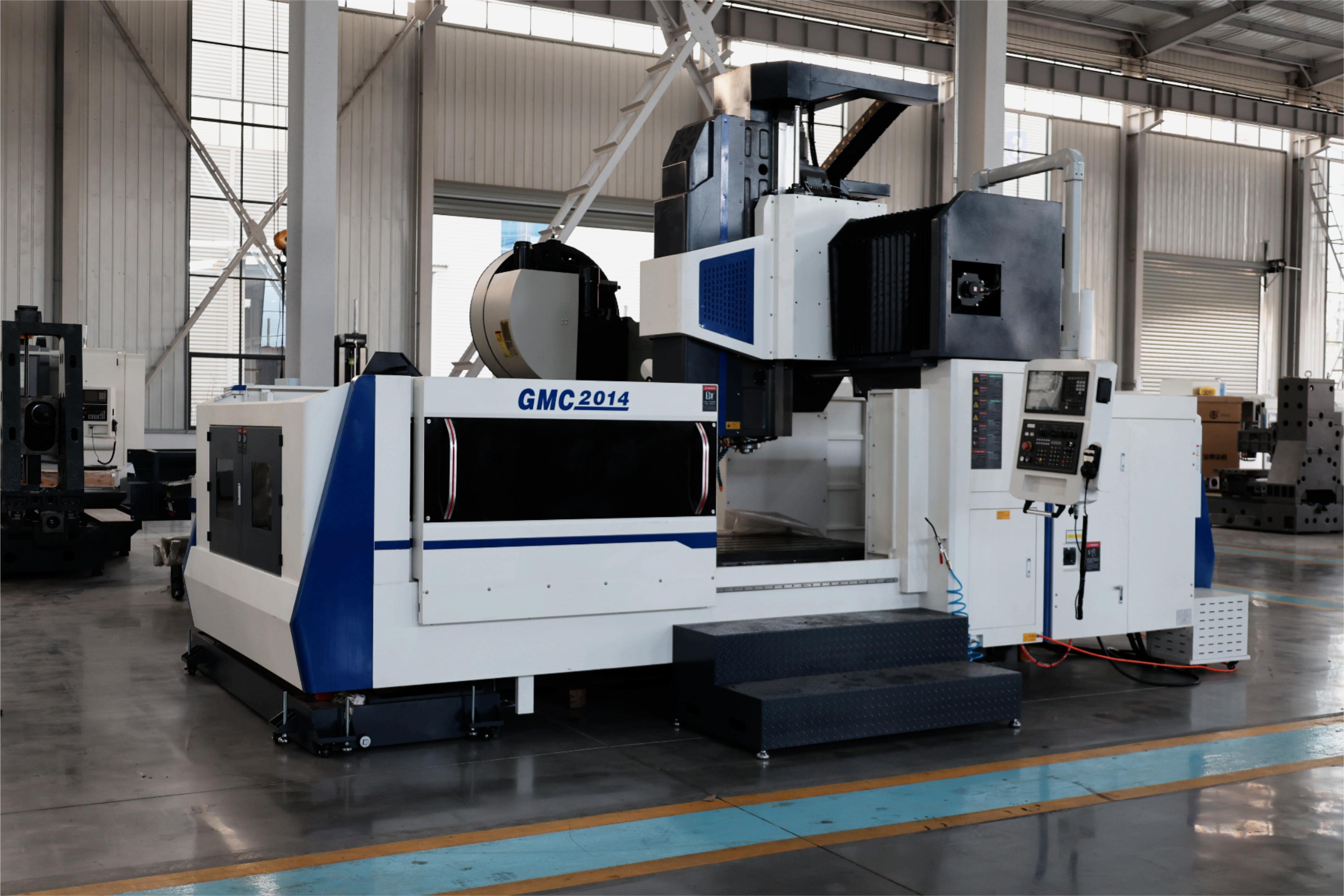

Gantry Machining Center GMC2516

Detailed configuration

• Spindle unite: KENTURN/OKADA/VOLIS

• Tool cylinder:TENIO

• Bearing: SKF/NACHI

• Coupling: R+W

• Tool magazine: OKADA/AIMACH

• Lead screw: HINWIN/PMI

• Linear rail: HIWIN/PMI

• Lubrication pump: HERG

• Guide rail protection: Haidong

• Electricals: Schneider

• Item model		Unit	GMC2516
  Size of worktable		mm	1300*2500
  (X)Table move direction stroke		mm	2500
  (Y)Spindle slide moving direction stroke		mm	1650(1850)
  (Z)Spindle up and down move direction stroke		mm	800
  Width of gantry		mm	1660
  High of Gantry		mm	1100
  Distance between spindle end face and worktable surface		mm	250-1050
  T-shaped groove for table		mm	7-22*170
  Spindle specifications		-	BT50-190
  Spindle transmission mode	Belt	rpm	6000; (1.5:1)
  	ZF+Belt		6000; (4:1)
  	Gear Head		6000; (4.4:1)
  Fast moving feed speed		m	15
  Cutting feed rate		m	10
  X/Y/Z axis ball guide gauge/pitch		mm	6312/5010/5010
  X/Y/Z axis quide gauge/slider quantity		-	X: 55/8 Roller rail Y: 55/4 Roller rail Z: Rectangle ram
  X/Y/Zaxis servo motor drive mode and drive ratio		-	Direct
  Spindle motor recommended		kw	22
  X/Y/Z three-phase servo motor recommended		NM	38/30/30
  Dimension of optical machine		mm	5600*2980*3830
  Load-bearing table		T	5
  Casting Machine		T	18
