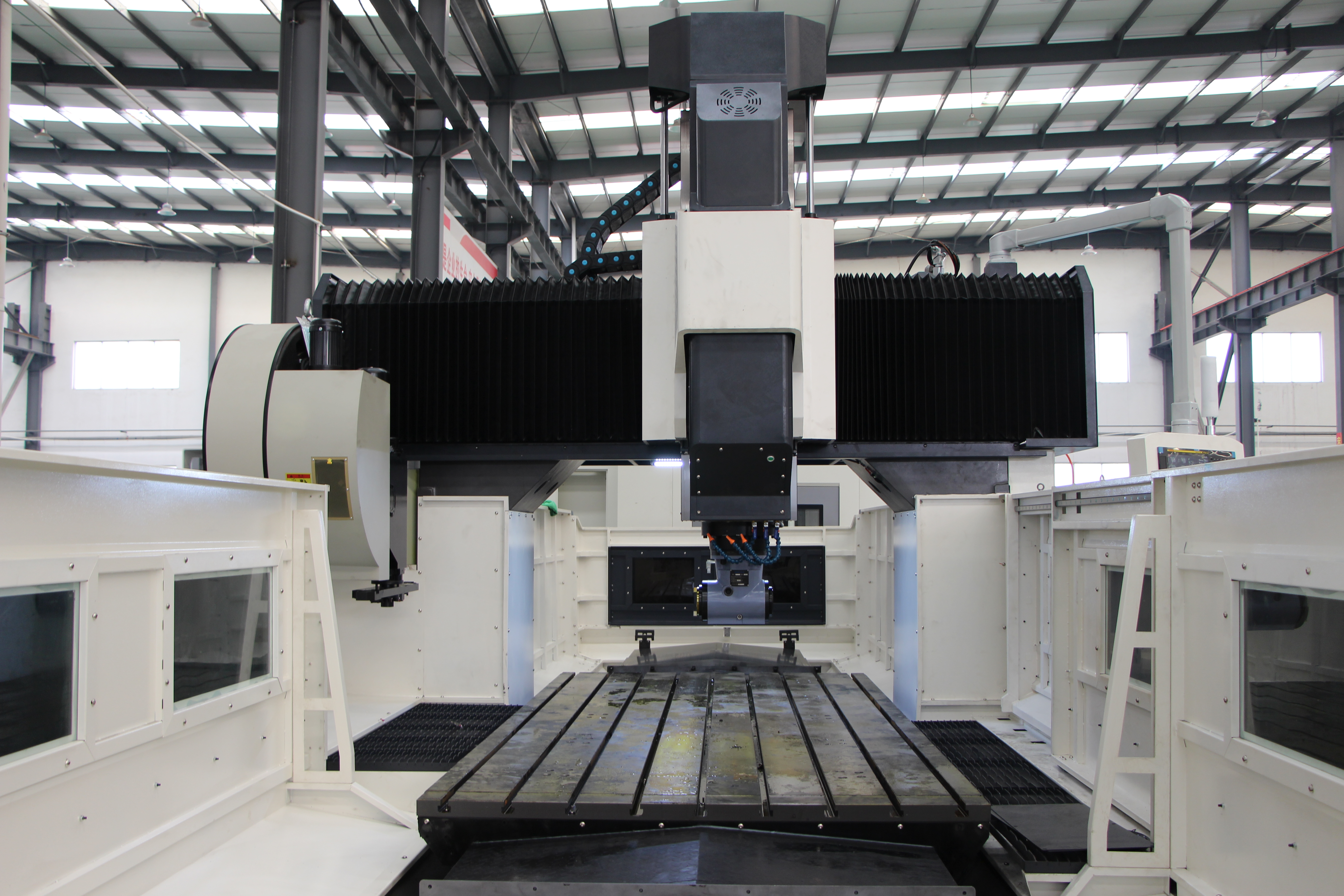

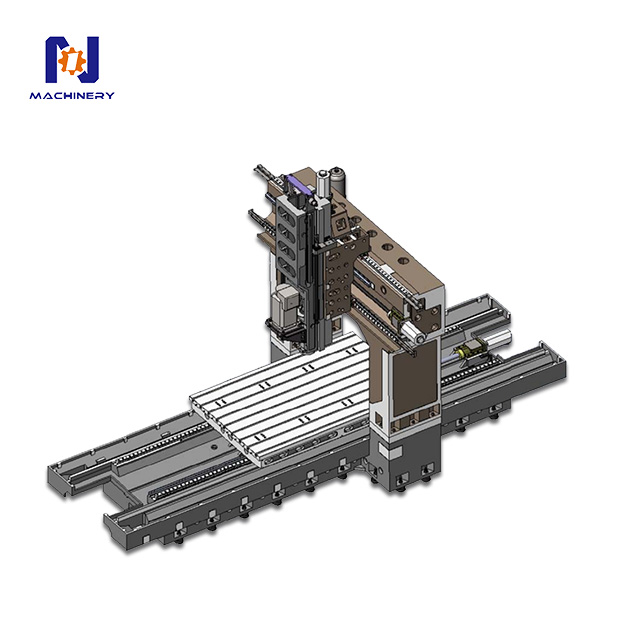

Gantry Machining Center GMC5025

Detailed configuration

• Spindle unite: KENTURN/OKADA/VOLIS

• Tool cylinder:TENIO

• Bearing: SKF/NACHI

• Coupling: R+W

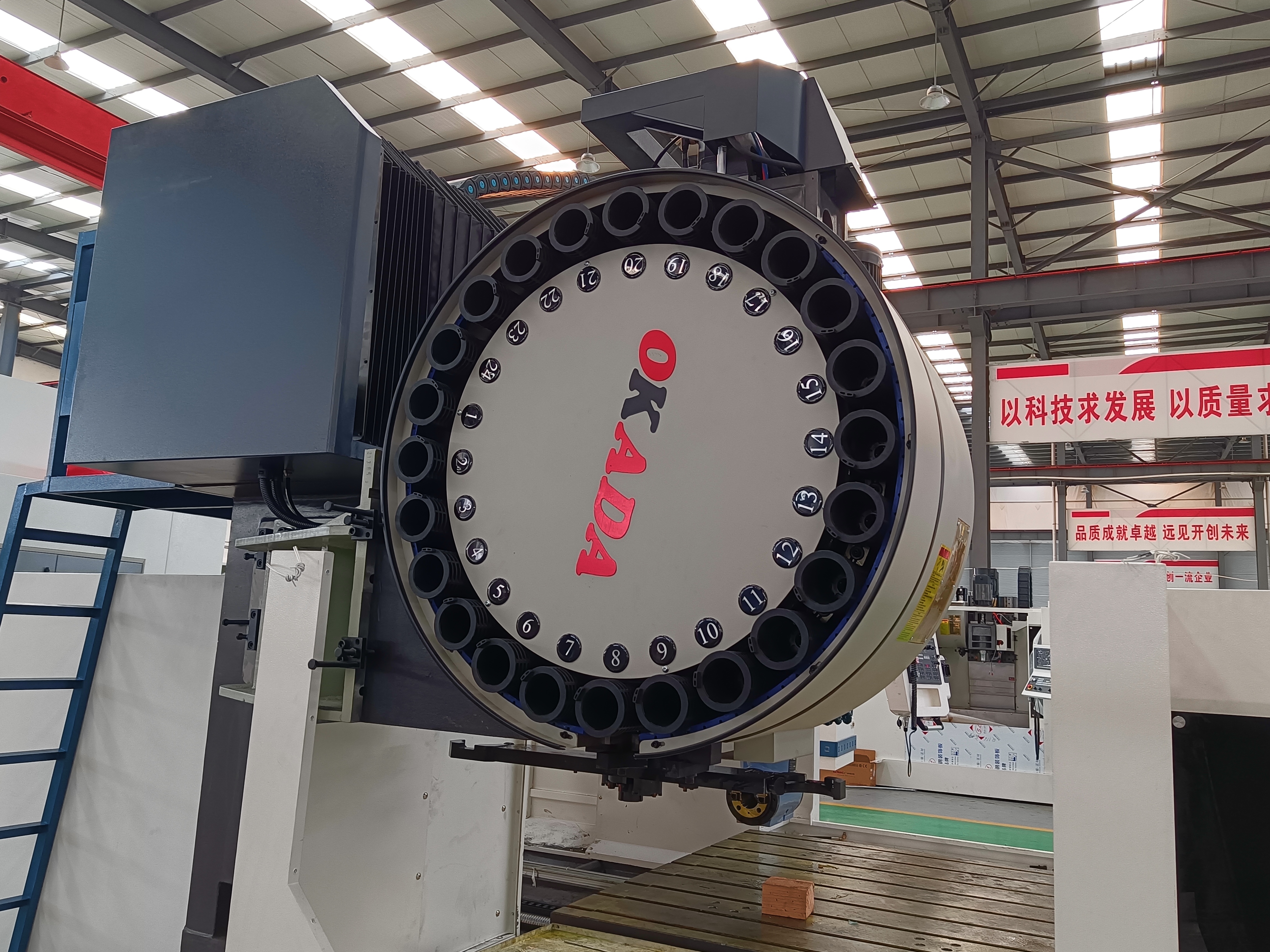

• Tool magazine: OKADA/AIMACH

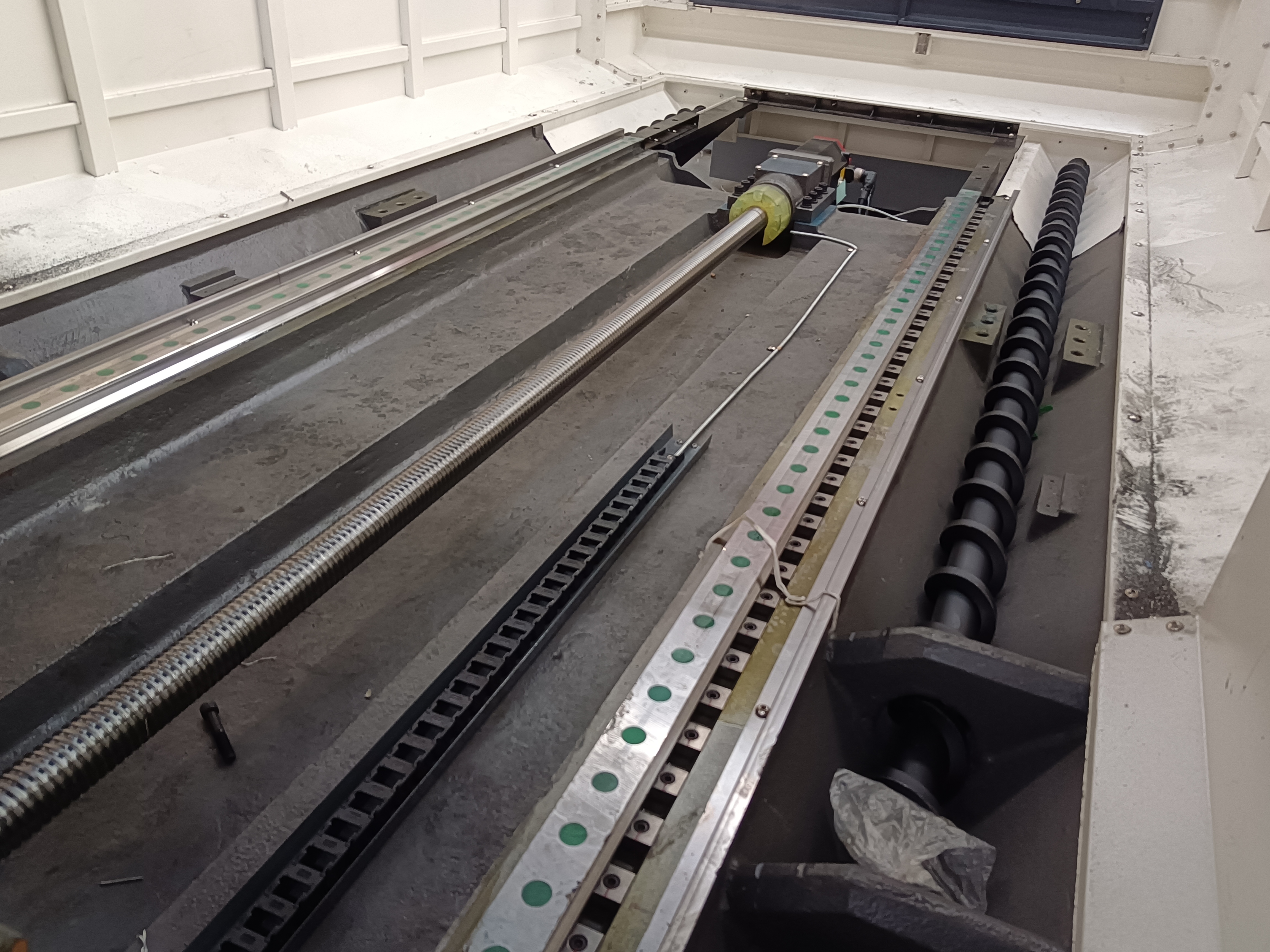

• Lead screw: HINWIN/PMI

• Linear rail: HIWIN/PMI

• Lubrication pump: HERG

• Guide rail protection: Haidong

• Electricals: Schneider

• Item model		Unit	GMC5025

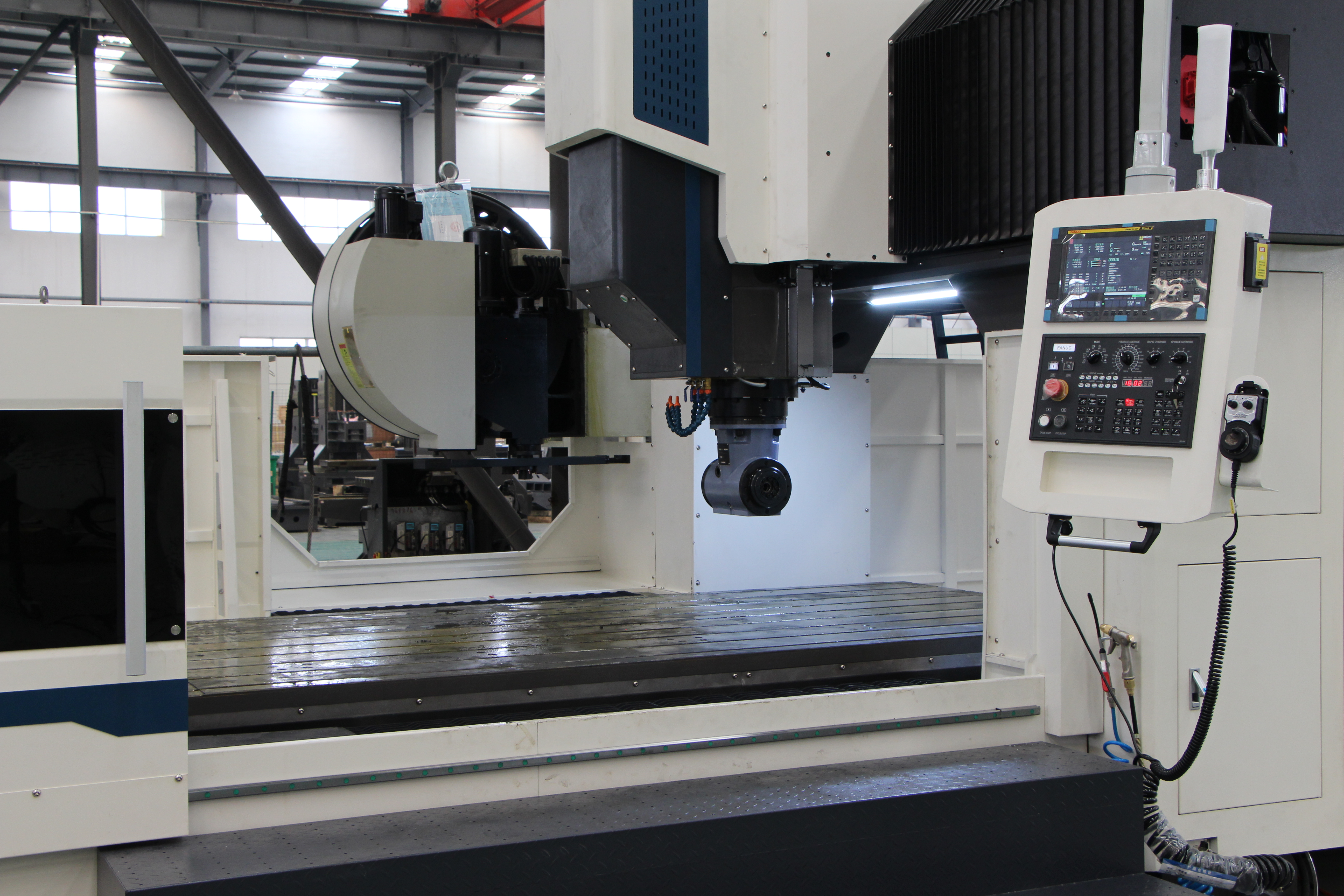

  Size of worktable		mm	2300*5000
  (X)Table move direction stroke		mm	5000
  (Y)Spindle slide moving direction stroke		mm	2700(3050)
  (Z)Spindle up and down move direction stroke		mm	1000
  Width of gantry		mm	2700
  High of Gantry		mm	1400
  Distance between spindle end face and worktable surface		mm	280-1280(180/250/300/430)
  T-shaped groove for table		mm	11-28*200

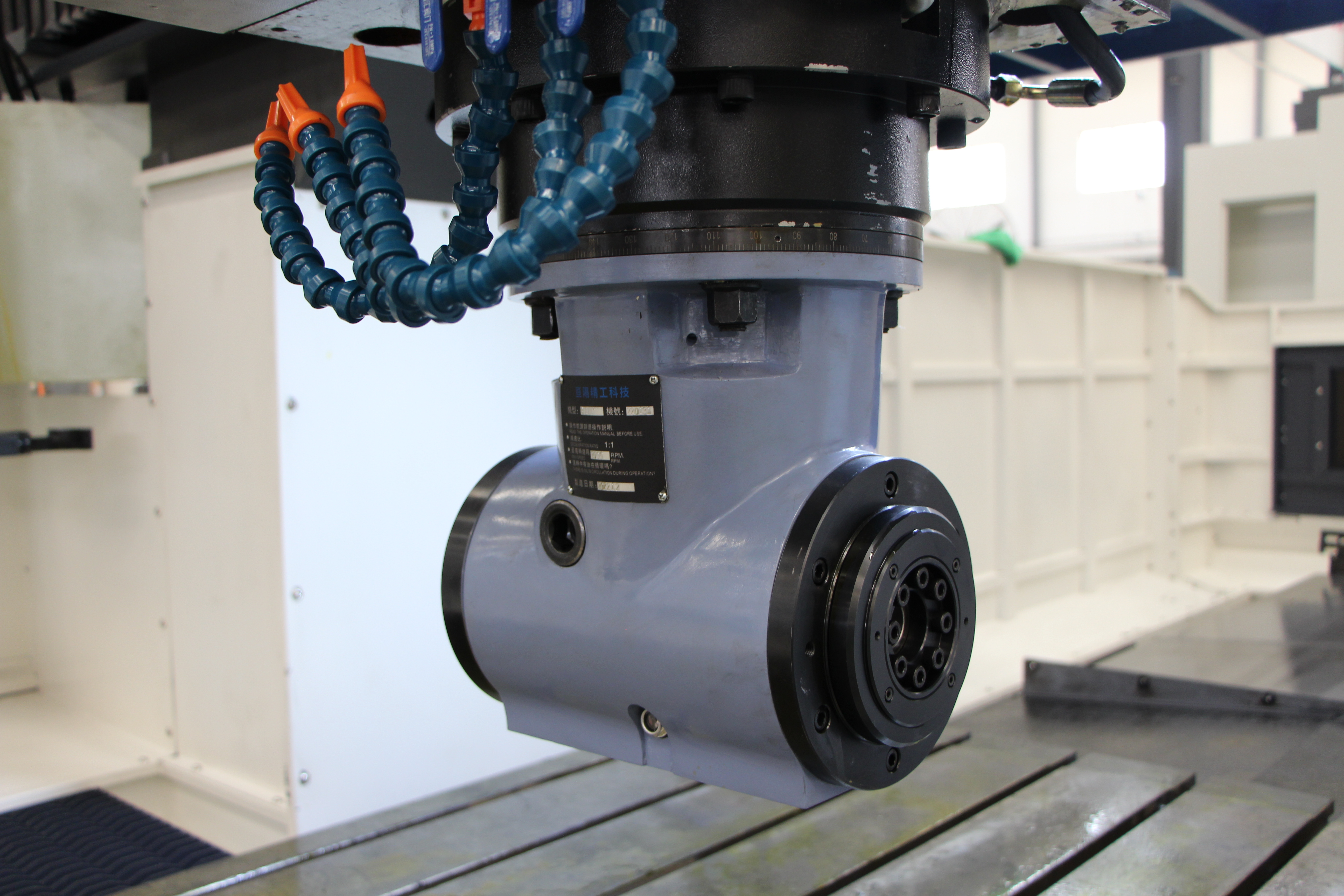

  Spindle specifications		-	BT50-200
  Spindle transmission mode	Belt	rpm	6000; (1.5:1)
  	ZF+Belt		6000; (4:1)
  	Gear Head		6000; (4.4:1)
  Fast moving feed speed		m	10
  Cutting feed rate		m	6
  X/Y/Z axis ball guide gauge/pitch		mm	8020/6312/5010
  X/Y/Z axis quide gauge/slider quantity		-
  X/Y/Z axis servo motor drive mode and drive ratio		-	X: Belt drive(4:1)/（2.5：1） Y:Direct drive(1:1)/（3：1） Z:Direct drive(1:1）
  Spindle motor recommended		kw	22
  X/Y/Z three-phase servo motor recommended		NM	50/40/30
  Dimension of optical machine		mm	10555*4420*4130
  Load-bearing table		T	15
  Casting Machine		T	43
