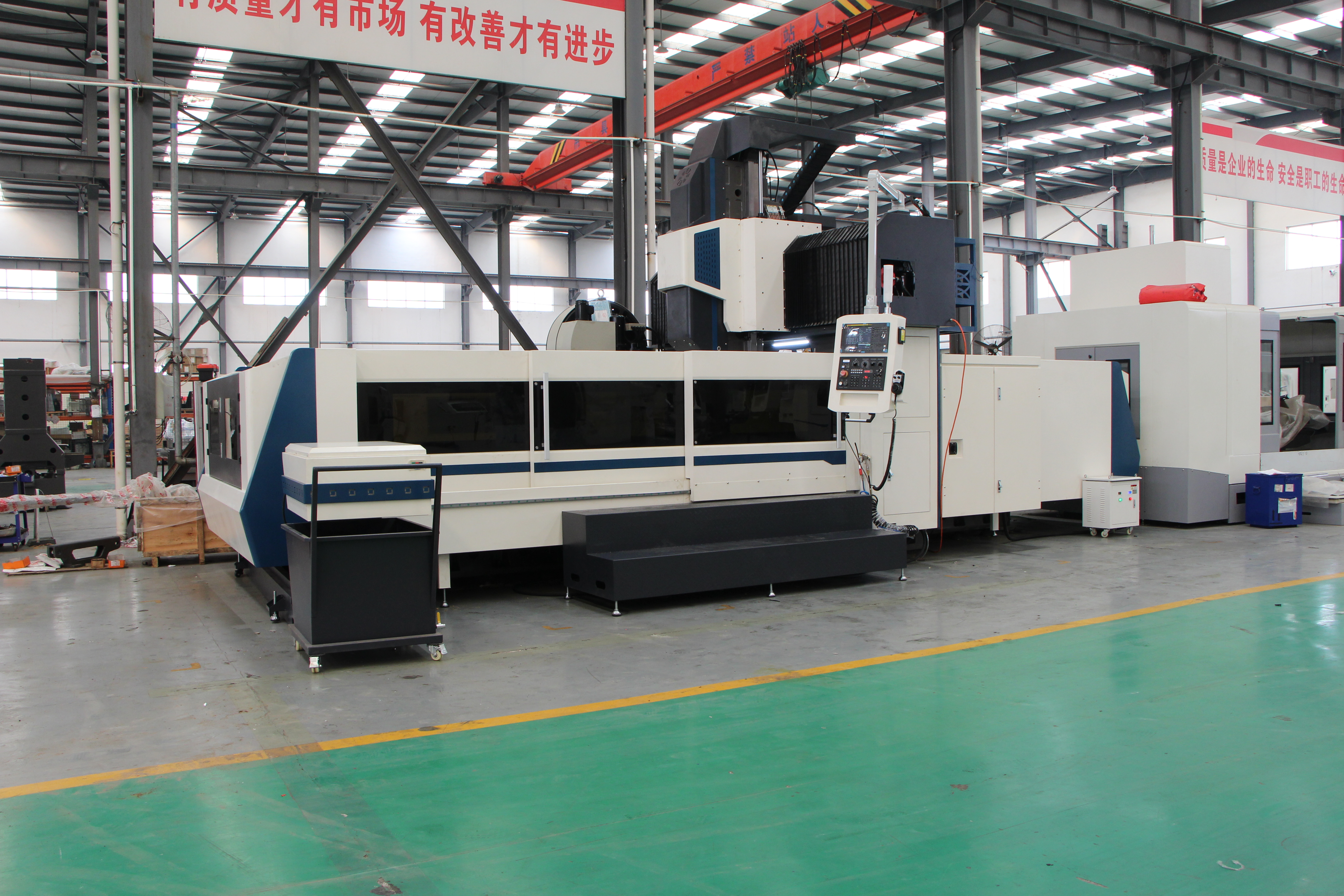

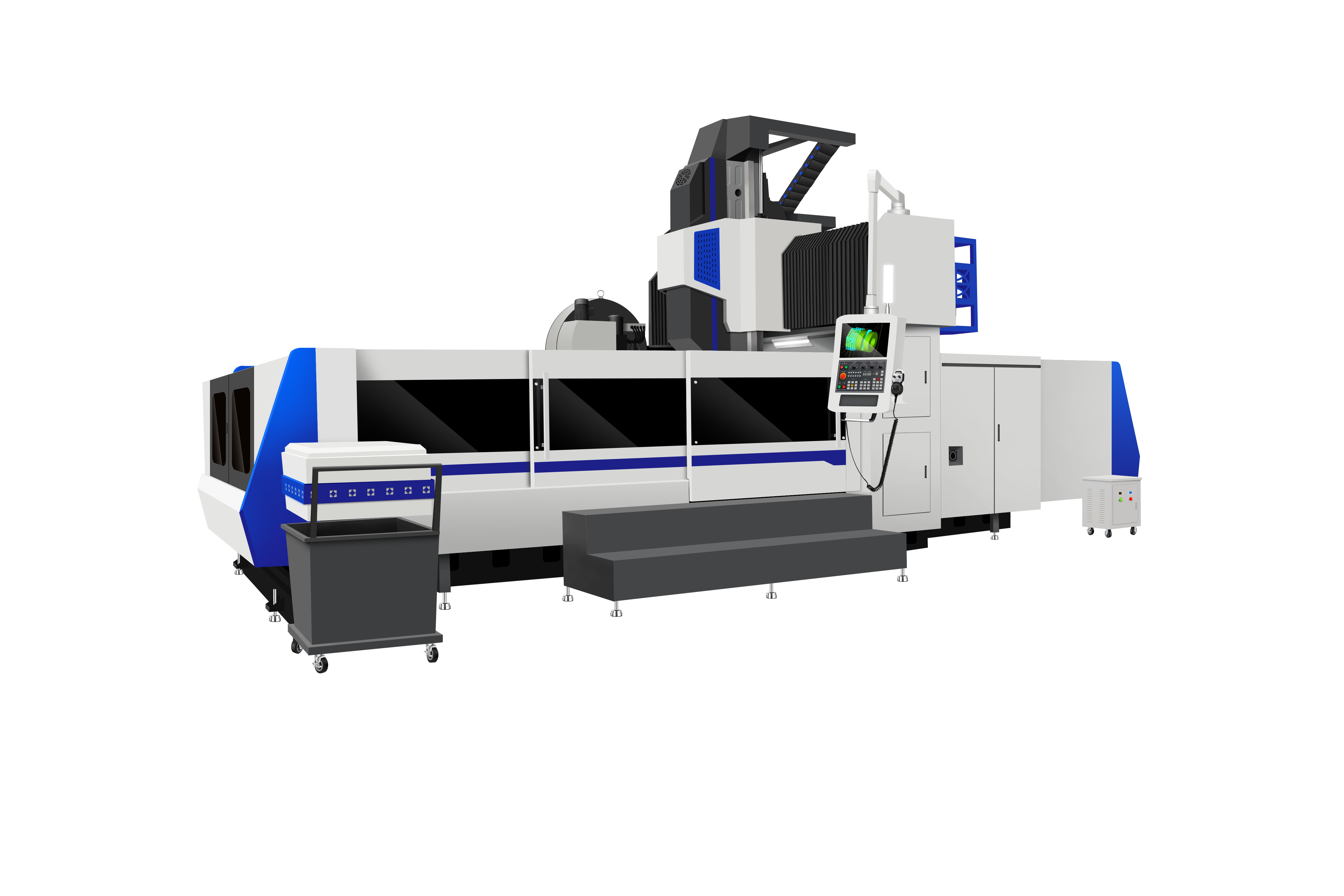

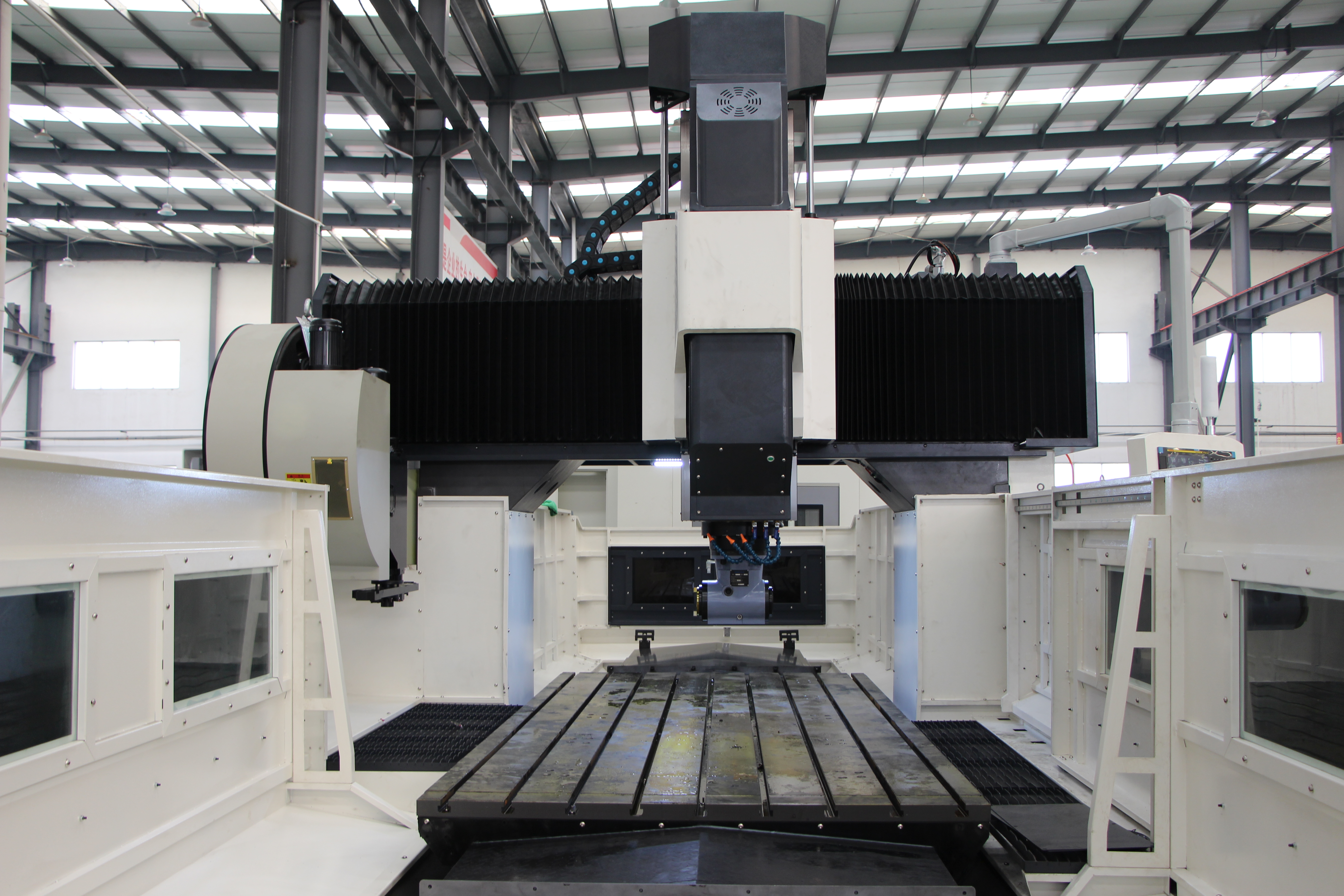

Gantry Machining Center GMC2518
NO.1 MACHINERY
8426193000
Detailed configuration

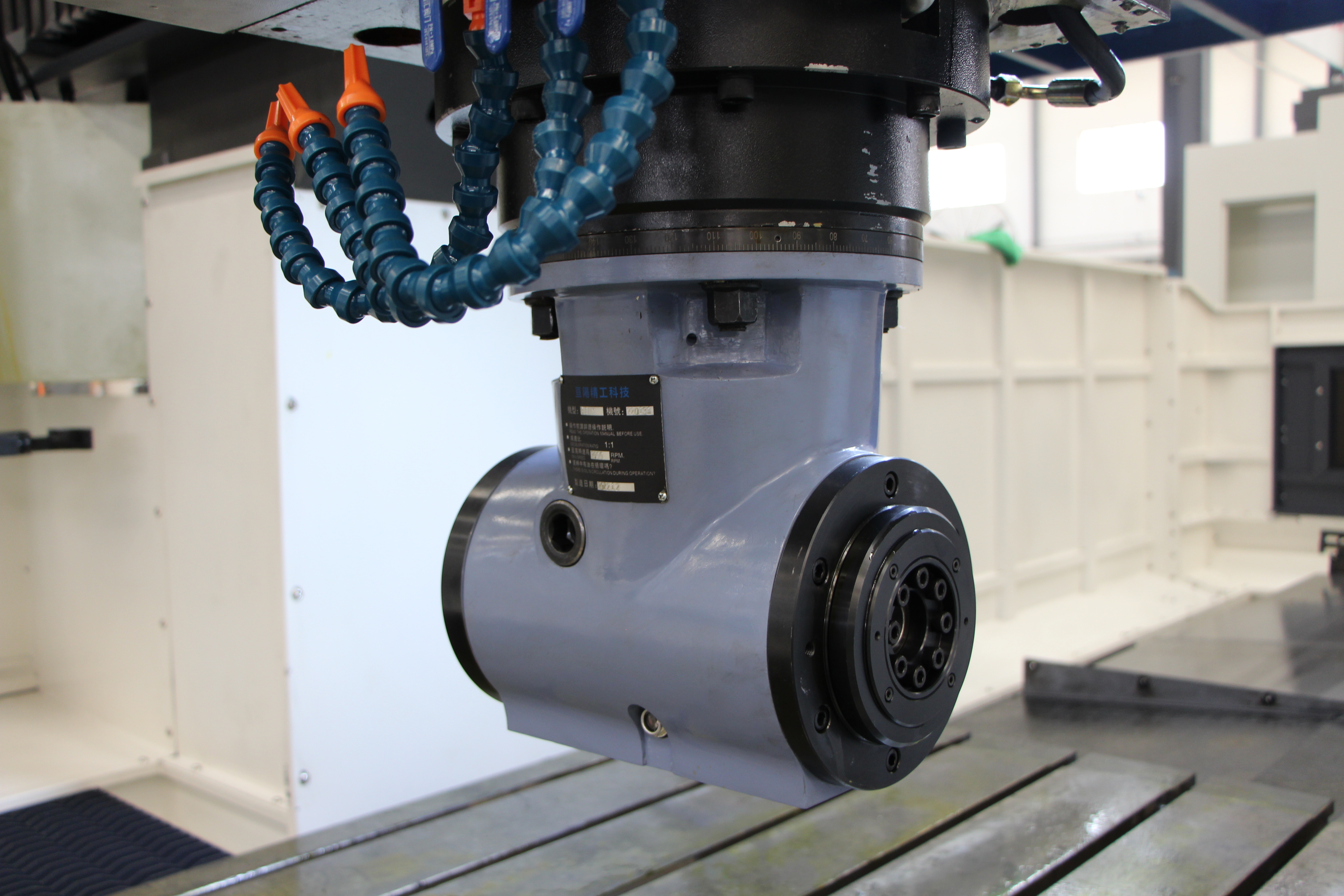

Spindle unite: KENTURNADA/VOLIS
Tool cylinder:TENIO
Bearing: SKF/NACHI
Coupling: R+W

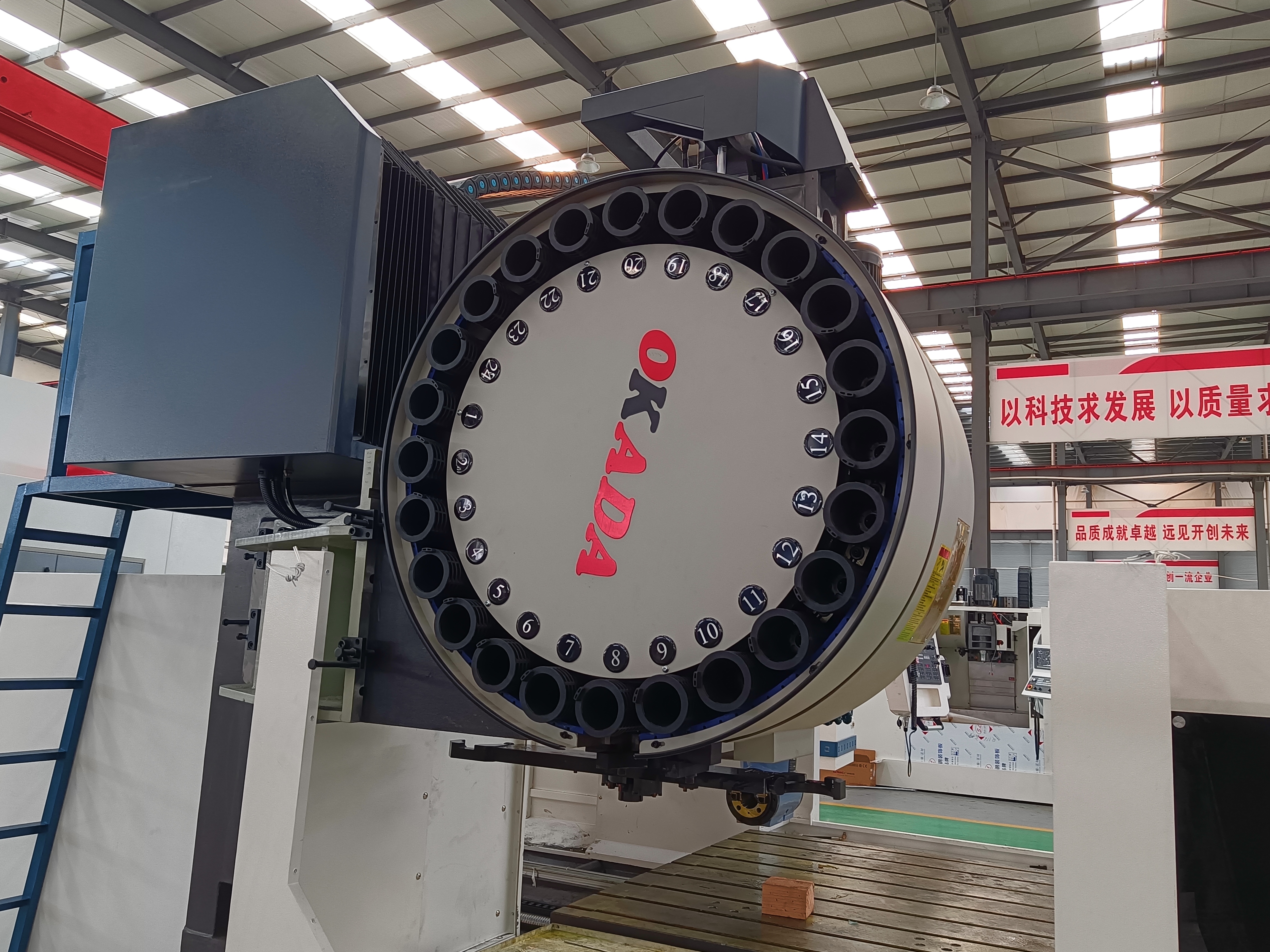

Tool magazine: OKADA/AIMACH
Lead screw: HINWIN/PMI
Linear rail: HIWIN/PMI
Lubrication pump: HERG
Guide rail protection: Haidong
Electricals: Schneider
Item model | Unit | GMC2518 | |

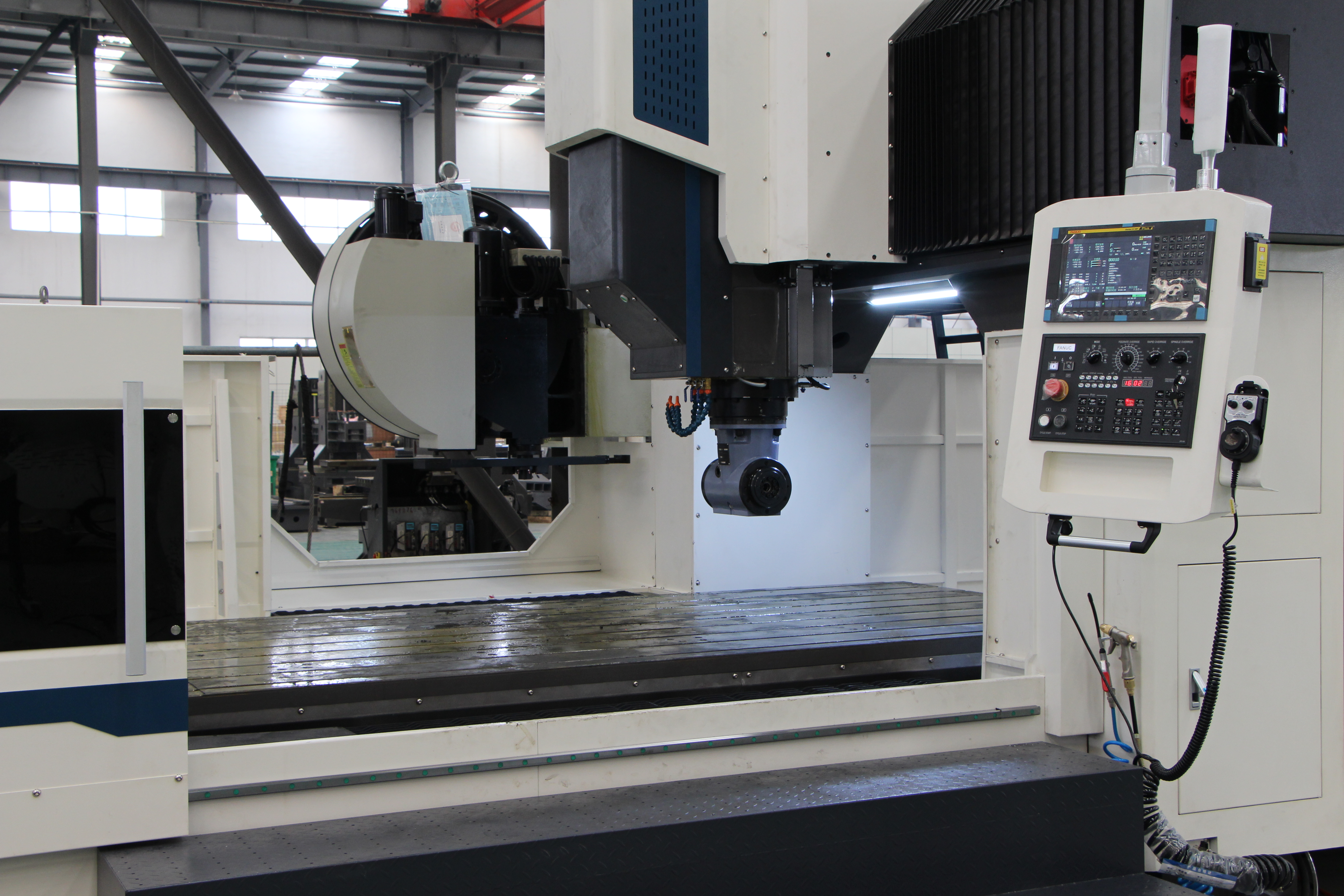

Size of worktable | mm | 1600*2500 | |
(X)Table move direction stroke | mm | 2500 | |
(Y)Spindle slide moving direction stroke | mm | 1800(2000) | |
(Z)Spindle up and down move direction stroke | mm | 1000 | |
Width of gantry | mm | 1800 | |
High of Gantry | mm | 1300 | |
Distance between spindle end face and worktable surface | mm | 150-1150 | |
T-shaped groove for table | mm | 9-22*180 | |
Spindle specifications | - | BT50-190 | |
Spindle transmission mode | Belt | rpm | 6000; (1.5:1) |
ZF+Belt | 6000; (4:1) | ||
Gear Head | 6000; (4.4:1) | ||
Fast moving feed speed | m | 15 | |
Cutting feed rate | m | 10 | |
X/Y/Z axis ball guide gauge/pitch | mm | 6312/5010/5010 | |
X/Y/Z axis quide gauge/slider quantity | - | X: 55/8 Roller rail Y: 55/4 Roller rail Z: Rectangle ram | |
X/Y/Z axis servo motor drive mode and drive ratio | - | Direct | |
Spindle motor recommended | kw | 22 | |
X/Y/Z three-phase servo motor recommended | NM | 38/30/30 | |
Dimension of optical machine | mm | 6650*3160*3961 | |
Load-bearing table | T | 7 | |
Casting Machine | T | 21 | |
