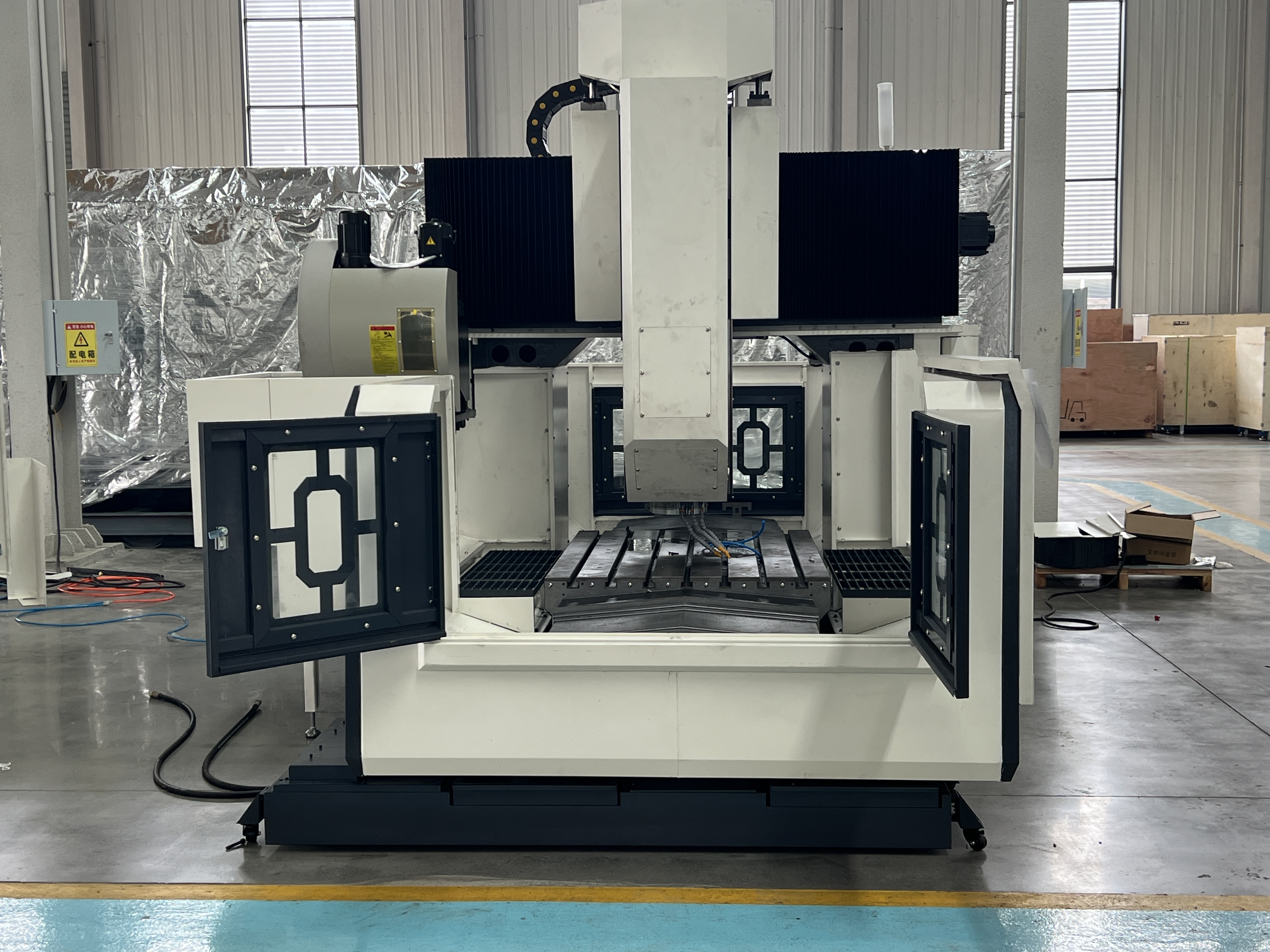

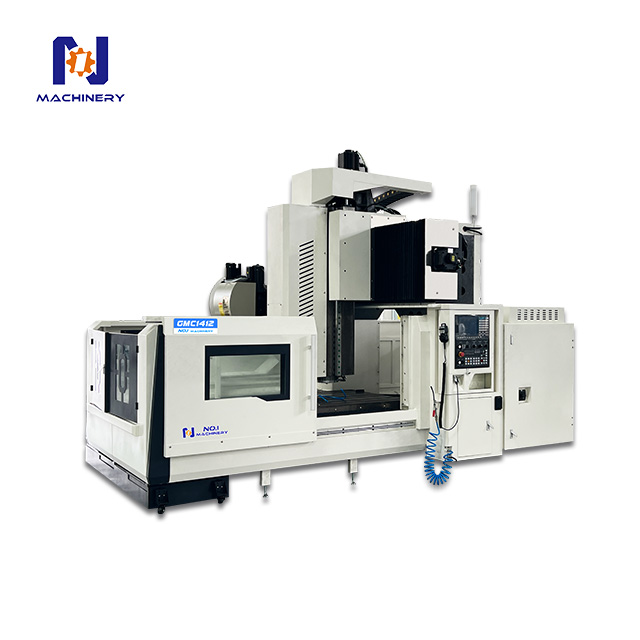

Gantry Machining Center GMC1412

Detailed configuration

• Spindle unite: KENTURN/OKADA/VOLIS

• Tool cylinder:TENIO

• Bearing: SKF/NACHI

• Coupling: R+W

• Tool magazine: OKADA/AIMACH

• Lead screw: HINWIN/PMI

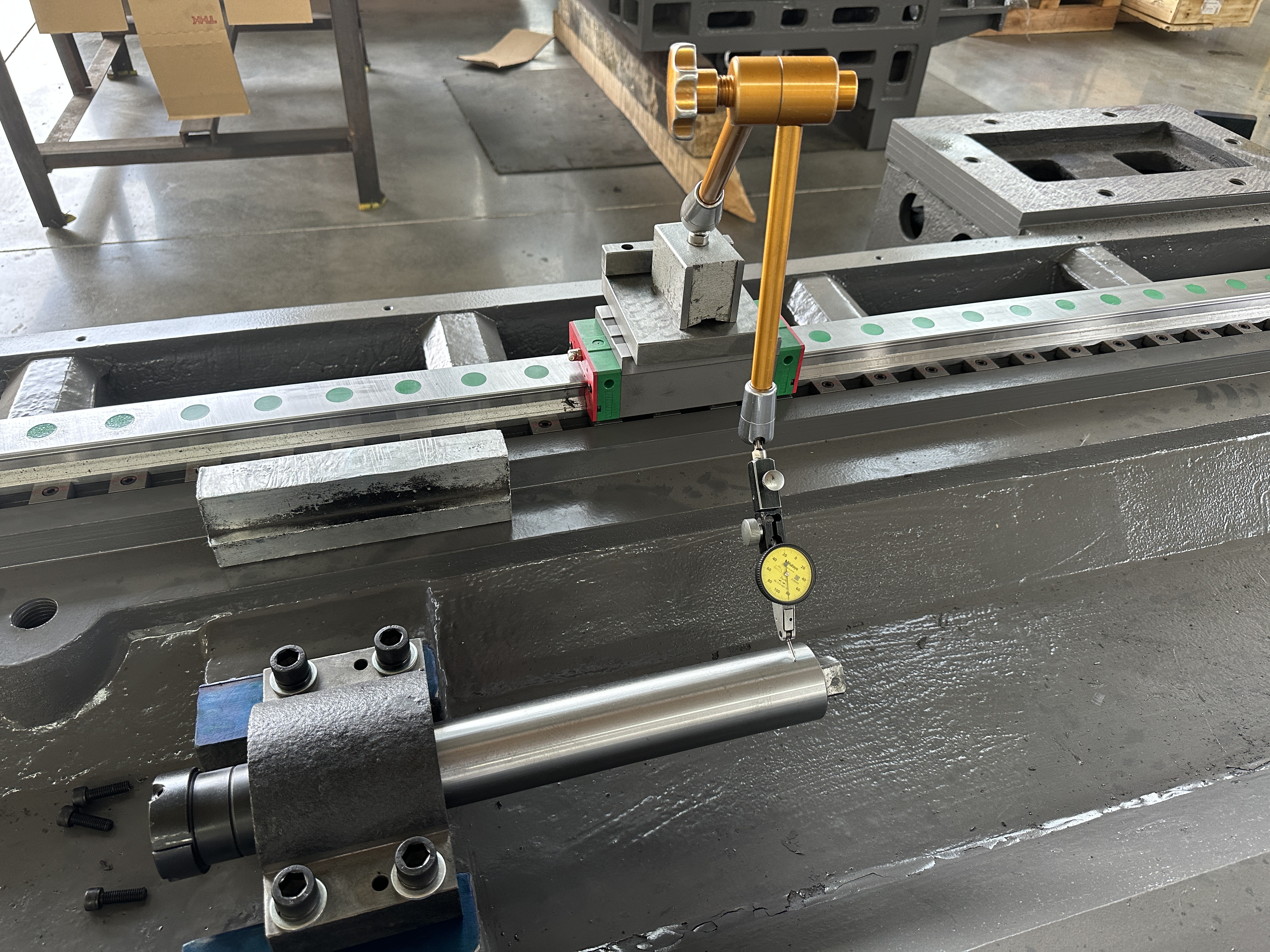

• Linear rail: HIWIN/PMI

• Lubrication pump: HERG

• Guide rail protection: Haidong

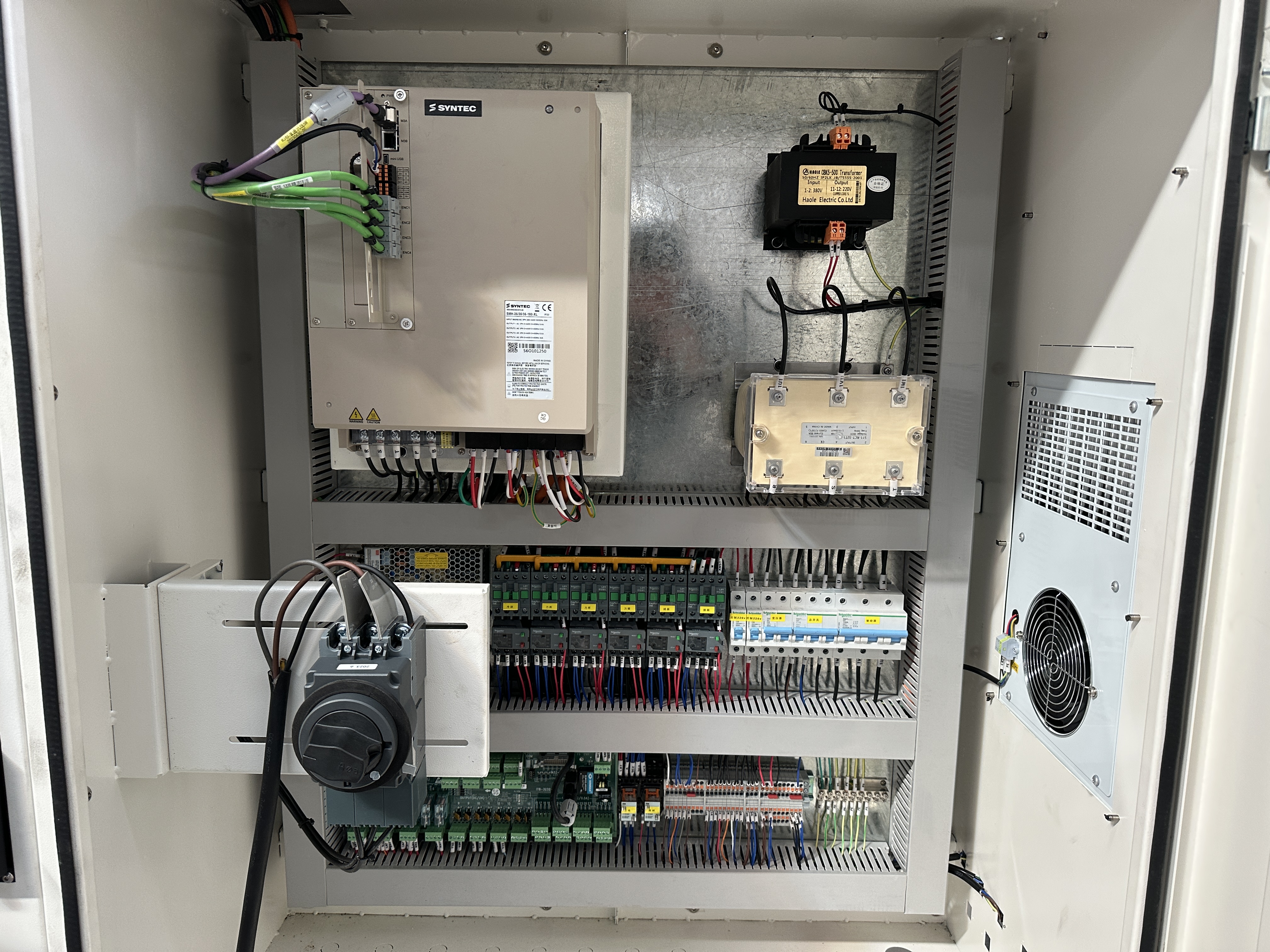

• Electricals: Schneider




• Item model	Unit	GMC1412
  Size of worktable	mm	1400*1050
  Maximum load-bearing table	Kg	1000
  X/Y/Z Stroke	mm	1350*1200*700
  Gantry Width	mm	1250
  Distance from spindle face to table	mm	130-880
  Spindle speed	rpm	8000
  Spindle form	-	BT40-160
  Spindle motor	kw	15
  X/Y/Z Axis feed motor power	NM	X:28NM; Y:28NM;Z:18NM
  X/Y/Z rail form	mm	45mm Roller rail
  X/Y/Z fast moving speed	Mm/min	24/24/24
  Cutting feed rate	Mm/min	6000

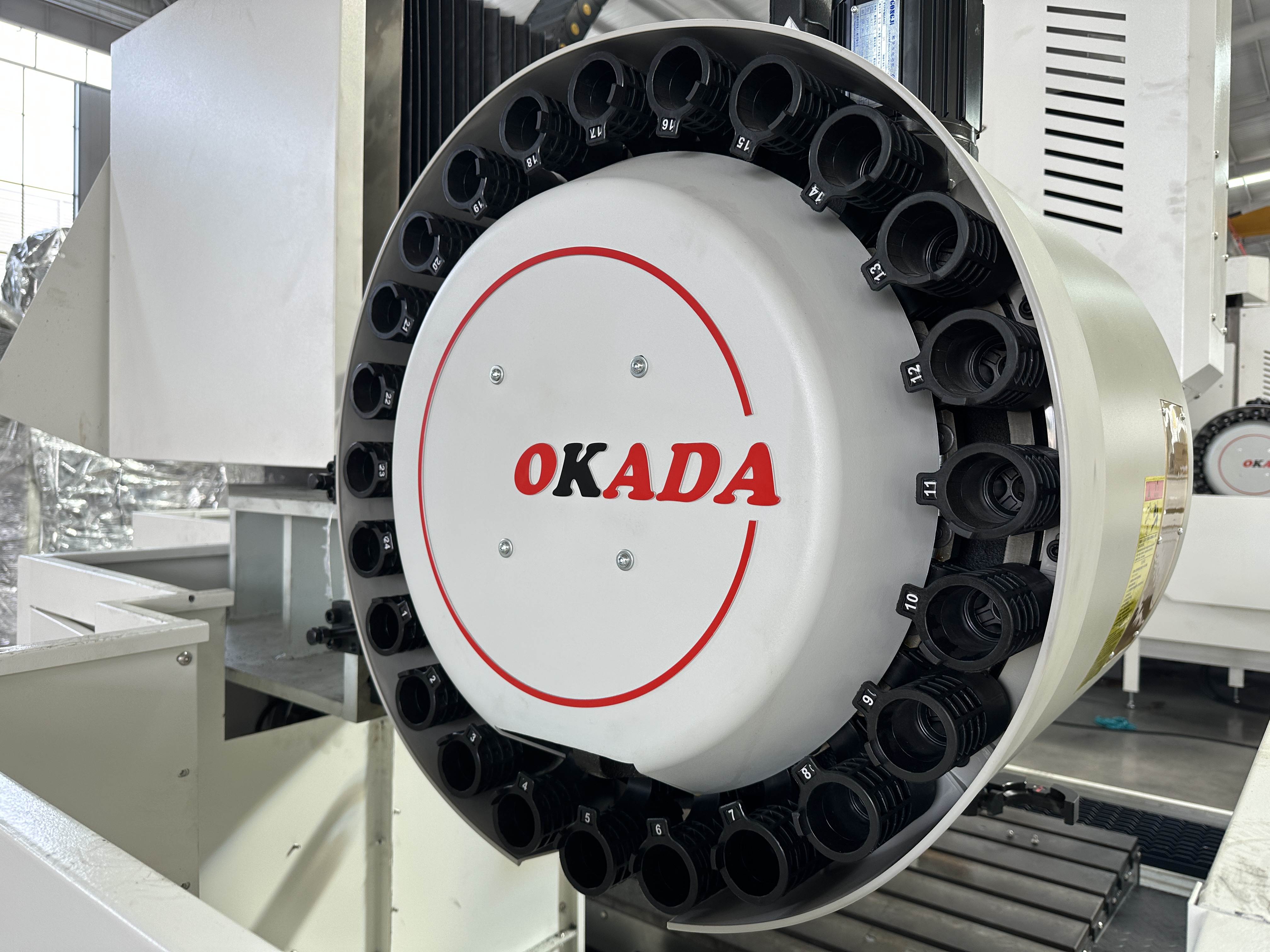

  Form of Tool Magazine	-	Disc
  The capacity of Tool storage	pcs	24
  Maximum tool length	mm	300
  Maximum tool weight	kg	20
  Tool change time	sec	2
  Positioning accuracy	mm	±0.008
  Repeat positioning accuracy	mm	±0.005
  Dimension of optical machine	Mm	4880*2700*3000
  Casting machine weight	T	8.5
