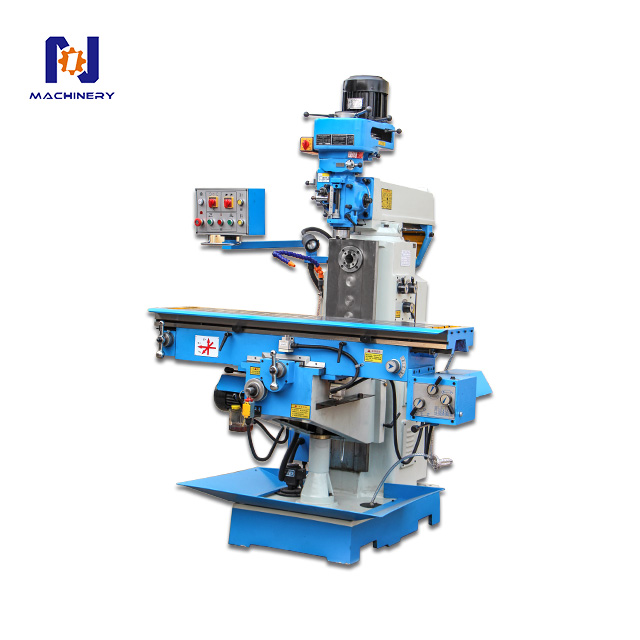

Drilling And Milling Machine ZX6336P
NO.1 MACHINERY
8459290000
optional configuration:
Spindle automatic feed
can be changed to three-axis CNC
Main motor optional large head 4KW
PARAMETER ITEM | UNIT | ZX6336P |
Drilling diameter | mm | 50 |
End mill maximum width | mm | 100 |
Maximum diameter of vertical milling | mm | 25 |
Boring maximum diameter | mm | 120 |
Maximum tapping diameter | mm | M16 |
Spindle taper hole | MT4/7:24:40 | |
Distance from spindle end face to table | mm | 80-550 |
Spindle speed range | rpm | 115-1750(Vertical) 40-1300(Horizontal) |
Spindle stroke(Z) | mm | 120(V) |
Working desk size | mm | 1500*360 |
Workbench stroke | mm | 1000*360*450 |
Dimensions | mm | 1600*1700*2200 |
Motor Power | kw | 1.5/2.2(Vertical) 4.0(Horizontal) |
Weight | kg | 2200/2350 |
