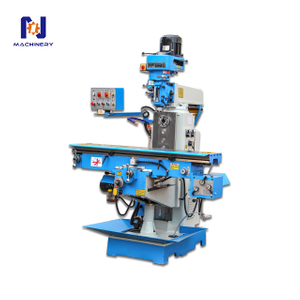

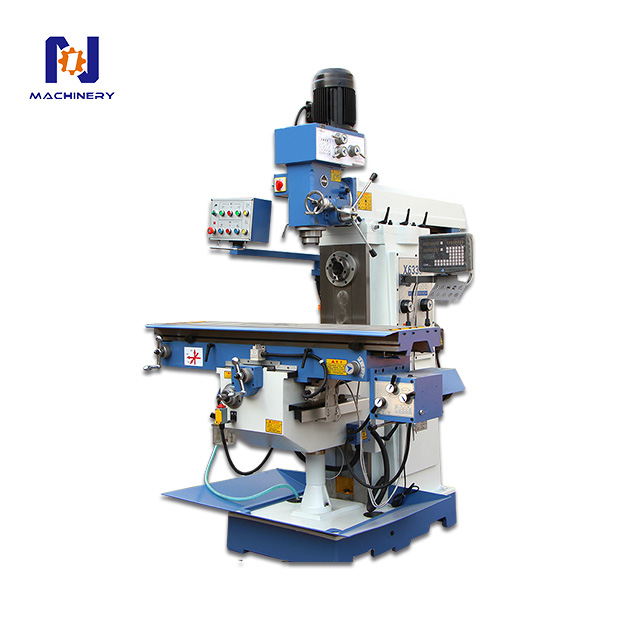

Drilling And Milling Machine ZX6332A
NO.1 MACHINERY
8459290000
optional configuration:
Spindle automatic feed
can be changed to three-axis CNC
Main motor optional large head 4KW
PARAMETER ITEM | UNIT | ZX6332P |
Drilling diameter | mm | 50 |
End mill maximum width | mm | 100 |
Maximum diameter of vertical milling | mm | 25 |
Boring maximum diameter | mm | 120 |
Maximum tapping diameter | mm | M16 |
Spindle taper hole | MT4/7:24:40 | |
Distance from spindle end face to table | mm | 80-480 |
Spindle speed range | rpm | 115-1750(Vertical) 40-1300(Horizontal) |
Spindle stroke(Z) | mm | 120(V) |
Working desk size | mm | 1500*320*400 |
Workbench stroke | mm | 1000/320/400 |
Dimensions | mm | 1720*1520*2225 |
Motor Power | kw | 1.5/2.2(Vertical) 2.2(Horizontal) |
Weight | kg | 1770/1900 |
