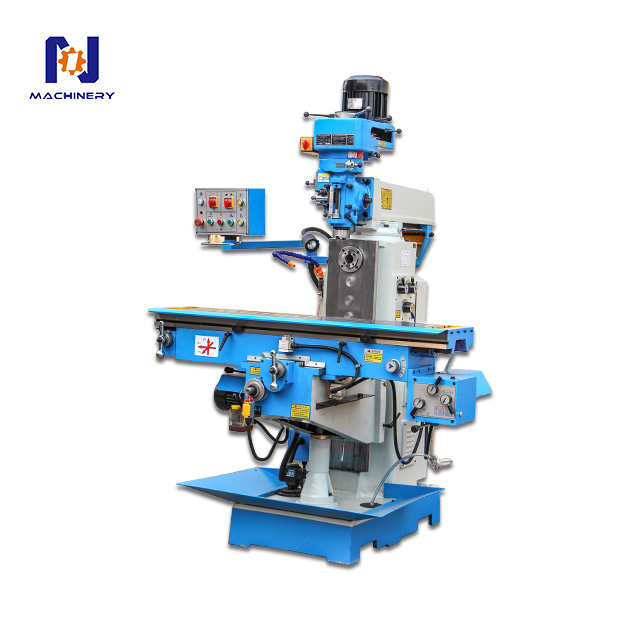

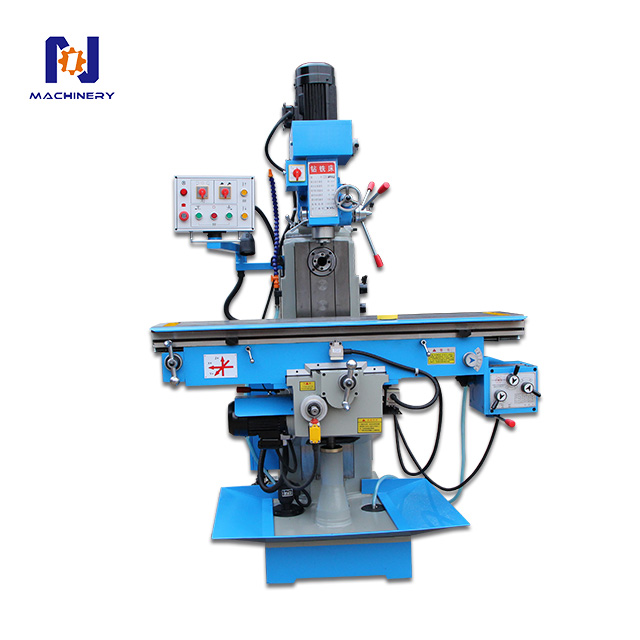

Turret Milling Machine X6332A
NO.1 MACHINERY
8459590000
optional configuration:
3 axis DRO
automatic feed
electronic pump
rotary table
clamping kit
pneumatic draw bar
diving head
tool
PARAMETER ITEM | UNIT | X6332A |
Size of worktable | mm | 1500*320 |
Table travel | mm | 1000/320/400 |
T-groove | - | 3-14*70 |
Vertical spindle taper | - | R8 |
Horizontal axis taper | - | ISO40 |
Spindle speed range | rpm | 50Hz:65-4500/60Hz:80-5440 |
Horizongtal axis speed range | - | 40-1300 |
Spindle stroke | mm | 127(V) |
Spindle feed range | mm | 0.045,0.086,0.142 |
Distance from spindle face to table | mm | 140-540 |
Distance from end face of horizontal shaft to table | mm | 0-400 |
Main motor power | mm | 3HP/3KW |
Weight of machine tool | kw | 2000 |
External dimensions | kg | 2200*1820*2350 |
