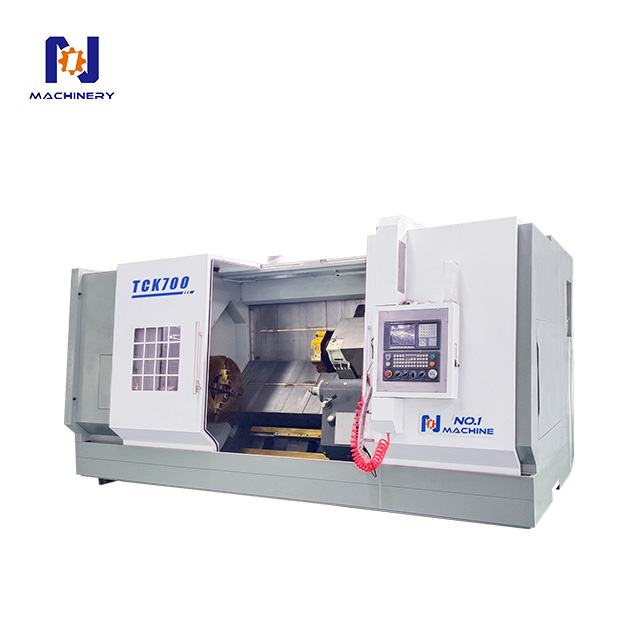

TCK700Y Slant Bed CNC Lathe Machine

Optional configuration:

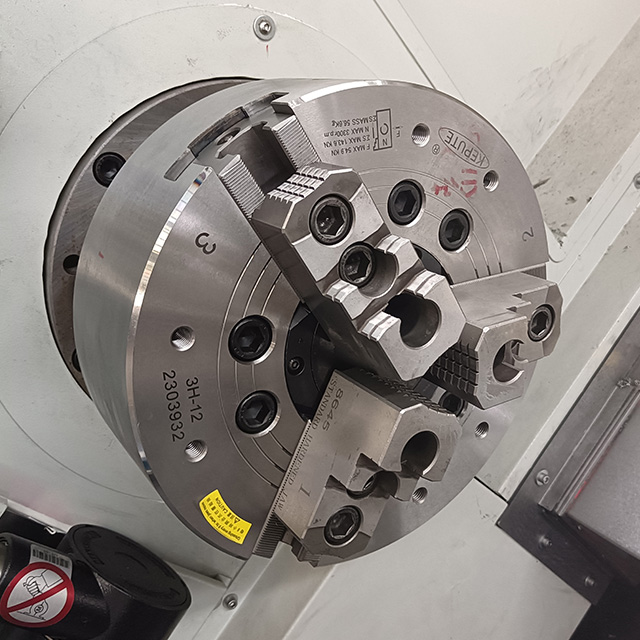

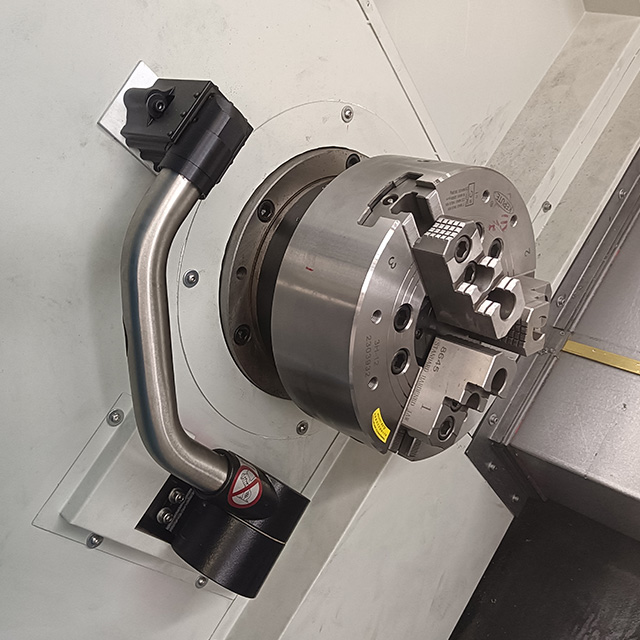

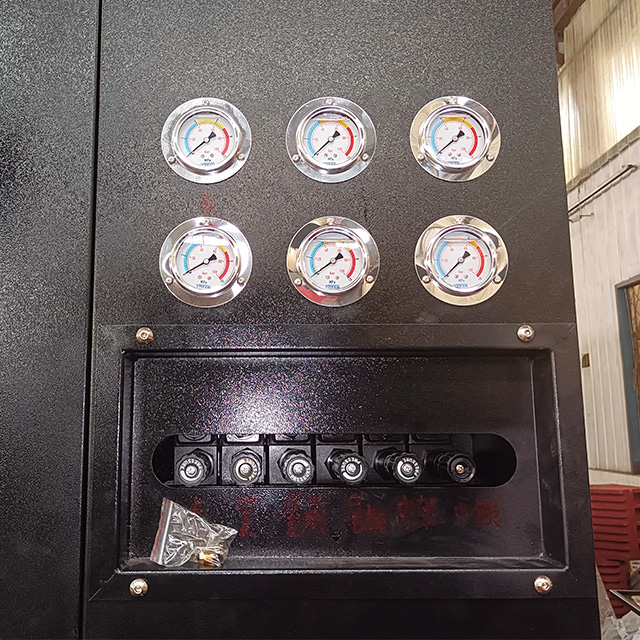

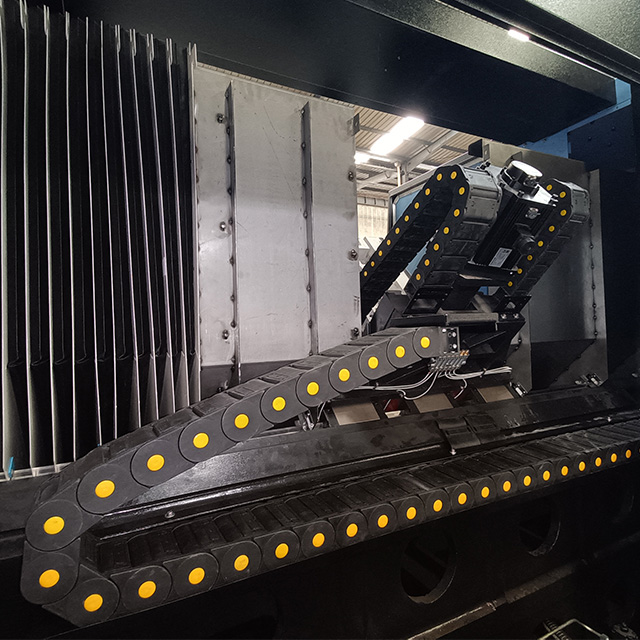

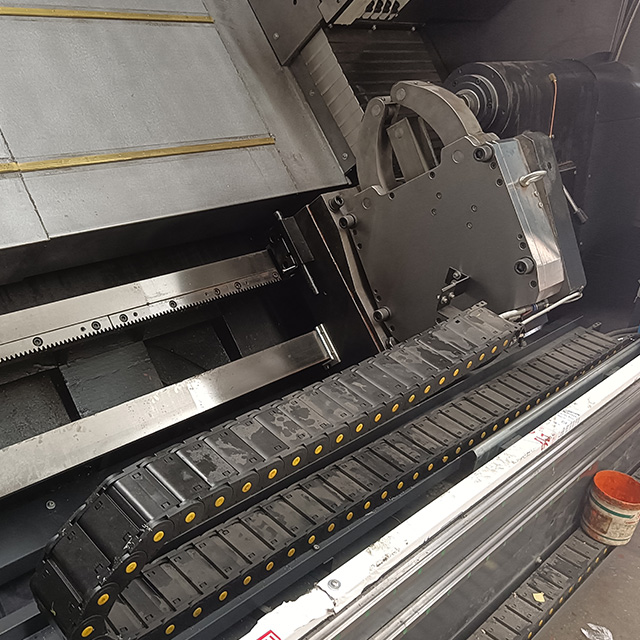

• Spindle Unite A2-8/10-lnch Hydraulic Chuck

• 12-Station Power Turret

• System:SYNTEL,Mitsubishi,Siemens,FANUC

• Optional Chain Chip Removal Machine

• Tool Setting Instrument/Workpiece Measurement

• Item Model	Unit	TCK700Y
  Maximum turning diameter of bed	mm	700
  The tilt of the bed	DEG	45.
  Maximum cutting length	mm	1000-4000
  Maximum cutting diameter	mm	650
  Maximum turning diameter on skateboard	mm	700
  Standard cutting diameter	mm	650
  Spindle end type	-	A2-11
  Spindle bore diameter	mm	105
  Maximum bar pass diameter	mm	105
  Single spindle spindle box-spindle speed range	rpm	2500
  Single spindle spindle box-spindle maximum output torque	nm	441
  Main motor output power	kw	15/22
  Standard Chuck diameter	inch	12’’
  X/Z axis speed	mm/min	16/24/12
  X/Z Axis stroke	mm	315/±50/150
  Tail travel	mm	850-3850
  Tail seat sleeve stroke	mm	/
  Taper of tailstock spindle bore	-	MT5
  Tail seat moving form	-	Hydraulic
  Standard tool holder form	-	12-station power tower
  Adjacent tool change time	s	0.5
  Tool dimensions-cylindrical cutters	mm	32*32
  Tool size-boring bar diameter	mm	32
  Can the cutter head be selected nearby	mm	YES
  Weight of machine tool	kg	8000
  Maximum load-bearing-disc class	kg	/
  Maximum bearing-shaft class	kg	/
  Machine tool dimensions	mm	6000*2100*2200
