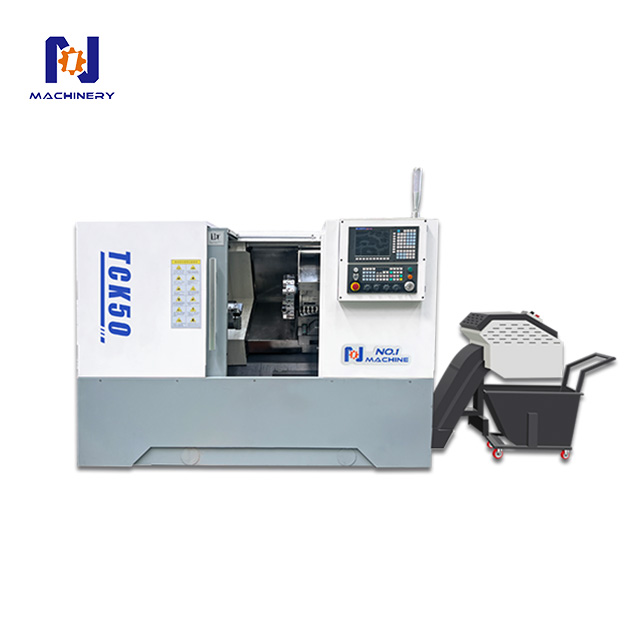

TCK50A Slant Bed CNC Lathe Machine

Optional configuration:

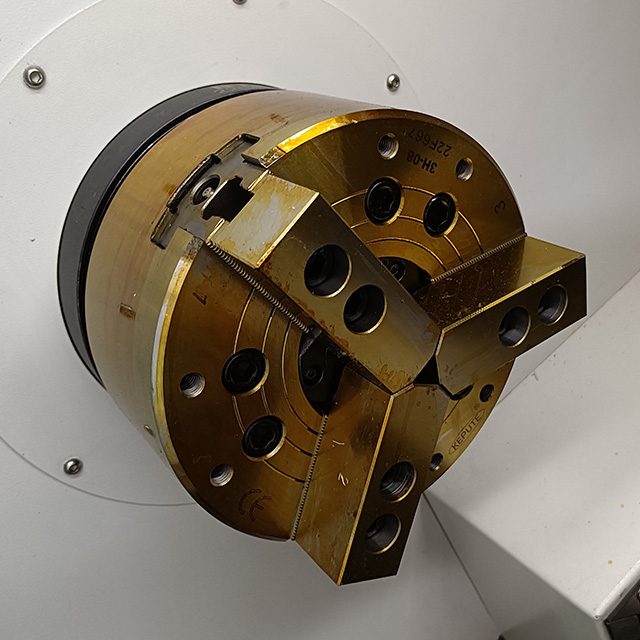

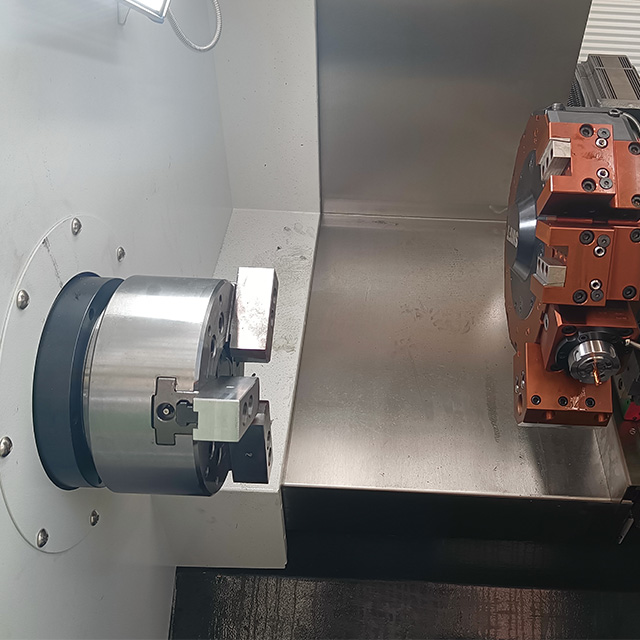

• Spindle Unite A2-8/10-lnch Hydraulic Chuck

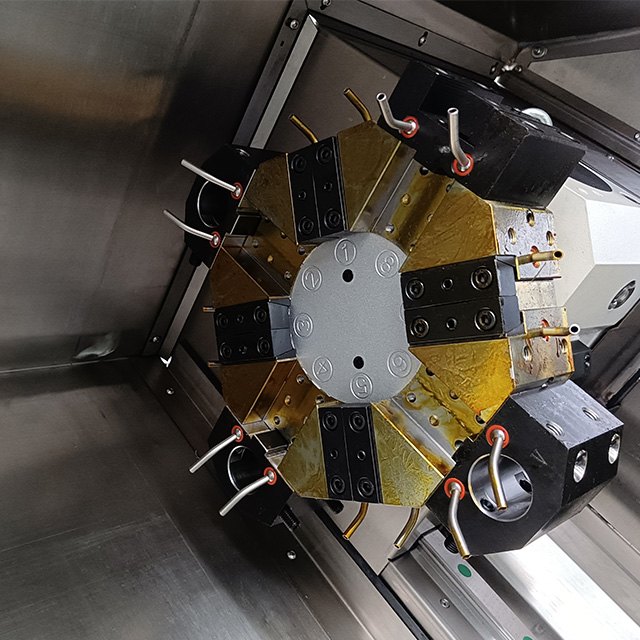

• 12-Station Power Turret

• System:SYNTEL,Mitsubishi,Siemens,FANUC

• Optional Chain Chip Removal Machine

• Tool Setting Instrument/Workpiece Measurement

• Item Model	Unit	TCK50A
  Maximum turning diameter of bed	mm	500
  Maximum cutting length	mm	500
  Maximum cutting diameter	mm	360
  Maximum turning diameter on skateboard	mm	300
  Standard cutting diameter	mm	240
  Spindle end type	-	A2-6
  Spindle bore diameter	mm	65
  Maximum bar pass diameter	mm	50
  Single spindle spindle box-spindle speed range	rpm	50-4500
  Single spindle spindle box-spindle maximum output torque	nm	177
  Main motor output power	kw	11/15
  Standard Chuck diameter	inch	8’’
  X/Z axis speed	mm/min	30/30
  X/Z Axis stroke	mm	200/550

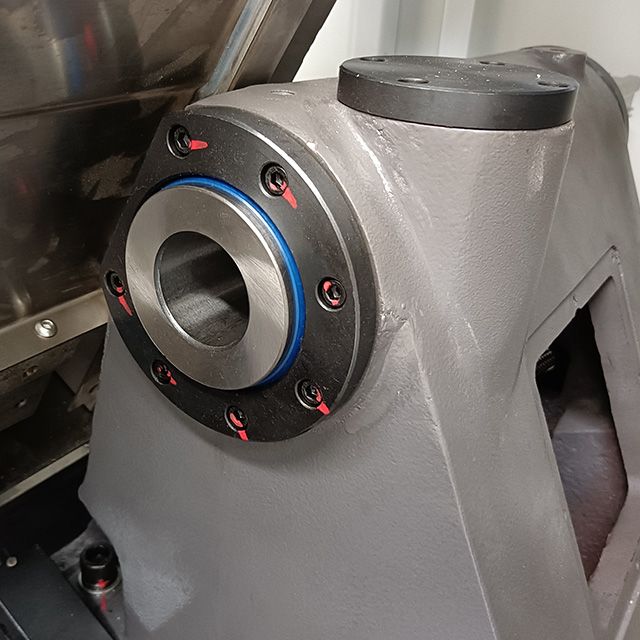

  Tail travel	mm	450
  Tail seat sleeve stroke	mm	60
  Taper of tailstock spindle bore	-	MT4
  Standard tool holder form	-	12-station power tower
  Maximum drilling capability of power tools	mm	12*0.2
  Maximum tapping capability of power tools	mm	M10*1.5
  Maximum milling  capability of power tools	mm	12*10*40
  Tool dimensions-cylindrical cutters	mm	25*25
  Tool size-boring bar diameter	mm	40/32/25/20
  Can the cutter head be selected nearby	mm	YES
  Weight of machine tool	kg	3100
  Maximum load-bearing-disc class	kg	150
  Maximum bearing-shaft class	kg	400
  Machine tool dimensions	mm	3660*2200*2150
