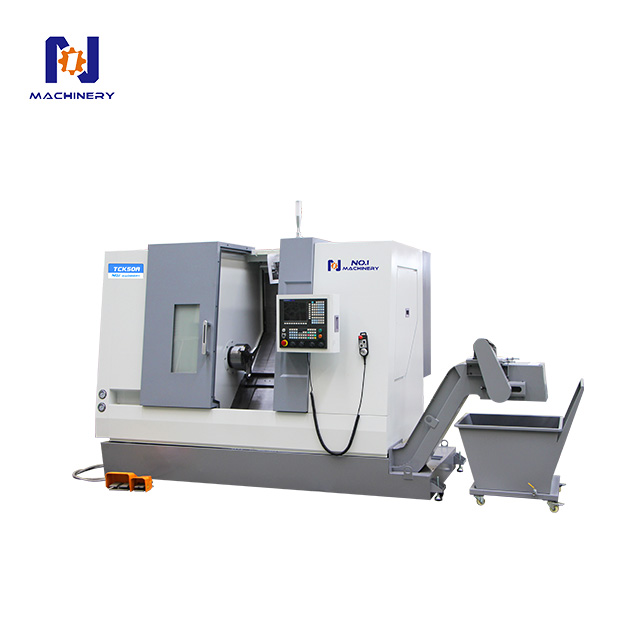

TCK56 Slant Bed CNC Lathe Machine

Optional configuration:

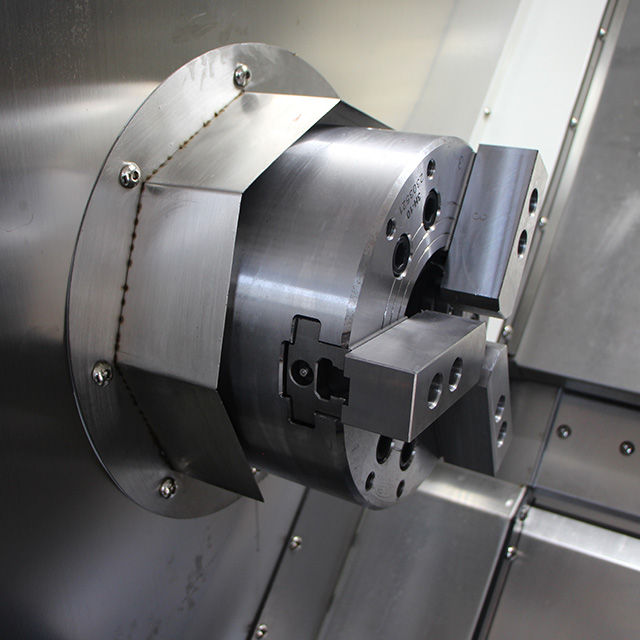

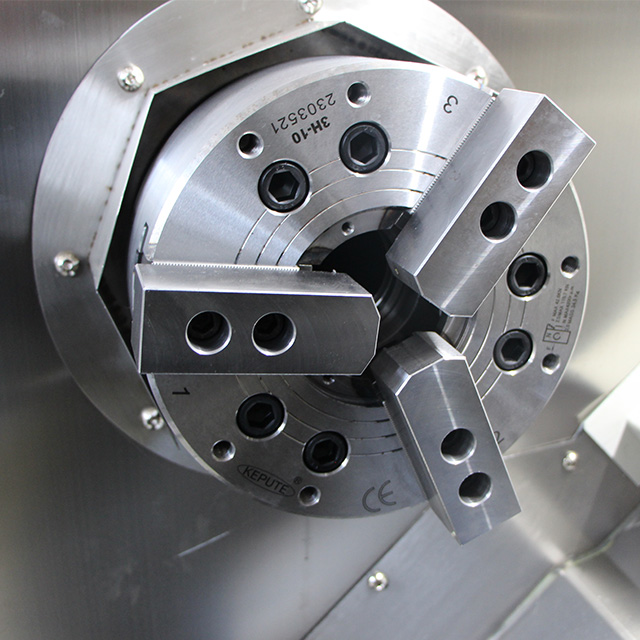

• Spindle Unite A2-8/10-lnch Hydraulic Chuck

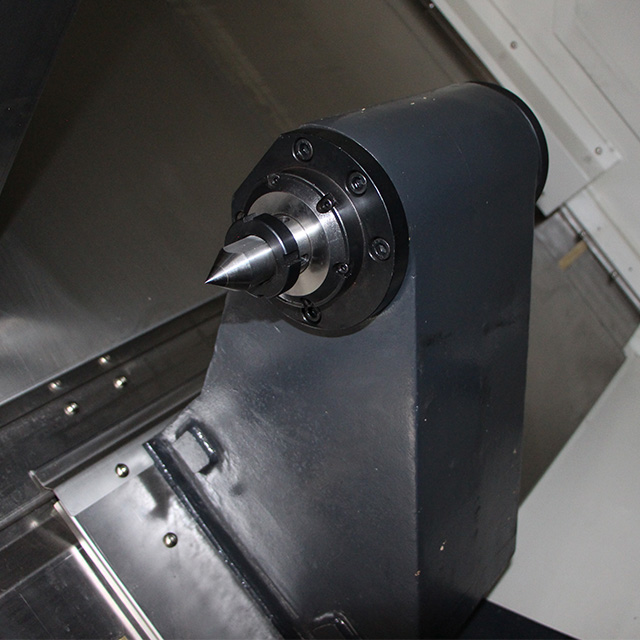

• Servo Programmable Tailstock


• System:SYNTEL,Mitsubishi,Siemens,FANUC

• Optional Chain Chip Removal Machine

• Tool Setting Instrument/Workpiece Measurement

• Item Model	Unit	TCK56
  Maximum turning diameter of bed	mm	560
  Maximum cutting length	mm	400/900
  Maximum cutting diameter	mm	280
  Maximum turning diameter on skateboard	mm	350
  Standard cutting diameter	mm	280
  Spindle end type	-	A2-6
  Spindle bore diameter	mm	65
  Maximum bar pass diameter	mm	50
  Single spindle spindle box-spindle speed range	rpm	50-4500
  Single spindle spindle box-spindle maximum output torque	nm	177
  Main motor output power	kw	15/11
  Standard Chuck diameter	inch	8’’
  X/Z axis speed	mm/min	30/30
  X/Z Axis stroke	mm	200/550-1050
  Tail travel	mm	450/900
  Tail seat sleeve stroke	mm	-
  Taper of tailstock spindle bore	-	MT5

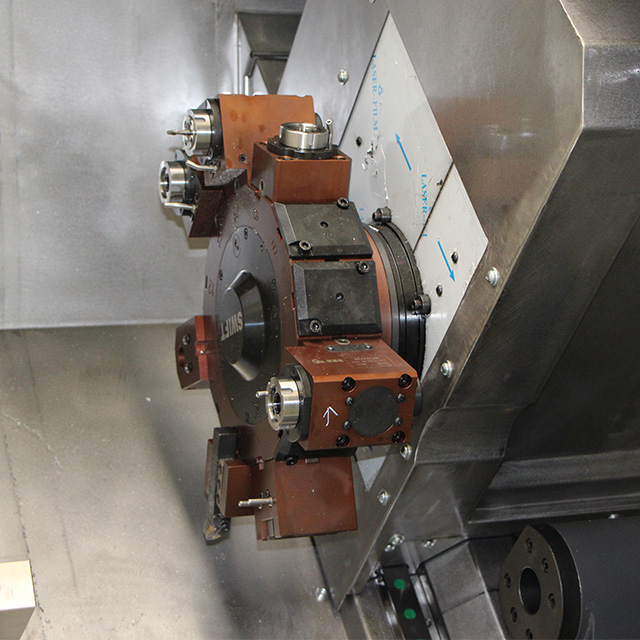

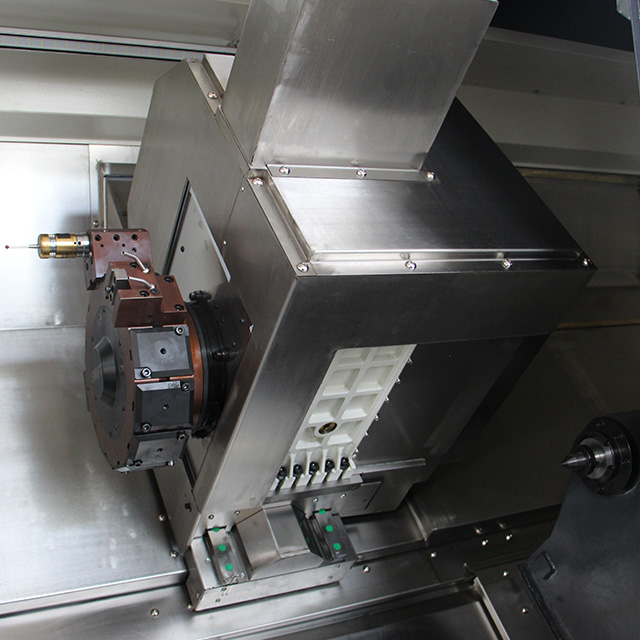

  Standard tool holder form	-	(Horizontal) 8/12-station servo tower
  Maximum drilling capability of power tools	mm	-
  Maximum tapping capability of power tools	mm	-
  Maximum milling  capability of power tools	mm	-
  Tool dimensions-cylindrical cutters	mm	20*20
  Tool size-boring bar diameter	mm	25
  Can the cutter head be selected nearby	mm	YES
  Weight of machine tool	kg	4050/4500
  Maximum load-bearing-disc class	kg	200
  Maximum bearing-shaft class	kg	500
  Machine tool dimensions	mm	3100/3570*1860*1850
