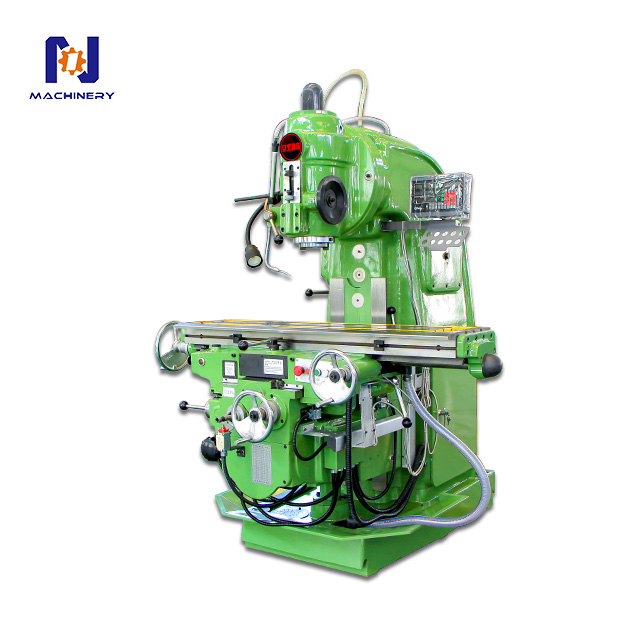

Vertical milling machine (heavy duty) XA5032
NO.1 MACHINERY
8459590000
PARAMETER ITEM | UNIT | XA5032 |
Working desk size | mm | 1325*320(1600*320) |
Work table T-slot number / width / spacing | mm | 3-18-70 |
Workbench maximum overload | kg | 500 |
X direction (table longitudinal) manual / maneuver | mm | 700/680 |
Y direction (slide lateral) manual/ maneuver | mm | 255/240 |
Z direction (lifting table vertical) manual / maneuver | mm | 370/350 |
Fast moving speed | mm/min | X:2300 Y:1540 Z:770 |
Spindle aperture | mm | 29 |
Spindle speed range | rpm | 30-1500 |
Spindle speed series | steps | 18 |
Maximum rotation angle of end mill head | 。 | ±45。 |
Spindle center to table distance | mm | 60-430 |
Spindle motor power | kw | 7.5 |
Dimensions | mm | 2294*1770*1904 |
Machine weight (about) | kg | 3200 |
