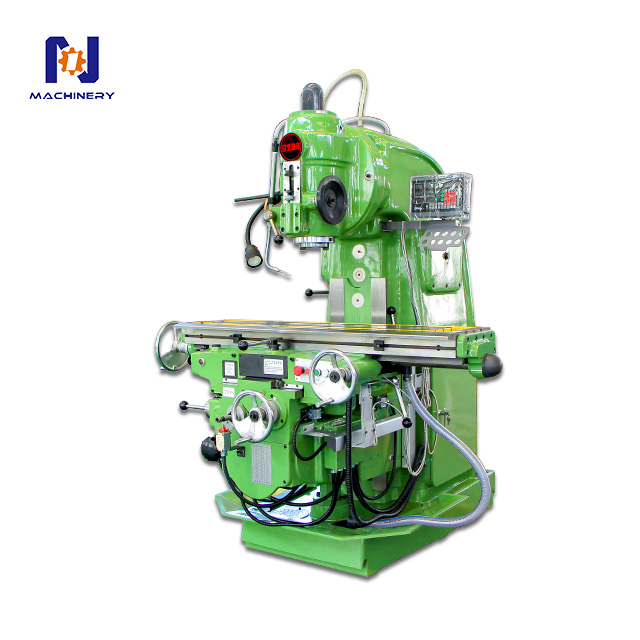

Vertical milling machine (heavy duty) XA5040

FEATURES
  • The base, fuselage, worktable, middle slide, lifting slide, spindle box and other maincomponents are made of high-strength material casting, and artificial aging treatmentto ensure the stability of the machine tool long-term use.
SKU:
Availability:
Inquire

twitter sharing button
facebook sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

  • Vertical milling machine (heavy duty) XA5040

  • NO.1 MACHINERY

  • 8459590000

XA5040 Vertical milling machine (heavy duty)

  • PARAMETER ITEM

    UNIT

    XA5040

    Working desk size

    mm

    1700*400(2000*400)

    Work table T-slot number / width / spacing

    mm

    3-18-90

    Workbench maximum overload

    kg

    800

    X direction (table longitudinal) manual / maneuver

    mm

    900/880(1100 optional)

    Y direction (slide lateral) manual/ maneuver

    mm

    315/300

    Z direction (lifting table vertical) manual / maneuver

    mm

    385/300

    Fast moving speed

    mm/min

    X:2300

    Y:1540

    Z:770

    Spindle aperture

    mm

    29

    Spindle speed range

    rpm

    30-1500

    Spindle speed series

    steps

    18

    Maximum rotation angle of end mill head

    。

    ±45。

    Spindle center to table distance

    mm

    130-515

    Spindle motor power

    kw

    11

    Dimensions

    mm

    2556*2159*2298

    Machine weight (about)

    kg

    4250
Milling Chuck
1 Set
7:24middle set
1 Set
Double-head socket wrench
1 Set
Hexagon socket wrench
1 Set
Anchor bolts
1 Set
Single-head spanner
1 Set
download XA5040 Vertical Milling Machine.pdf
