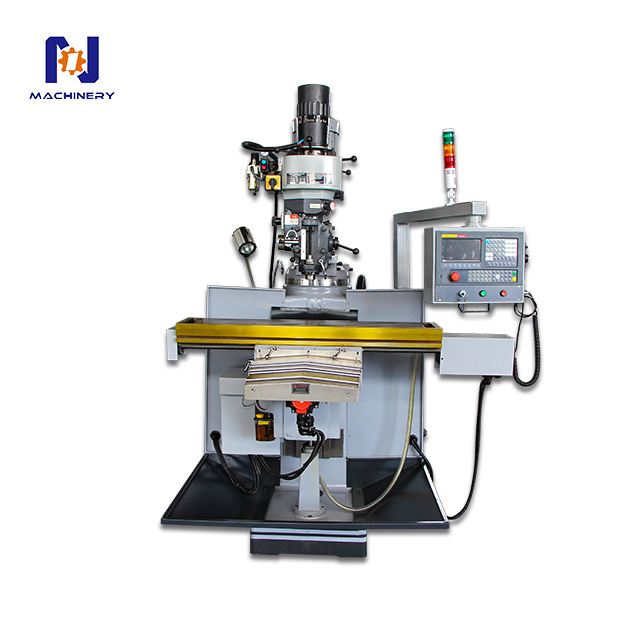

CNC turret milling machine 5H
NO.1 MACHINERY
8459590000
Optional configuration
CNC Four-axis turntable
GSK KND System
Standing and Lying
PARAMETER ITEM | UNIT | 4H/5H(CNC) |
Size of worktable | mm | 1270*254 |
Table travel | mm | 800*400*400 |
T-groove
| - | 3-16*65 |
Spindle Taper | - | R8/NT40 |
Horizontal axis taper | Iv | - |
Three-axis torque | - | 7/7/10 |
Spindle speed range (series)) | rpm | 66-5440/(16-speed) 50Hz |
Horizontal axis speed range (series) | rpm | - |
Spindle stroke | mm | 127 |
Spindle feed range (series) | mm | 0.045,0.086,0.142(3) |
Distance from spindle face to table | mm | 400/470 |
Distance from center of horizontal axis to table | mm | - |
Main motor power | kw | 3HP/5HP |
Milling head turn left and right | 。 | ±90. |
The milling head turns back and forth | 。 | ±45. |
Weight of machine tool | kg | 1650 |
External dimensions | mm | 1600*180*2250 |
CNC operating system | - | GUANGTAI/GSK |
