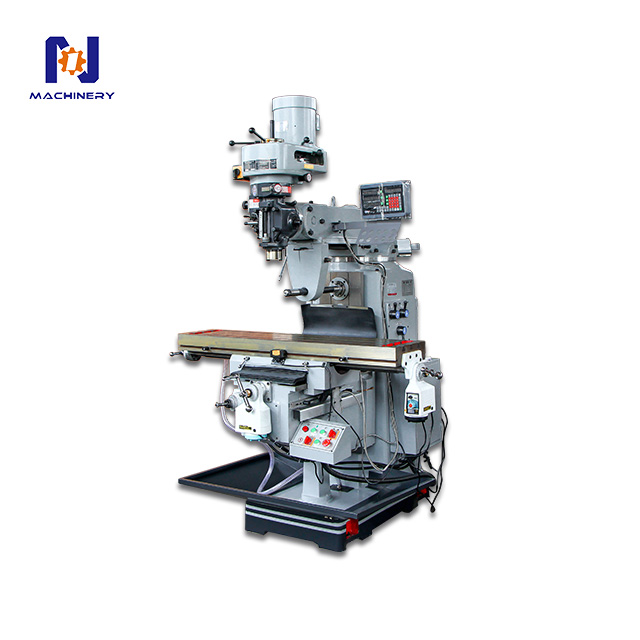

(Horizontal Milling) Turret Milling Machine 5HW
NO.1 MACHINERY
8459590000
optional configuration:
3 axis DRO
X/Y automatic feed
electronic oil pump
rotary table
clamping kit
pneumatic draw bar
dividing head
tool
PARAMETER ITEM | UNIT | 5H |
Workbench area | mm | 1370/1500*305 |
Worktable longitudinal stroke | mm | 880 |
Worktable lateral travel | mm | 400 |
Worktable vertical stroke | mm | 500 |
T-slot number and size | - | 3*16 |
Telescopic arm stroke | mm | 470 |
Spindle end to table distance | mm | 500 |
Spindle hole taper | - | MT40 |
Spindle travel | mm | 127 |
Spindle speed range | rpm | V80-5440(16 steps) |
Spindle feed | mm | 0.045,0.086,0.142(3) |
Spindle motor power | kw | 5HP |
Milling head left and right | 。 | 90。 |
Milling head back and forth | 。 | 45。 |
Package size | mm | 1780*1650*2080 |
Weight | kg | 1850 |
