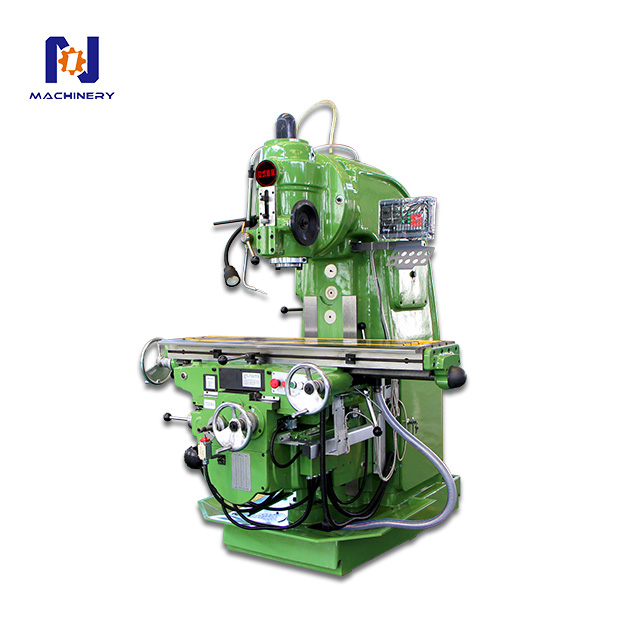

X5032 Vertical Milling Machine

Machine tool accessories：

• Milling Chuck

• 7:24 middle set

• Horizontal milling arbor assembly

• Single-head spanner

• Anchor bolts

• Double-head socket wrench

• PARAMETER ITEM	UNIT	X5032
  Working desk size	mm	1500*320
  Table travel	mm	1000*320*400
  Workbench maximum overload	kg	200
  X direction (table longitudinal) Manual / Auto	mm	1000
  Y direction (slide lateral) Manual / Auto	mm	320
  Z direction (lifting table vertical) Manual / Auto	mm	380
  Fast moving speed	mm/min	15-370
  Spindle aperture	mm	29
  Spindle speed range	rpm	40-1300
  Spindle speed series	steps	18
  Maximum rotation angle of end mill head	。	±45。
  Spindle center to table distance	mm	60-430
  Spindle motor power	kw	4
  Dimensions	mm	2294*1770*1904
  Machine weight (about)	kg	1800
