CK6180 Flat Bed CNC Lathe Machine

optional configuration:

• 8 station electric knife tower

• 300mm hydraulic chuck/ hydraulic chuck

• system:STNTEC,Mitsbishi,Siemens,FANUC

• Spindle through hole 105

• 7.5KW servo main motor

• Item Model	Unit	CK6180
  Maximum turning diameter of bed	mm	800
  Maximum diameter of rotation on skateboard	mm	450
  Maximum workpiece length	mm	1000-5000
  Width of guide rail	mm	600/755
  Spindle hole	mm	105
  Spindle end form	-	A2-11
  Spindle speed series		4 speed endless transmission
  Spindle speed range	rpm	30-84/53-150/125-350/300-855

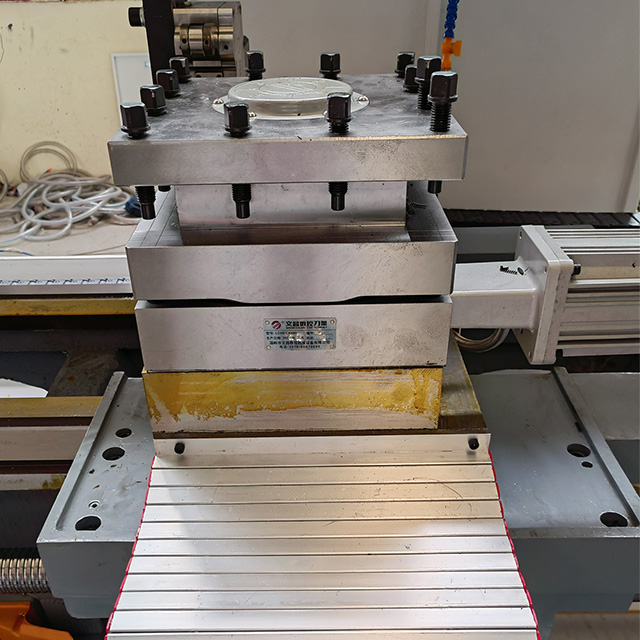

  Type of tool holder	-	4 station electric tool holder
  Tool dimensions	mm	32X32
  X/ZAxis stroke	mm	340/1000-3000
  X/Z axis fast feed speed	mm/min	6000/8000
  Diameter of tailstock sleeve	mm	100
  Taper of tailstock sleeve	-	MT6
  Tail seat sleeve stroke	mm	250
  Main motor power	kw	11
  Cooling motor power	kw	0.125
  Weight of machine tool	kg	4000-7000
  External dimensions	mm	2800-7200X1820X1780
