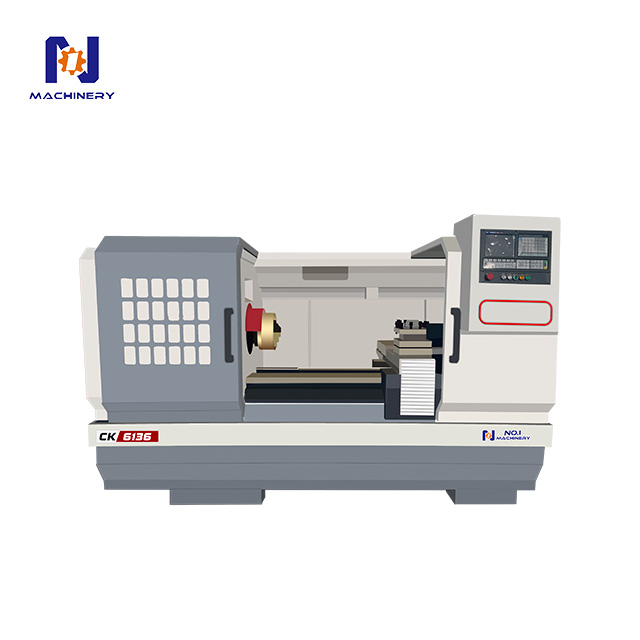

CK6136 Flat bed CNC lathe machine

optional configuration:

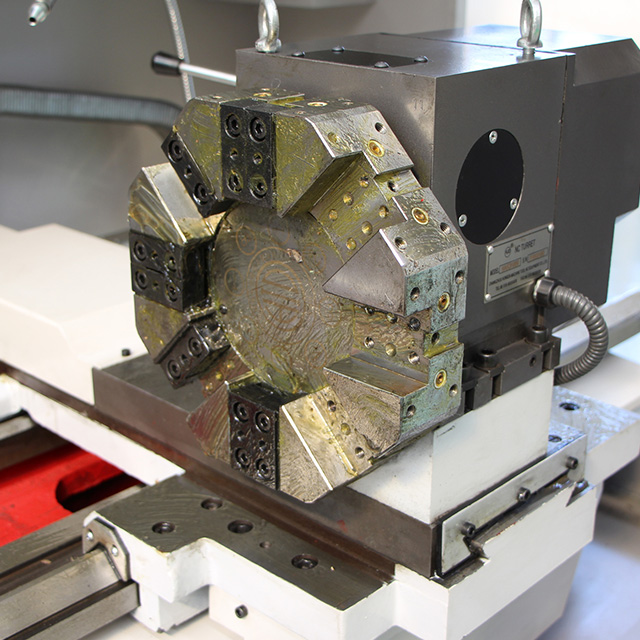

• 8 station electric knife tower

• 300mm hydraulic chuck/ hydraulic chuck

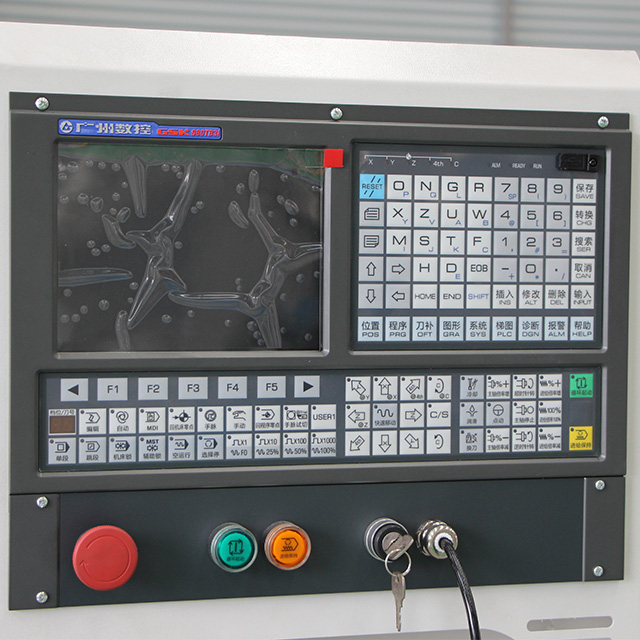

• system:STNTEC,Mitsbishi,Siemens,FANUC

• Spindle through hole 105

• 7.5KW servo main motor

• Item Model	Unit	CK6136
  Maximum turning diameter of bed	mm	360
  Maximum diameter of rotation on skateboard	mm	190
  Maximum workpiece length	mm	750/1000/1500/2000
  Spindle hole	mm	52
  Spindle bore taper	-	MT6
  Spindle end form	-	A2-6
  Spindle speed series		Gear 2 (optional non-pole)
  Spindle speed range	rpm	1800
  Type of tool holder	-	4 station electric tool holder
  Tool dimensions	mm	20X20
  X/ZAxis stroke	mm	200/750-2000
  X/Z axis fast feed speed	mm/min	6000/8000

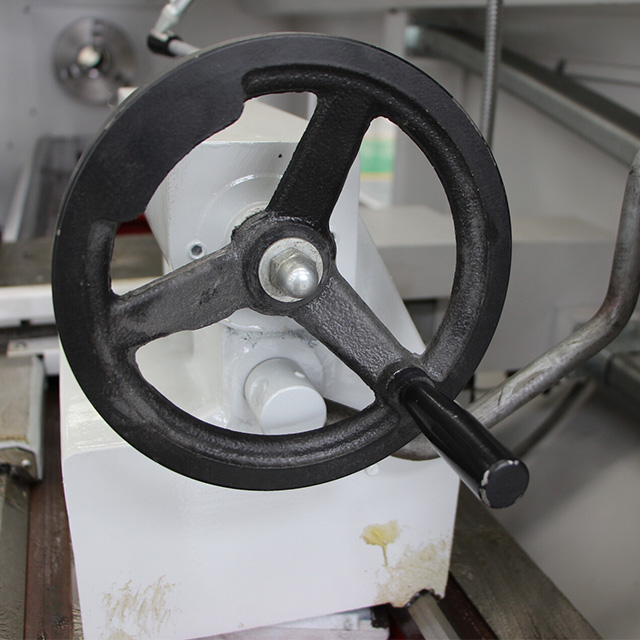

  Diameter of tailstock sleeve	mm	65
  Taper of tailstock sleeve	-	MT4
  Tail seat sleeve stroke	mm	140
  Main motor power	kw	5.5
  Cooling motor power	kw	0.125
  Weight of machine tool	kg	1600
  External dimensions	mm	2000X1500X1600
