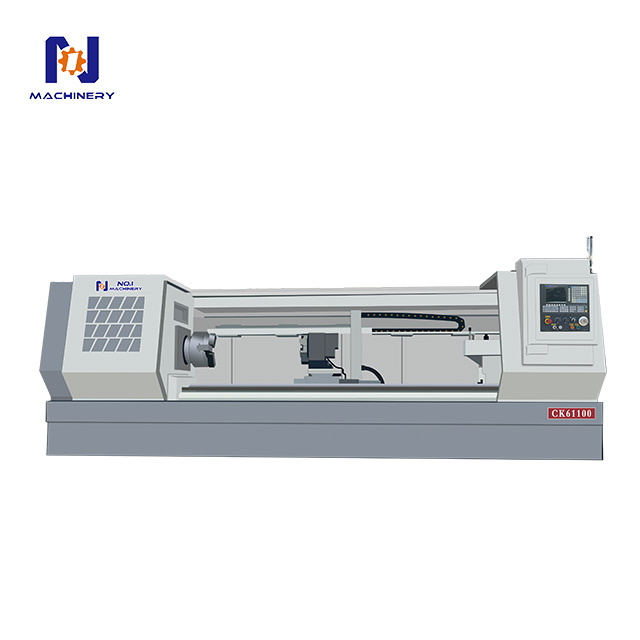

CK61100 Flat Bed CNC Lathe Machine

optional configuration:

• 8 station electric knife tower

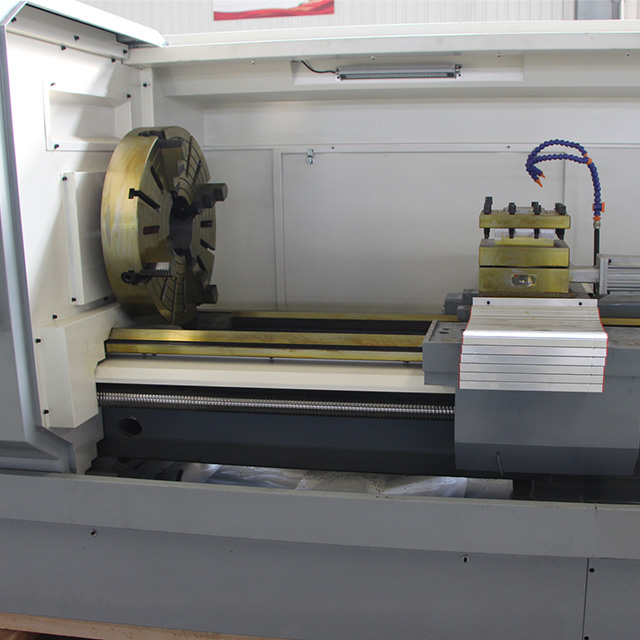

• 500mm hydraulic chuck/ hydraulic chuck

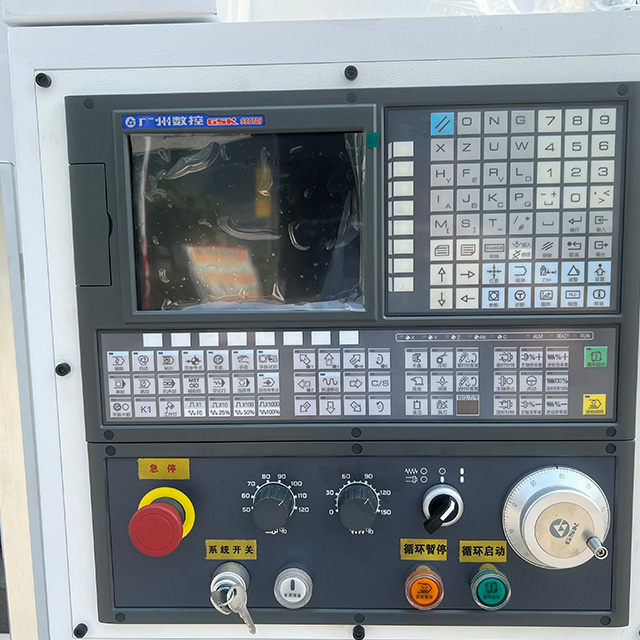

• system:STNTEC,Mitsbishi,Siemens,FANUC

• Spindle through hole 130

• optional length:1/1.5/2/3/4/5m

• Item Model	Unit	CK6136
  Maximum turning diameter of bed	mm	1000
  Maximum diameter of rotation on skateboard	mm	630
  Maximum workpiece length	mm	1000-5000
  Width of guide rail	mm	600/755
  Spindle hole	mm	105
  Spindle end form	-	A2-11
  Spindle speed series		Manual/Hydraulic 4 gear
  Spindle speed range	rpm	30-84/53-150/125-350/300-835
  Type of tool holder	-	Vertical 4-station tool rest
  Tool dimensions	mm	32X40
  X/ZAxis stroke	mm	550/1000-5000
  X/Z axis fast feed speed	mm/min	6000/4000

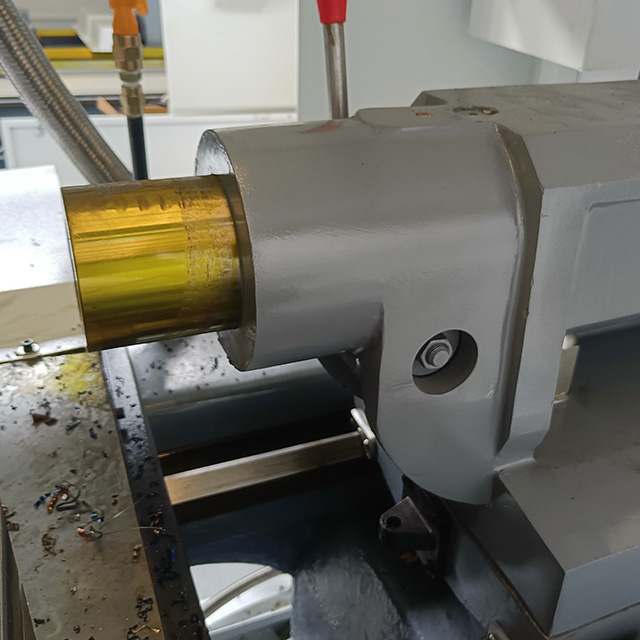

  Diameter of tailstock sleeve	mm	100
  Taper of tailstock sleeve	-	MT6
  Tail seat sleeve stroke	mm	250
  Main motor power	kw	11
  Cooling motor power	kw	0.0125
  Weight of machine tool	kg	4300-6500
  External dimensions	mm	3400-5400X1950X2000
