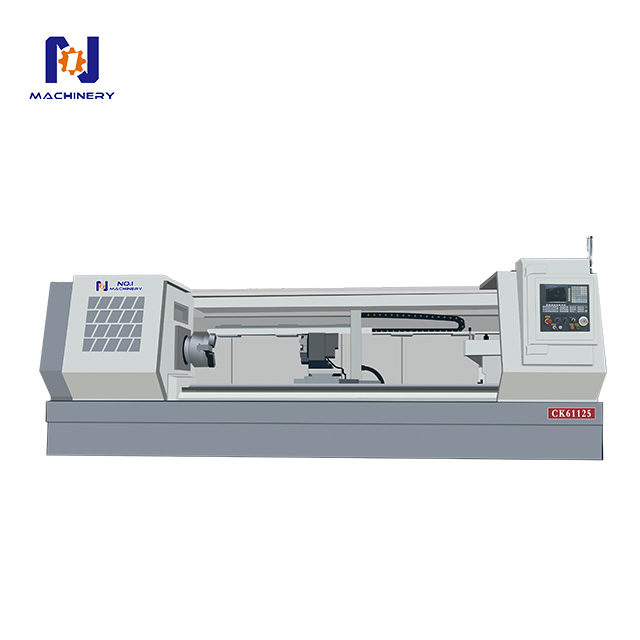

CK61125 Flat Bed CNC Lathe Machine

optional configuration:

• 8 station electric knife tower

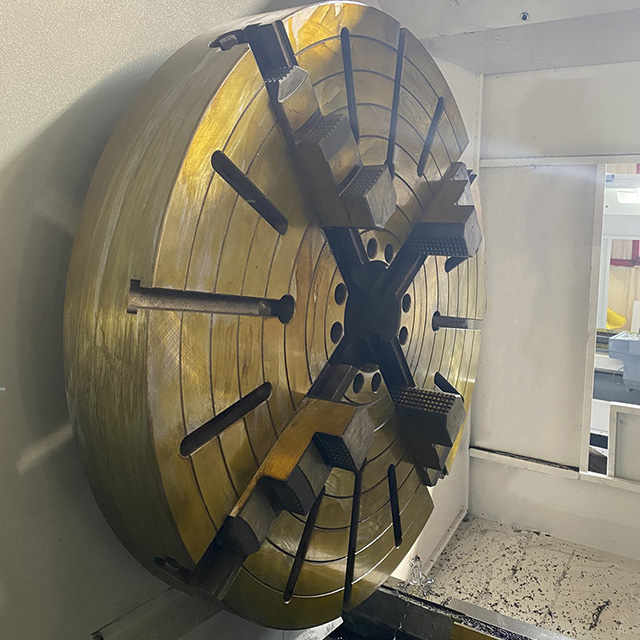

• 500mm hydraulic chuck/ hydraulic chuck

• asystem:STNTEC,Mitsbishi,Siemens,FANUC

• Spindle through hole 130

• optional length:1/1.5/2/3/4/5m

• Item Model	Unit	CK6136
  Maximum turning diameter of bed	mm	1250
  Maximum diameter of rotation on skateboard	mm	880
  Maximum workpiece length	mm	1000-5000
  Width of guide rail	mm	600/755/1100
  Spindle hole	mm	130
  Spindle end form	-	A2-15
  Spindle speed series		Gear 4
  Spindle speed range	rpm	835

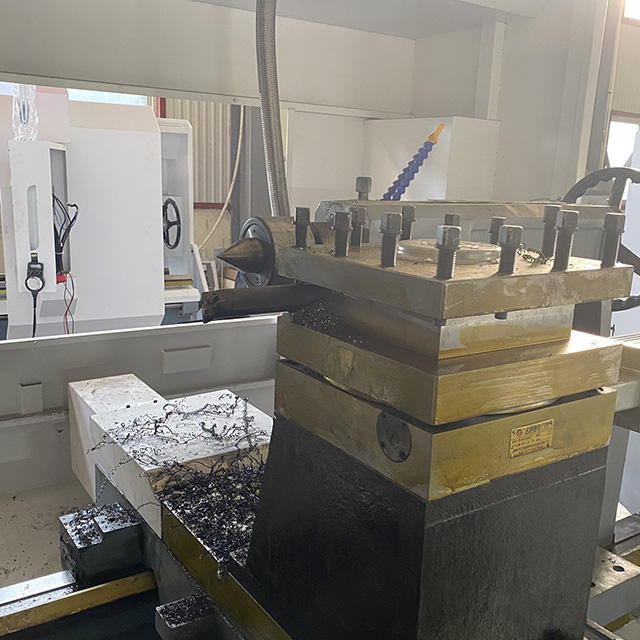

  Type of tool holder	-	Vertical 4-station tool rest
  Tool dimensions	mm	40X40
  X/ZAxis stroke	mm	640/1000-5000
  X/Z axis fast feed speed	mm/min	6000/8000
  Diameter of tailstock sleeve	mm	130
  Taper of tailstock sleeve	-	MT6
  Tail seat sleeve stroke	mm	250
  Main motor power	kw	15
  Cooling motor power	kw	0.125
  Weight of machine tool	kg	6000
  External dimensions	mm	6700X2550X2350
