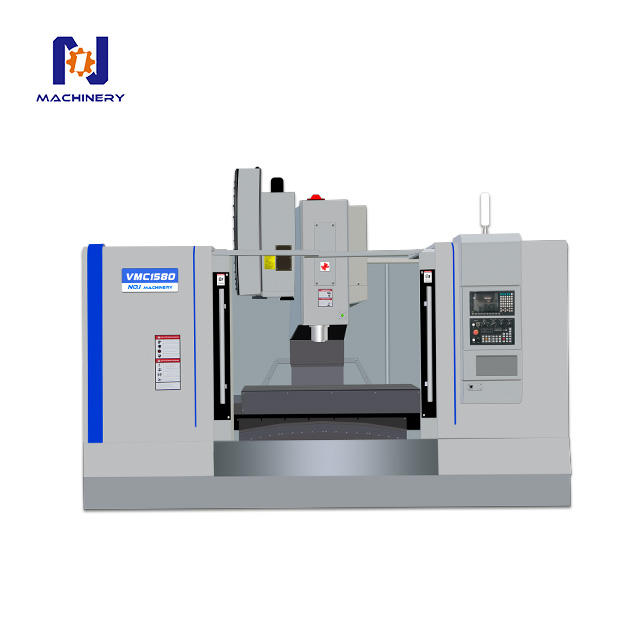

Vertical Machining Center VMC1580
NO.1 MACHINERY
8457101000
Optional configuration
Siemens,FANUC,Mitsubishi,GSK,KND
spindle RPM 10000 Timingbelt /12000 Direct drive
Coolant through spindle(CTS)
Workpiece measuring probe
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5- axis
Optional Z-axis Hard
Tool setting probe
Item Model | Unit | VMC1580 |
Size of worktable | mm | 1700*800 |
T-shaped groove for table | mm | 5-22*135 |
Maximum load on table | kg | 1500 |
X/Y/Z rail width | mm | 55/45/HARD |
X/Y/Z ball screw specification | mm | 6310/6310/5010 |
X/Y/Z Axis stroke | mm | 1500*800*700 |
X/Y/Z motor torque | NM | 24/24/26 |
Spindle face to table position | mm | 130-830 |
Distance from Spindle Center to column | mm | 810 |
Cutting feed rate | mm/min | 1-8000 |
X/Y/Z axis fast feed | m/min | 12/12/12 |
Spindle end taper/diameter | mm | BT50-155 |
Spindle motor power | kw | 15/18.5 |
Maximum spindle speed | rpm | 6000/8000 |

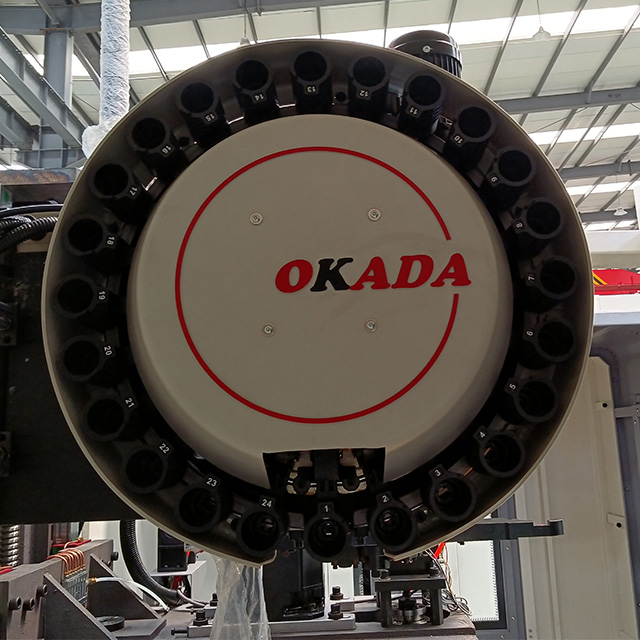

Form of Tool Bank | - | Disc |
The capacity of knife storage | tools | 24/30 |
Maximum tool diameter/weight | mm/kg | 112/200/18 |
Tool change time | sec | 2.5 |
Positioning accuracy | mm | 0.008 |
Repeat positioning accuracy | mm | 0.005 |
The smallest unit of positioning | mm | 0.005 |
Weight of machine tool | kg | 14000 |
External dimensions | mm | 4000*3000*3050 |
