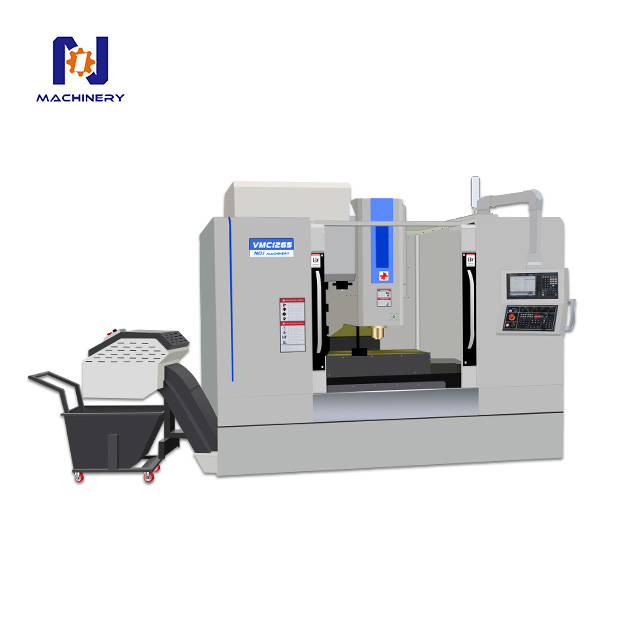

Vertical Machining Center VMC1265
NO.1 MACHINERY
8457101000
Optional configuration
Siemens,FANUC,Mitsubishi,GSK,KND
spindle RPM 10000 Timingbelt /12000 Direct drive
Spindle oil cooler
Coolant through spindle(CTS)
Workpiece measuring probe
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5- axis
Spindle BT50-150 (BT50 ATC)
Tool setting probe
Item Model | Unit | VMC1265 |
Size of worktable | mm | 1300*650 |
Maximum load on table | Kg | 800 |
Number of worktables | 1 | |
X/y/z rail width | mm | 45/45/45 |
X/y/z screw diameter | mm | 4012/4012/4012 |
X/Y/Z Axis stroke | mm | 1200*650*650 |
X/y/z motor torque | mm | 18/18/28(Brake) |
Distance from spindle face to table | mm | 120-770 |
Distance from Spindle Center to column | mm | 673 |
Cutting feed rate | mm/min | 1-10 |
X/Y/Z axis fast feed | mm/min | 36/36/36 |
Spindle end taper | mm | BT40-150 |
Spindle motor power | kw | 11 |
Maximum spindle speed | rpm | 8000 |
Form of Tool Magazine | - | disc/Chain type |
Maximum tool diameter/weight | mm/kg | 78/120/8 |
Tool change time | sec | 2.5 |
Positioning accuracy | mm | 0.008 |
Repeat positioning accuracy | mm | 0.005 |
The smallest unit of positioning | mm | 0.001 |
Weight of machine tool | Kg | 7500 |
External dimensions | mm | 3200*2450*2650 |
