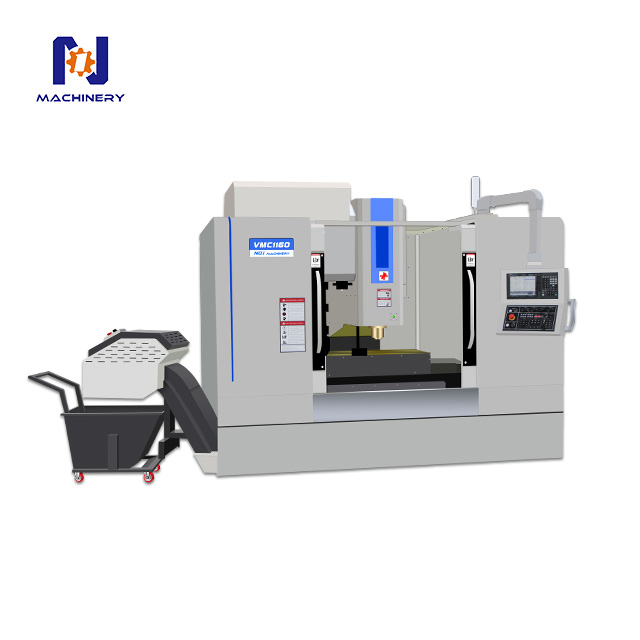

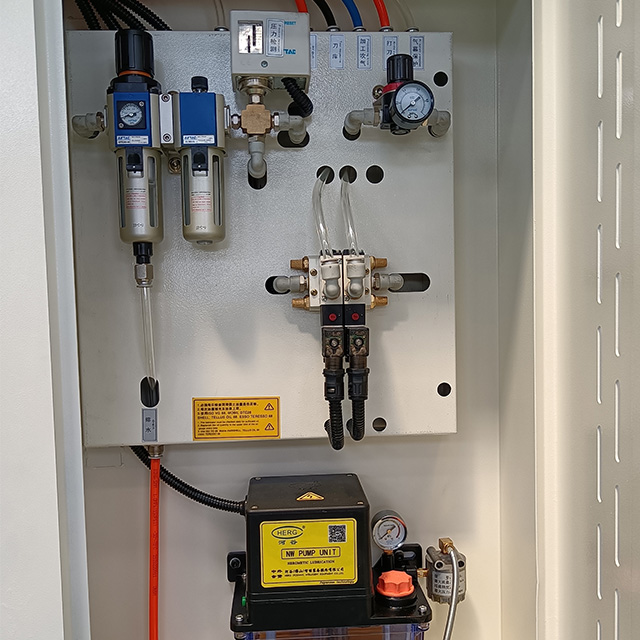

Vertical Machining Center VMC1160
NO.1 MACHINERY
8457101000
Optional configuration
Siemens,FANUC,Mitsubishi,GSK,KND
spindle RPM 10000 Timingbelt /12000 Direct drive

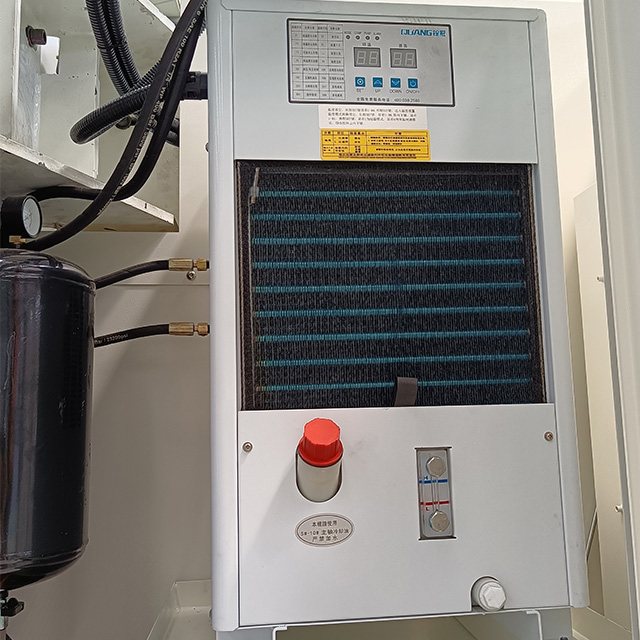

Spindle oil cooler

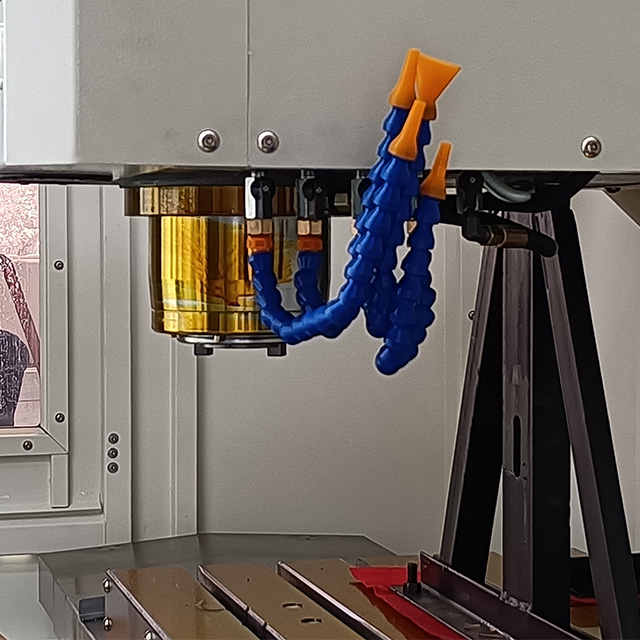

Coolant through spindle(CTS)
Workpiece measuring probe
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5- axis
Spindle BT50-150 (BT50 ATC)
Tool setting probe
Item Model | Unit | VMC1160 | VMC1160(2-Wire rail+1-Hard rail) |
Size of worktable | mm | 1200*600 | 1200*600 |
T-shaped groove for table | mm | 5-18*100 | 5-18*100 |
Maximum load on table | kg | 800 | 800 |
X/Y/Z rail width | mm | 45/45/45 | 45/45/Hard Rail |
X/Y/Z ball screw specification | mm | 4012/4012/4012 | 4012/4012/4012 |
X/Y/Z Axis stroke | mm | 1100X600X600 | 1100X600X600 |
X/Y/Z motor torque | NM | 18/18/28(Brake) | 18/18/20(Counterweight) |
Spindle face to table position | mm | 120-720 | 120-720 |
Distance from Spindle Center to column | mm | 650 | 650 |
Cutting feed rate | mm/min | 1-8000 | 1-8000 |
X/Y/Z axis fast feed | m/min | 24/24/24 | 24/24/12 |
Spindle end taper/diameter | mm | BT40-150 | BT40-150/BT50-150 |
Spindle motor power | kw | 11 | 11/15 |
Maximum spindle speed | rpm | 8000/10000/12000 | 8000/10000/12000 |
Form of Tool Bank | - | Disc | Disc |

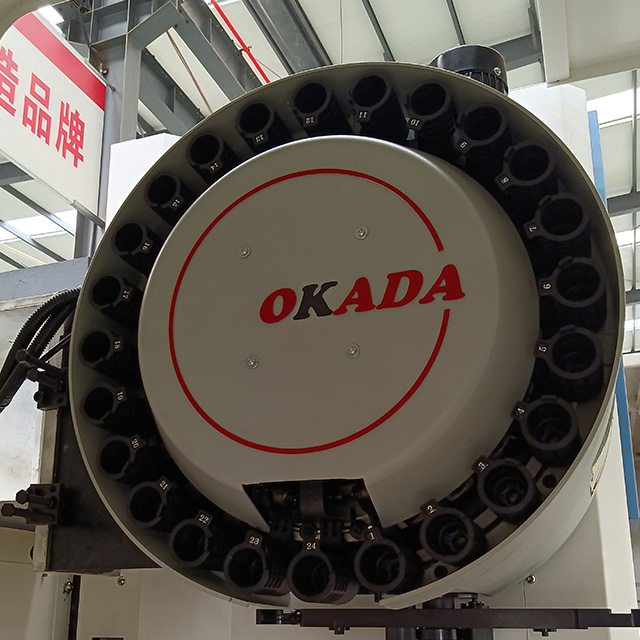

The capacity of knife storage | tools | 24 | 24 |
Maximum tool diameter/weight | mm/kg | 78/120/8 | 78/120/8 |
Tool change time | sec | 2.5 | 2.5 |
Positioning accuracy | mm | 0.008 | 0.008 |
Repeat positioning accuracy | mm | 0.005 | 0.005 |
The smallest unit of positioning | mm | 0.005 | 0.005 |
Weight of machine tool | kg | 6800 | 7200 |
External dimensions | mm | 3200*2450*2650 | 3200*2450*2650 |
