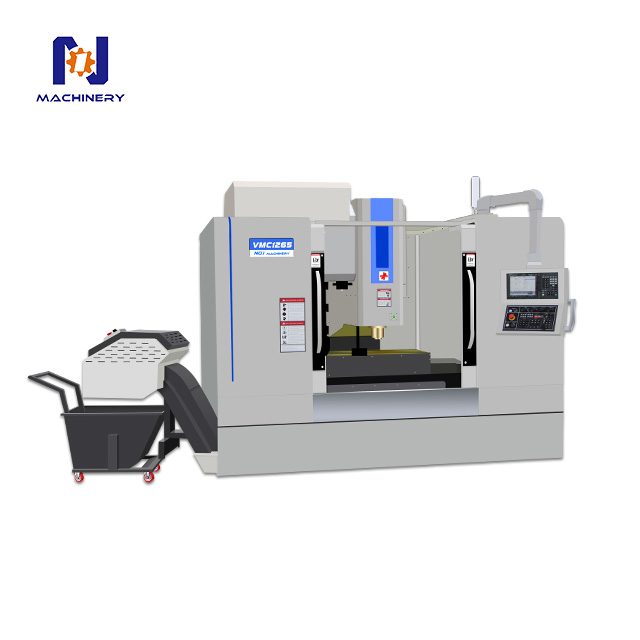

VMC1265 Vertical Machining Center 3-Axis CNC milling machine Optional 4-axis/5-axis Chinese manufacturer machine tool

Optional  configuration

• Siemens，FANUC，Mitsubishi,GSK，KND

• spindle RPM 10000 Timingbelt /12000 Direct drive

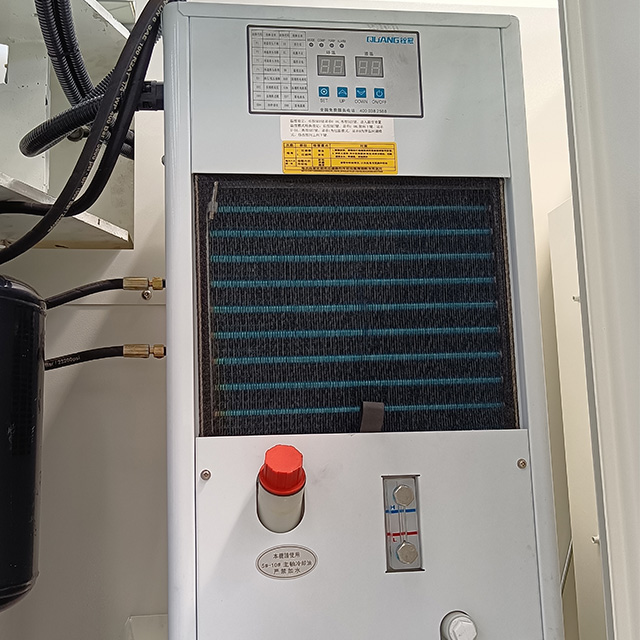

• Spindle oil cooler

• Coolant through spindle(CTS)

• Workpiece measuring probe

• Screw type chip conveyor

• chain tvpe chip conveyor

• 4- axis /5- axis

• Spindle BT50-150 (BT50 ATC)


• Tool setting probe




• Item Model	Unit	VMC1265
  Size of worktable	mm	1300*650
  Maximum load on table	Kg	800
  Number of worktables		1
  X/y/z rail width	mm	45/45/45
  X/y/z screw diameter	mm	4012/4012/4012
  X/Y/Z Axis stroke	mm	1200*650*650
  X/y/z motor torque	mm	18/18/28(Brake)
  Distance from spindle face to table	mm	120-770
  Distance from Spindle Center to column	mm	673
  Cutting feed rate	mm/min	1-10
  X/Y/Z axis fast feed	mm/min	36/36/36
  Spindle end taper	mm	BT40-150
  Spindle motor power	kw	11
  Maximum spindle speed	rpm	8000

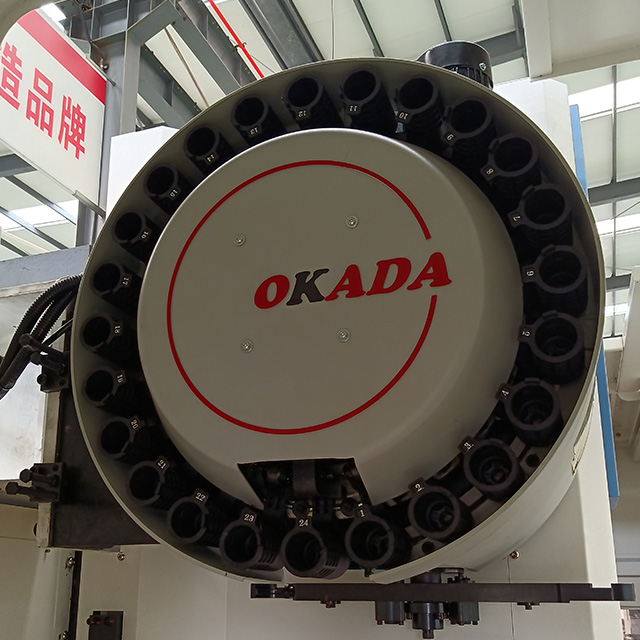

  Form of Tool Magazine	-	disc/Chain type
  Maximum tool diameter/weight	mm/kg	78/120/8
  Tool change time	sec	2.5
  Positioning accuracy	mm	0.008
  Repeat positioning accuracy	mm	0.005
  The smallest unit of positioning	mm	0.001
  Weight of machine tool	Kg	7500
  External dimensions	mm	3200*2450*2650
