HMC6363 Horizontal Machining Center Double Table 3-Axis CNC Milling Machine Optional 4-axis/5-axis Chinese Manufacturer Machine Tool

HMC6363 Horizontal Machining Center Double Table 3-Axis CNC Milling Machine Optional 4-axis/5-axis Chinese Manufacturer Machine Tool

Horizontal Machining Center Standard Configuration:

Taiwan SYNTEC 22MA control system;

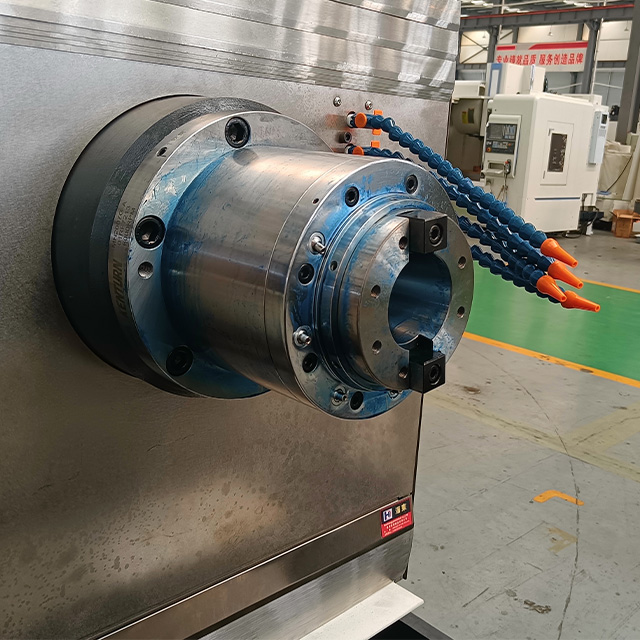

BT50 Taiwan 8000RPM spindle;
Taiwan HIWIN screw;
Taiwan HIWIN 3axis roller linear rails;
Taiwan OKADA 30-Disc-ATC;
Double-station switching worktable


SKU:
Availability:



Inquire

Model:
Horizontal Machining Center HMC6363
Brand:
NO.1 MACHINERY
Code:
8457102000

HMC 6363 Horizontal Machining Center

Optional configuration:

Spindle unite:KENTURN/OKADA/VOLIS
Bearing:SKF/NACHI
Tool magazine:OKADA/AIMACH
Lead screw:HIWIN/PMI
Linear rails:HIWIN/PMI

Item Model	Unit	HMC6363
Size of worktable	mm	630*700
Table graduationg	mm	1^。*360
Maximum load on table	kg	800
Number of worktables		2
X/Y/Z rail width	mm	45/45/55
X/Y/Z screw diameter	mm	4012/4012/5012
X/Y/Z Axis stroke	mm	1050750900
X/Y/Z motor torque	mm	18/28/28
Distance from spindle face to table	mm	130-1030
Distance from spindle center to column	mm	120-870
Cutting feed rate	mm/min	10000
X/Y/Z axis fast feed	mm/min	24/20/20
Spindle en taper	mm	BT50-190
Spindle motor power	kw	15
Maximum spindle speed	rpm	6000
Form of Tool Magazine	-	Disc/Chain type
Maximum tool diameter/weight	mm/kg	78-120/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positionging	mm	0.005
Weight of machine tool	kg	13800
External dimensions	mm	550045002900
