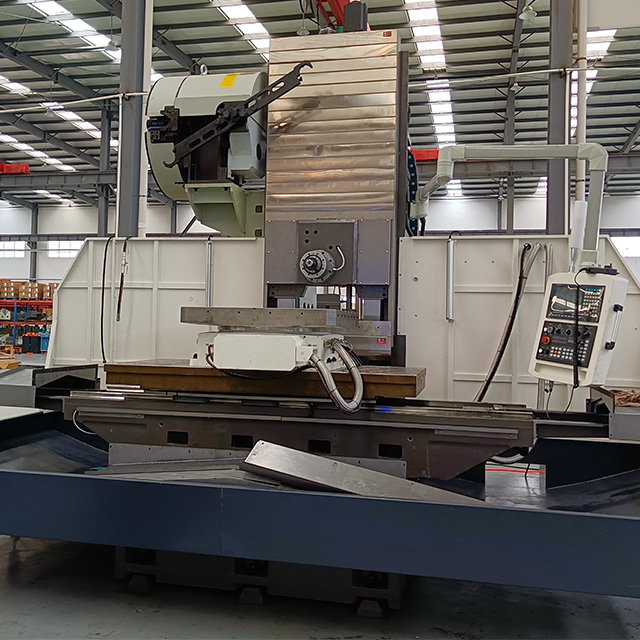

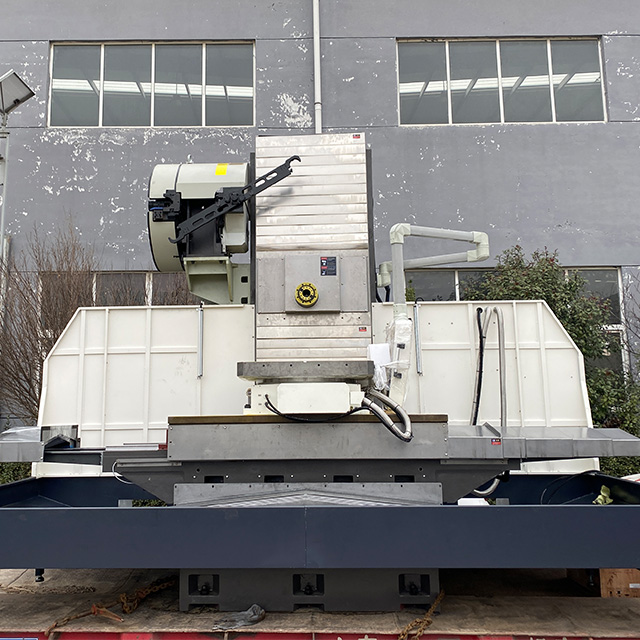

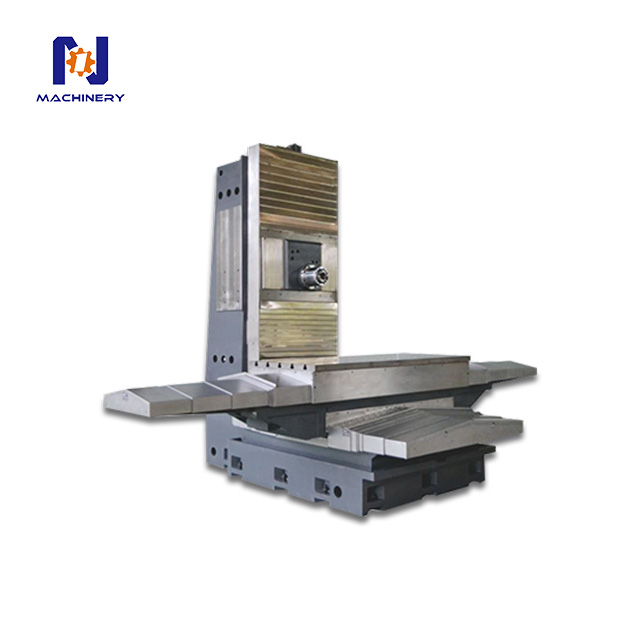

HMC1814 Horizontal Machining Center

Optional configuration:

• Spindle unite:KENTURN/OKADA/VOLIS;

• Tool cylinder:TENIO;

• Bearing:SKF/NACHI;

• Coupling:R+W;

• Tool magazine:OKADA/AIMACH;

• Lead screw:HIWIN/PMI;

• Linear rails:HIWIN/PMI;

• Lubrication pump:HERG;

• Guide rail protection:Haidong;

• Electricals:Schneider;

• Item Model	Unit	HMC1814
  Size of worktable	mm	2000*900
  Table travel around	mm	1800

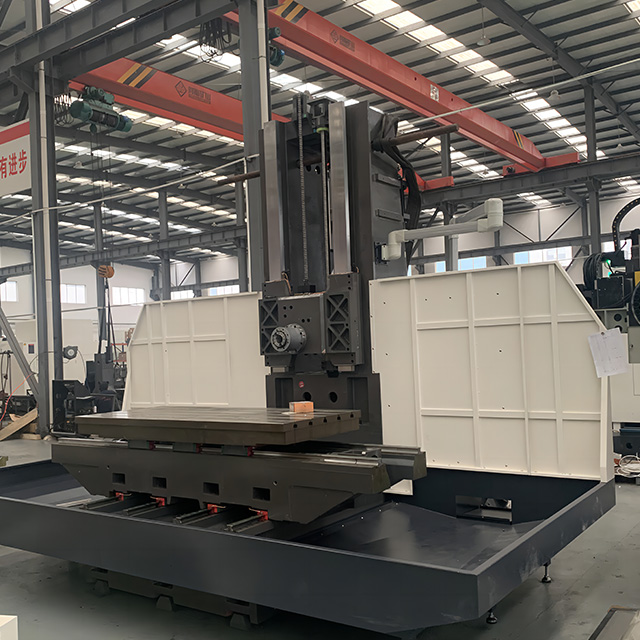

  Forward and backward travel of workbench	mm	1400
  Up and down stroke of spindle box	mm	900
  Distance from spindle center to worktable surface	mm	140-1540
  Distance from spindle end to table center	mm	200-1100
  T-shaped groove for table	mm	5-22*165
  Maximum load-bearing table	kg	1600
  Main motor power	kw	15/18.5
  Spindle Taper		BT50
  Spindle speed	rpm	6000
  Cutting feed rate	mm/min	1-10000
  Fast speed	m/min	18/12/18
  X/Y/Z ball screw specificationg	-	5512/5010/5512
  X/Z Axis rail specification	-	55/45
  Tool Magazine	-	Disc
  Maximum tool diameter	mm	112/200
  Maximum too length	mm	400
  Maximum weight of tool	kg	18
  Tool exchange time	sec	3
  Minimum set unit of machine tool	mm	0.001
  X/Y/Z orientation accuracy	mm	±0.0075
  X/Y/Z repeated positioning accuracy	mm	±0.005
  B axis positioning accuracy(table rotation)	。	10。
  B axis repeated positioning accuracy(table rotationg)	。	5。
  Weight of machine tool	kg	13000
  External dimensions	mm	5500*3600*3300
