Horizontal Machining Center HMC500
NO.1 MACHINERY
8457102000
Optional configuration:
Spindle unite:KENTURN/OKADA/VOLIS
Tool cylinder:TENIO
Bearing:SKF/NACHI
Coupling:R+W
Tool magazine:OKADA/AIMACH
Lead screw:HIWIN/PMI
Linear rails:HIWIN/PMI
Lubrication pump:HERG
Guide rail protection:Haidong
Electricals:Schneider
Item Model | Unit | HMC500 |
Size of worktable | mm | 500*500 |
Table graduationg | mm | 1。*360 |
Maximum load on table | kg | 600 |
Number of worktables | 1 | |
X/Y/Z rail width | mm | 45/45/45 |
X/Y/Z screw diameter | mm | 4012/5012/4012 |
X/Y/Z Axis stroke | mm | 1100*700*600 |
X/Y/Z motor torque | mm | 15/28/28 |
Distance from spindle face to table | mm | 20-720 |
Distance from spindle center to column | mm | 50-750 |
Cutting feed rate | mm/min | 1-10 |
X/Y/Z axis fast feed | mm/min | 24/24/24 |
Spindle en taper | mm | BT40-150 |
Spindle motor power | kw | 11 |
Maximum spindle speed | rpm | 8000 |

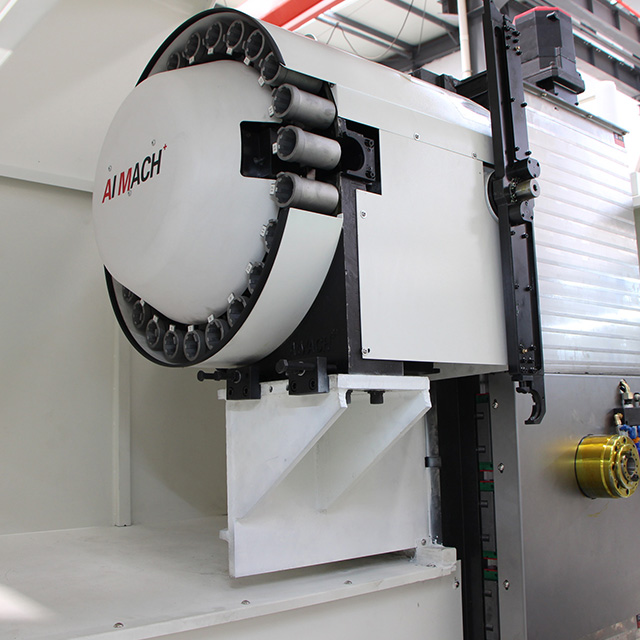

Form of Tool Magazine | - | Disc |
Maximum tool diameter/weight | mm/kg | 79-120/8 |
Tool change time | sec | 2.5 |
Positioning accuracy | mm | 0.008 |
Repeat positioning accuracy | mm | 0.005 |
The smallest unit of positionging | mm | 0.001 |
Weight of machine tool | kg | 7800 |
External dimensions | mm | 3150*2550*2900 |
