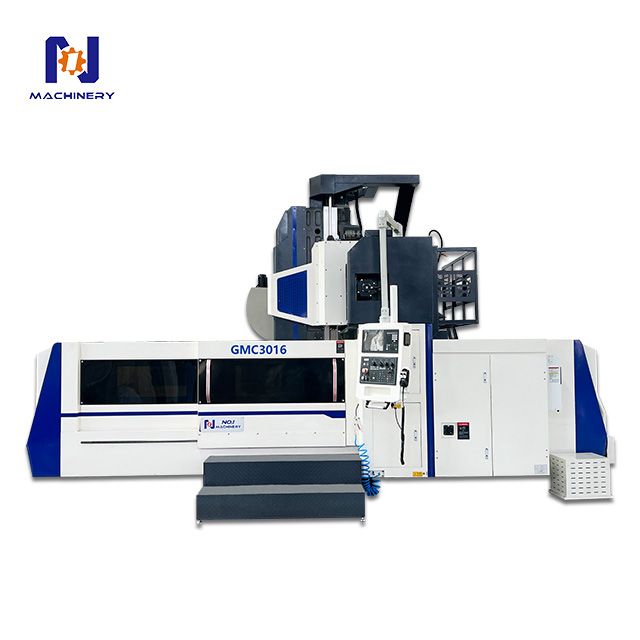

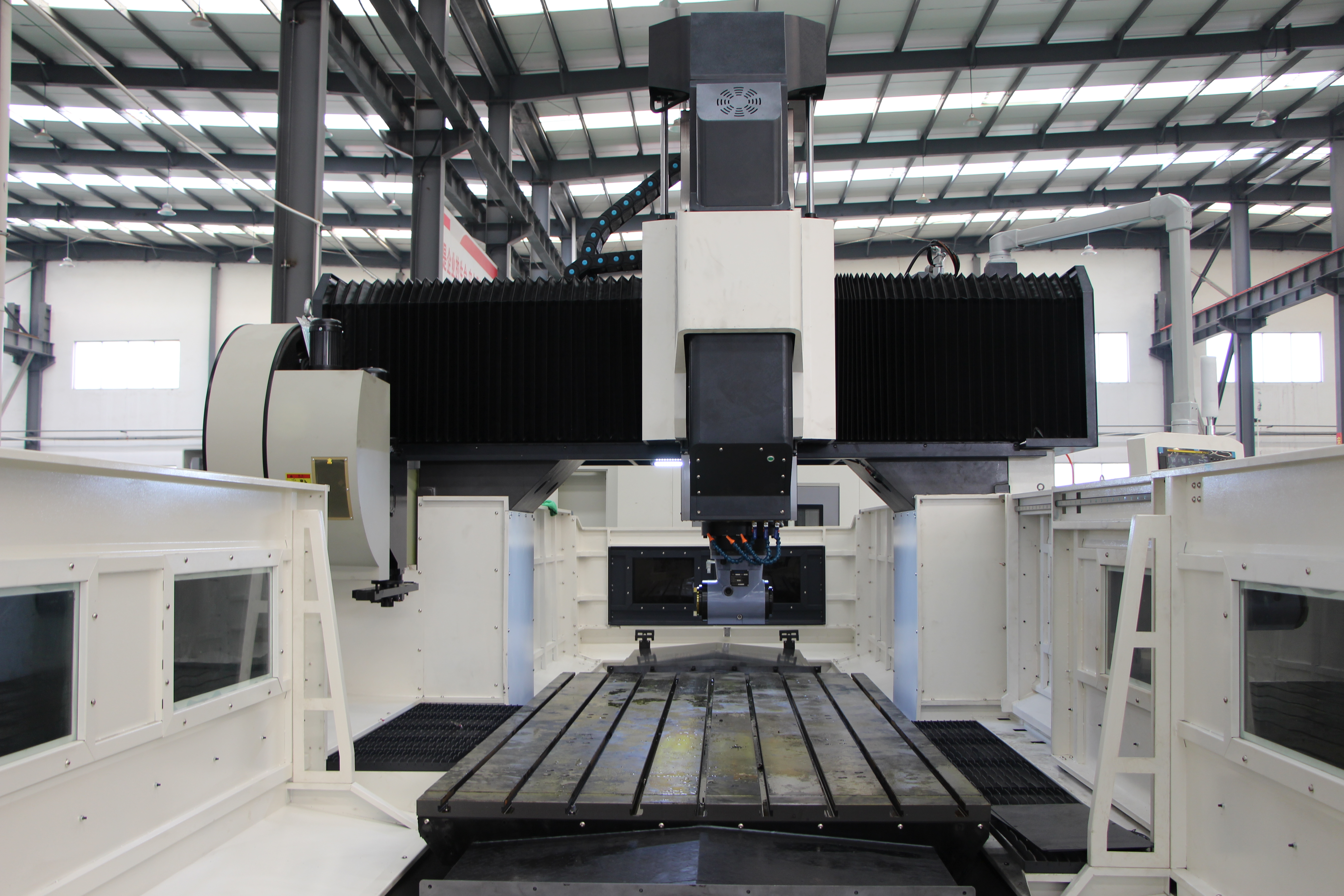

Gantry Machining Center GMC3016
NO.1 MACHINERY
8426193000
Detailed configuration

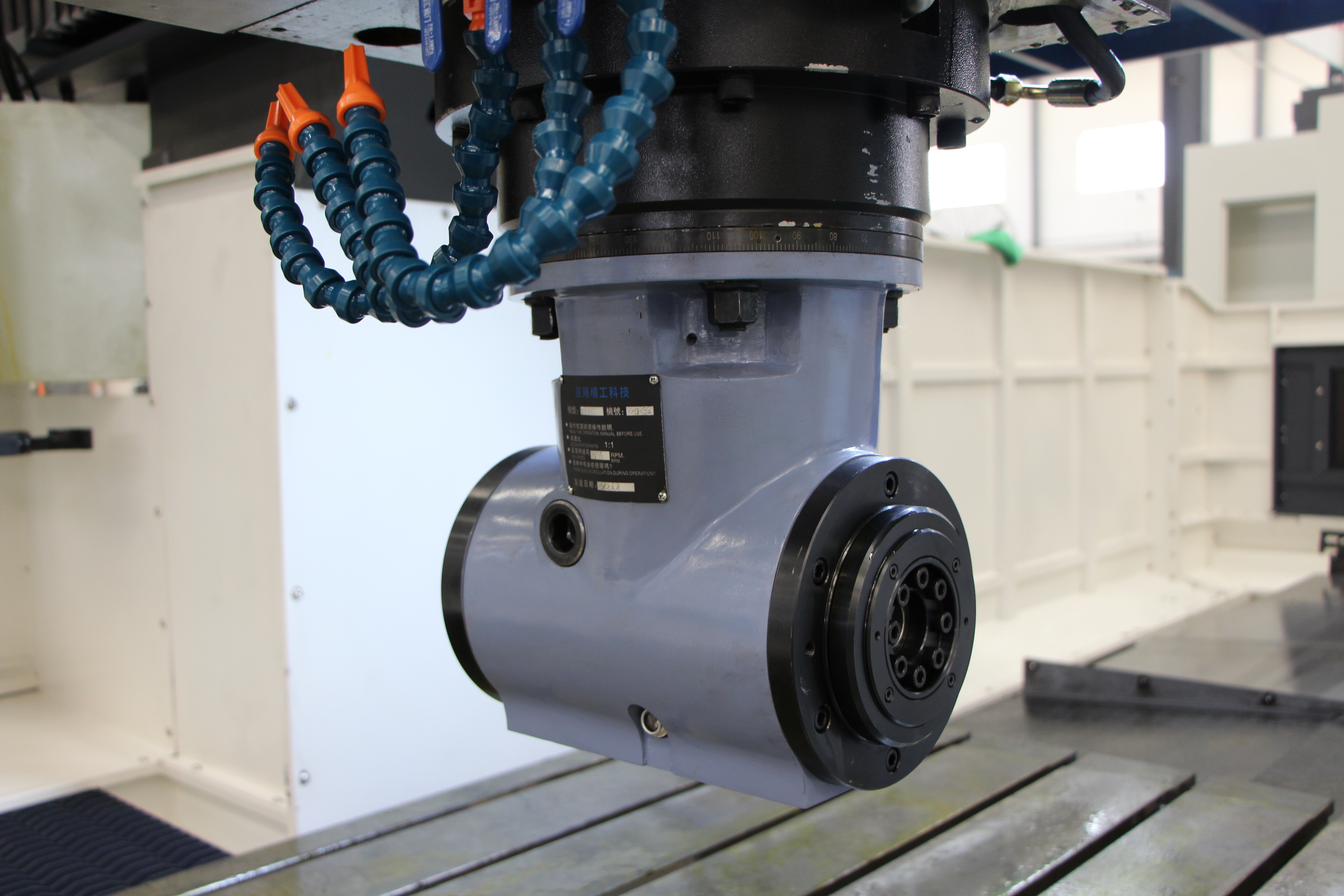

Spindle unite: KENTURN/OKADA/VOLIS
Tool cylinder:TENIO
Bearing: SKF/NACHI
Coupling: R+W

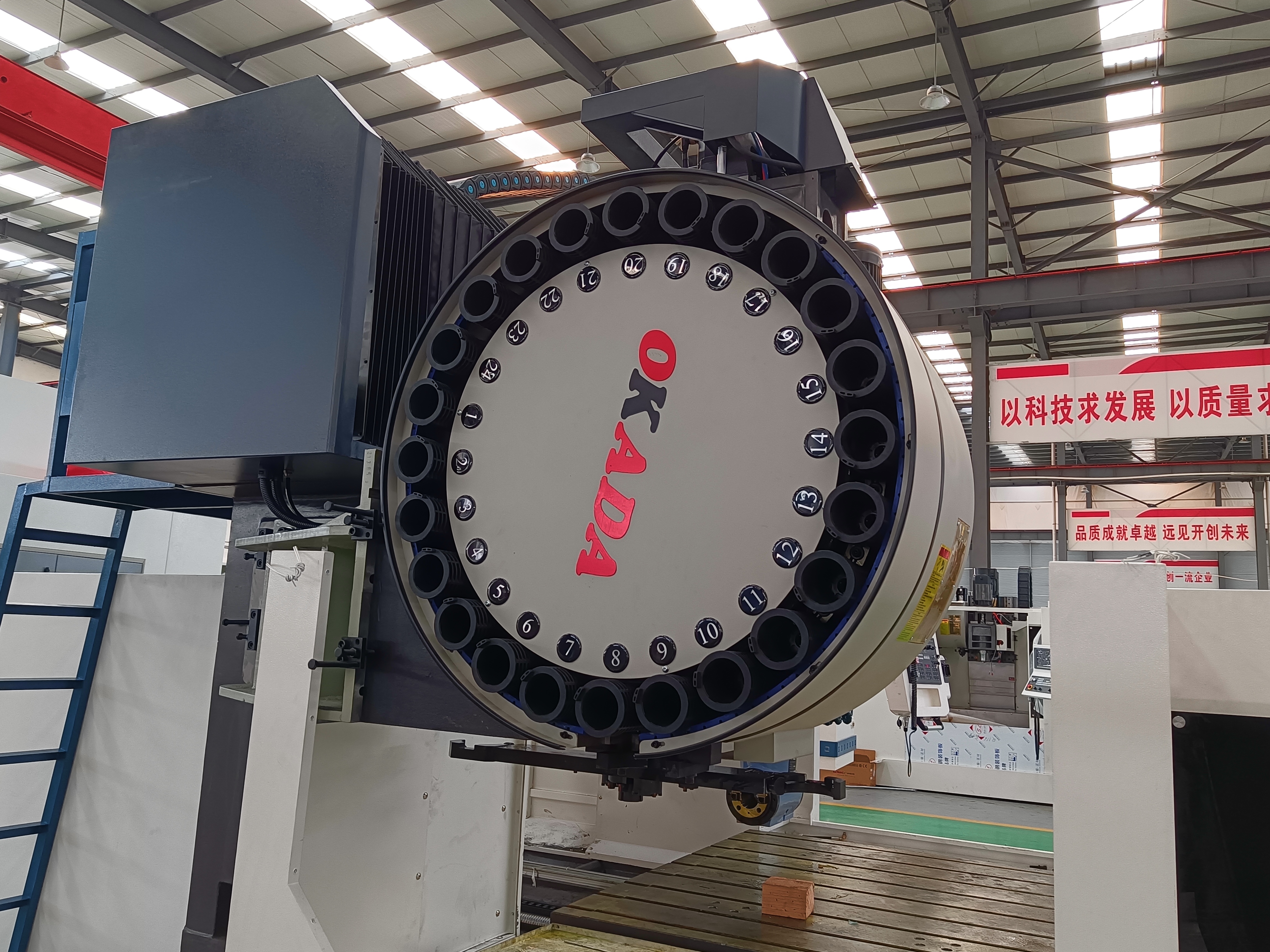

Tool magazine: OKADA/AIMACH
Lead screw: HINWIN/PMI
Linear rail: HIWIN/PMI
Lubrication pump: HERG
Guide rail protection: Haidong
Electricals: Schneider
Item model | Unit | GMC3016 | |
Size of worktable | mm | 1300*3000 | |
(X)Table move direction stroke | mm | 3000 | |
(Y)Spindle slide moving direction stroke | mm | 1650(1850) | |
(Z)Spindle up and down move direction stroke | mm | 800 | |
Width of gantry | mm | 1660 | |
High of Gantry | mm | 1100 | |
Distance between spindle end face and worktable surface | mm | 250-1050 | |
T-shaped groove for table | mm | 7-22*170 | |
Spindle specifications | - | BT50-190 | |
Spindle transmission mode | Belt | rpm | 6000; (1.5:1) |
ZF+Belt | 6000; (4:1) | ||
Gear Head | 6000; (4.4:1) | ||
Fast moving feed speed | m | 15 | |
Cutting feed rate | m | 10 | |
X/Y/Z axis ball guide gauge/pitch | mm | 8020/5010/5010 | |
X/Y/Z axis quide gauge/slider quantity | - | X: 55/10 Roller rail Y: 55/4 Roller rail Z: Rectangle ram | |
X/y/z axis servo motor drive mode and drive ratio | - | X: Planetary speed reducer; Y/Z: Direct | |
Spindle motor recommended | kw | 22 | |
X/Y/Z three-phase servo motor recommended | NM | 38/30/30 | |
Dimension of optical machine | mm | 6650*2980*3830 | |
Load-bearing table | T | 6 | |
Casting Machine | T | 20 | |
