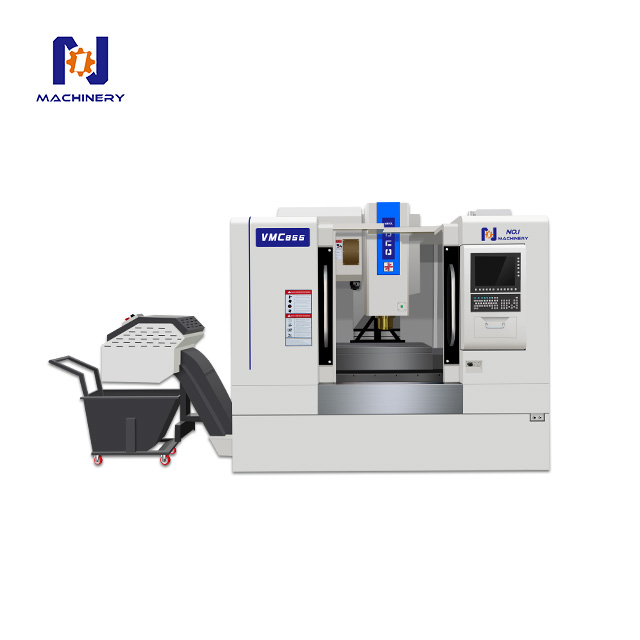

VMC855 3-Axis CNC milling machine Optional 4-axis/5-axis Chinese manufacturer machine tool

Optional  configuration

• Siemens，FANUC，Mitsubishi,GSK，KND

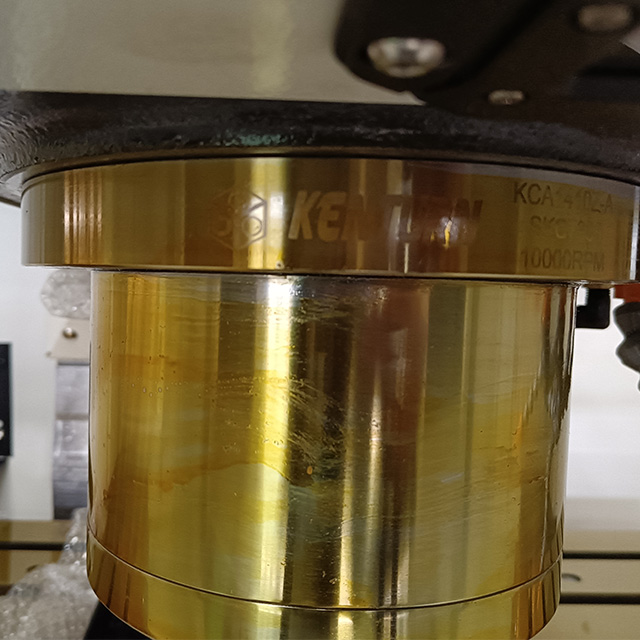

• spindle RPM 10000 Timingbelt /12000 Direct drive

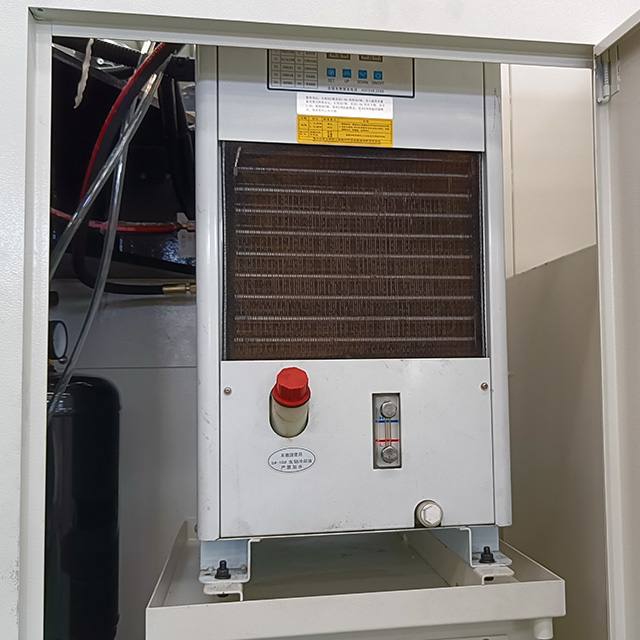

• Spindle oil cooler

• Coolant through spindle(CTS)

• Workpiece measuring probe

• Screw type chip conveyor

• chain tvpe chip conveyor

• 4- axis /5- axis

• Electrical Cabinet Air Conditioning(AC)

• Tool setting probe




• Item Model	Unit	VMC855
  Size of worktable	mm	1000*550
  T-shaped groove for table	mm	5-18*100
  Maximum load on table	kg	550
  X/Y/Z rail width	mm	35/45/45
  X/Y/Z ball screw specification	mm	4016/4016/4016
  X/Y/Z Axis stroke	mm	800*550*550
  X/Y/Z motor torque	NM	15/15/22(Brake)
  Spindle face to table position	mm	120-670
  Distance from Spindle Center to column	mm	590
  Cutting feed rate	mm/min	1-8000
  X/Y/Z axis fast feed	m/min	48/48/36
  Spindle end taper/diameter	mm	BT40-150
  Spindle motor power	kw	7.5
  Maximum spindle speed	rpm	8000/10000/12000

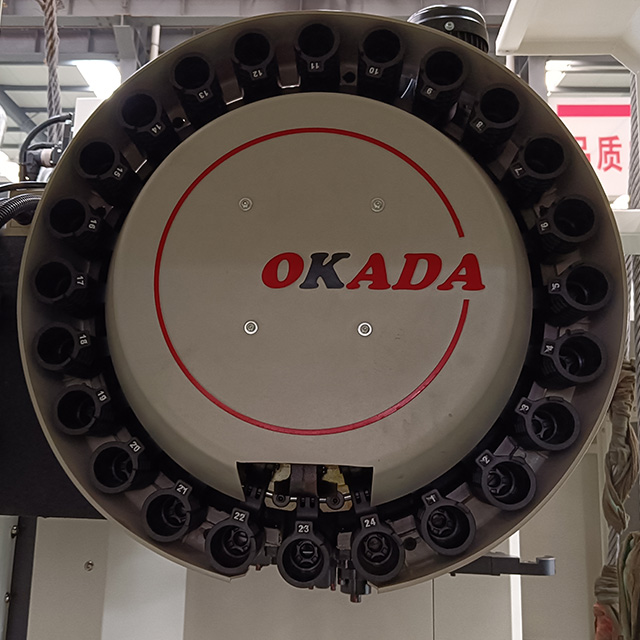

  Form of Tool Bank	-	Disc
  The capacity of knife storage	tools	24
  Maximum tool diameter/weight	mm/kg	78/120/8
  Tool change time	sec	2.5
  Positioning accuracy	mm	0.008
  Repeat positioning accuracy	mm	0.005
  The smallest unit of positioning	mm	0.005
  Weight of machine tool	kg	5500
  External dimensions	mm	2800*2400*2650
