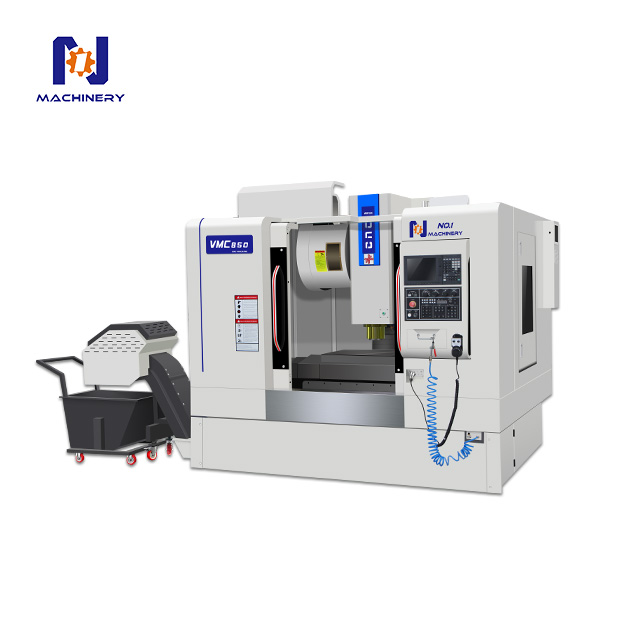

Vertical Machining Center VMC850
NO.1 MACHINERY
8457101000
Optional configuration
Siemens,FANUC,Mitsubishi,GSK,KND
spindle RPM 10000 Timingbelt /12000 Direct drive

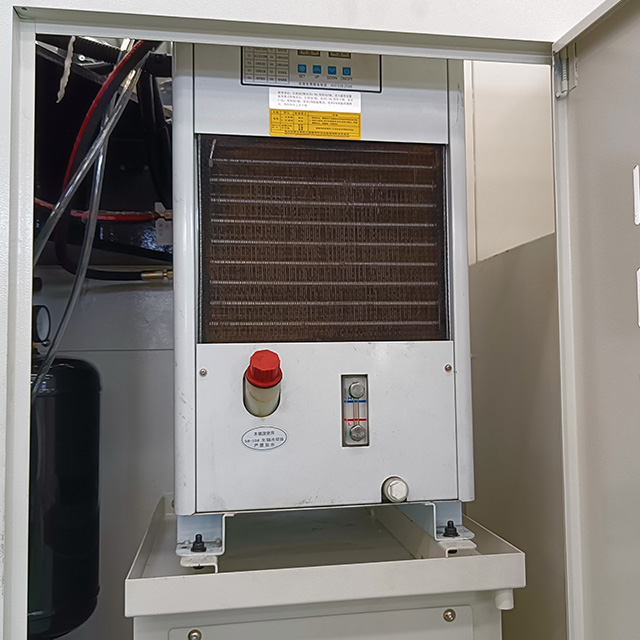

Spindle oil cooler
Coolant through spindle(CTS)
Workpiece measuring probe
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5- axis
Electrical Cabinet Air Conditioning(AC)
Tool setting probe
Item Model | Unit | VMC850 |
Size of worktable | mm | 1000*500 |
T-shaped groove for table | mm | 5-18*102 |
Maximum load on table | kg | 400 |
X/Y/Z rail width | mm | 35/35/35 |
X/Y/Z ball screw specification | mm | 3616/3616/3616 |
X/Y/Z Axis stroke | mm | 800*500*500 |
X/Y/Z motor torque | NM | 15/15/22(Brake) |
Spindle face to table position | mm | 110-610 |
Distance from Spindle Center to column | mm | 524 |
Cutting feed rate | mm/min | 1-8000 |
X/Y/Z axis fast feed | m/min | 48/48/36 |
Spindle end taper/diameter | mm | BT40-150 |
Spindle motor power | kw | 7.5 |
Maximum spindle speed | rpm | 8000/10000/12000 |

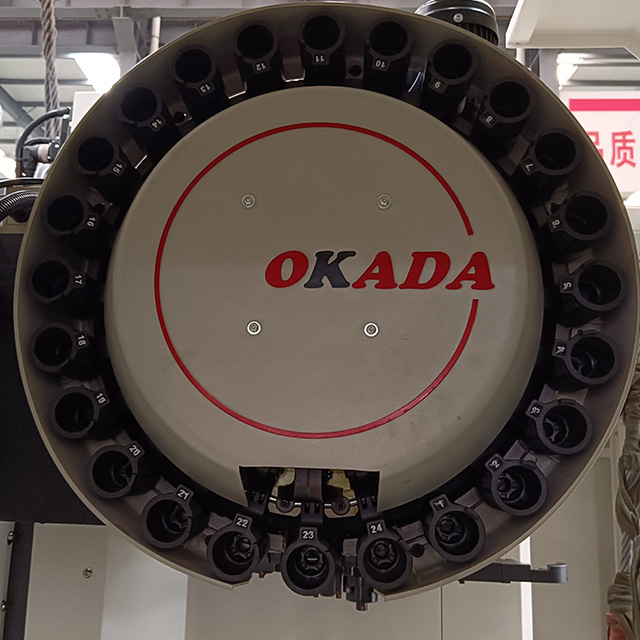

Form of Tool Bank | - | Disc |
The capacity of knife storage | tools | 24 |
Maximum tool diameter/weight | mm/kg | 78/120/8 |
Tool change time | sec | 2.5 |
Positioning accuracy | mm | 0.008 |
Repeat positioning accuracy | mm | 0.005 |
The smallest unit of positioning | mm | 0.005 |
Weight of machine tool | kg | 5100 |
External dimensions | mm | 2800*2350*2650 |
