VMC845 3-Axis CNC Milling Machine Optional 4-axis/5-axis Chinese Manufacturer Machine Tool

Optional Configuration:

• SIEMENS/FANUC/MISTUBISHI/GSK/KND Control System;

• Spindle speed 10000/12000rpm;

• 20 Bar CTS;

• 4-Axis or 5-Axis;

• Tool Setting and Workpiece Measuring probe;

• Chain type chip conveyor / Screw type chip conveyor;

• Other customized services.

• Item Model	Unit	VMC845

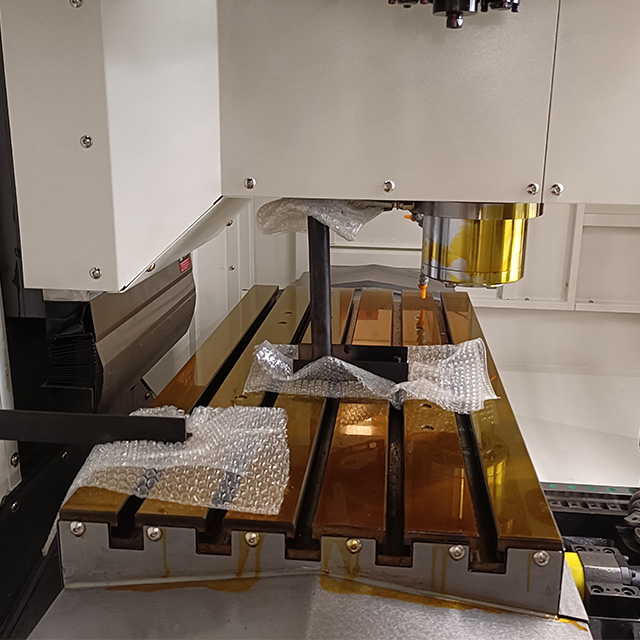

  Size of worktable	mm	900*450
  T-shaped groove for table	mm	3-18-100
  Maximum load on table	kg	300
  X/Y/Z rail width	mm	35/35/35

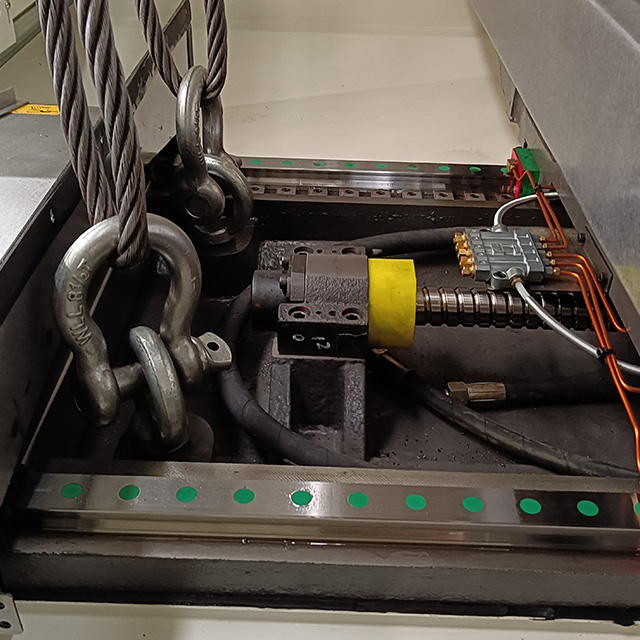

  X/Y/Z ball screw specification	mm	3016/3016/3016
  X/Y/Z Axis stroke	mm	800*500*500
  X/Y/Z motor torque	NM	7/6/15(Contracting brake)
  Spindle face to table position	mm	100-600
  Distance from Spindle Center to column	mm	480.
  Cutting feed rate	mm/min	1-8000
  X/Y/Z axis fast feed	m/min	48/48/48
  Spindle end taper/diameter	mm	BT40-120
  Spindle motor power	kw	5.5
  Maximum spindle speed	rpm	8000/10000/12000

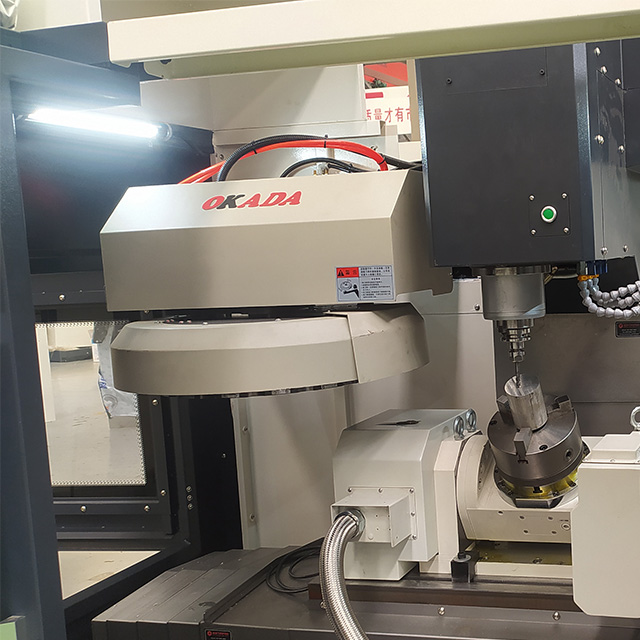

  Form of Tool Bank	-	Hat/Disc
  The capacity of knife storage	tools	16
  Maximum tool diameter/weight	mm/kg	78/90/8
  Tool change time	sec	2.5
  Positioning accuracy	mm	0.008
  Repeat positioning accuracy	mm	0.005
  The smallest unit of positioning	mm	0.005
  Weight of machine tool	kg	4000
  External dimensions	mm	2300*2000*2550
