Vertical Machining Center VMC650
NO.1 MACHINERY
8457101000
Optional configuration
Siemens,FANUC,Mitsubishi,GSK,KND
spindle RPM 10000 Timingbelt /12000 Direct drive
Spindle oil cooler
Coolant through spindle(CTS)
Workpiece measuring probe
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5- axis
Electrical Cabinet Air Conditioning(AC)
Tool setting probe
Item Model | Unit | VMC650 |
Size of worktable | mm | 900*450 |
T-shaped groove for table | mm | 3-18-100 |
Maximum load on table | kg | 300 |
X/Y/Z rail width | mm | 35/35/35 |

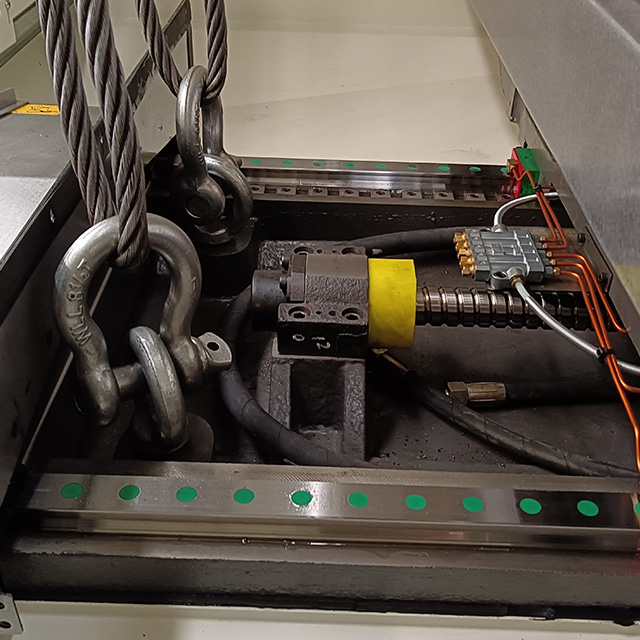

X/Y/Z ball screw specification | mm | 3016/3016/3016 |
X/Y/Z Axis stroke | mm | 800*500*500 |
X/Y/Z motor torque | NM | 7/6/15(Brake) |
Spindle face to table position | mm | 100-600 |
Distance from Spindle Center to column | mm | 480 |
Cutting feed rate | mm/min | 1-8000 |
X/Y/Z axis fast feed | m/min | 48/48/48 |
Spindle end taper/diameter | mm | BT40-120 |
Spindle motor power | kw | 5.5 |
Maximum spindle speed | rpm | 8000/10000/12000 |
Form of Tool Bank | - | Hat/Disc |
The capacity of knife storage | tools | 16 |
Maximum tool diameter/weight | mm/kg | 78/90/8 |
Tool change time | sec | 2.5 |
Positioning accuracy | mm | 0.008 |
Repeat positioning accuracy | mm | 0.005 |
The smallest unit of positioning | mm | 0.005 |
Weight of machine tool | kg | 4000 |
External dimensions | mm | 2300*2000*2550 |
